Xylem WQL-Cond CONDUCTIVITY DATALOGGERS User Manual
Page 7

WQL-Cond
Overview
103
ba75822e01
03/2011
Fig. 1-1

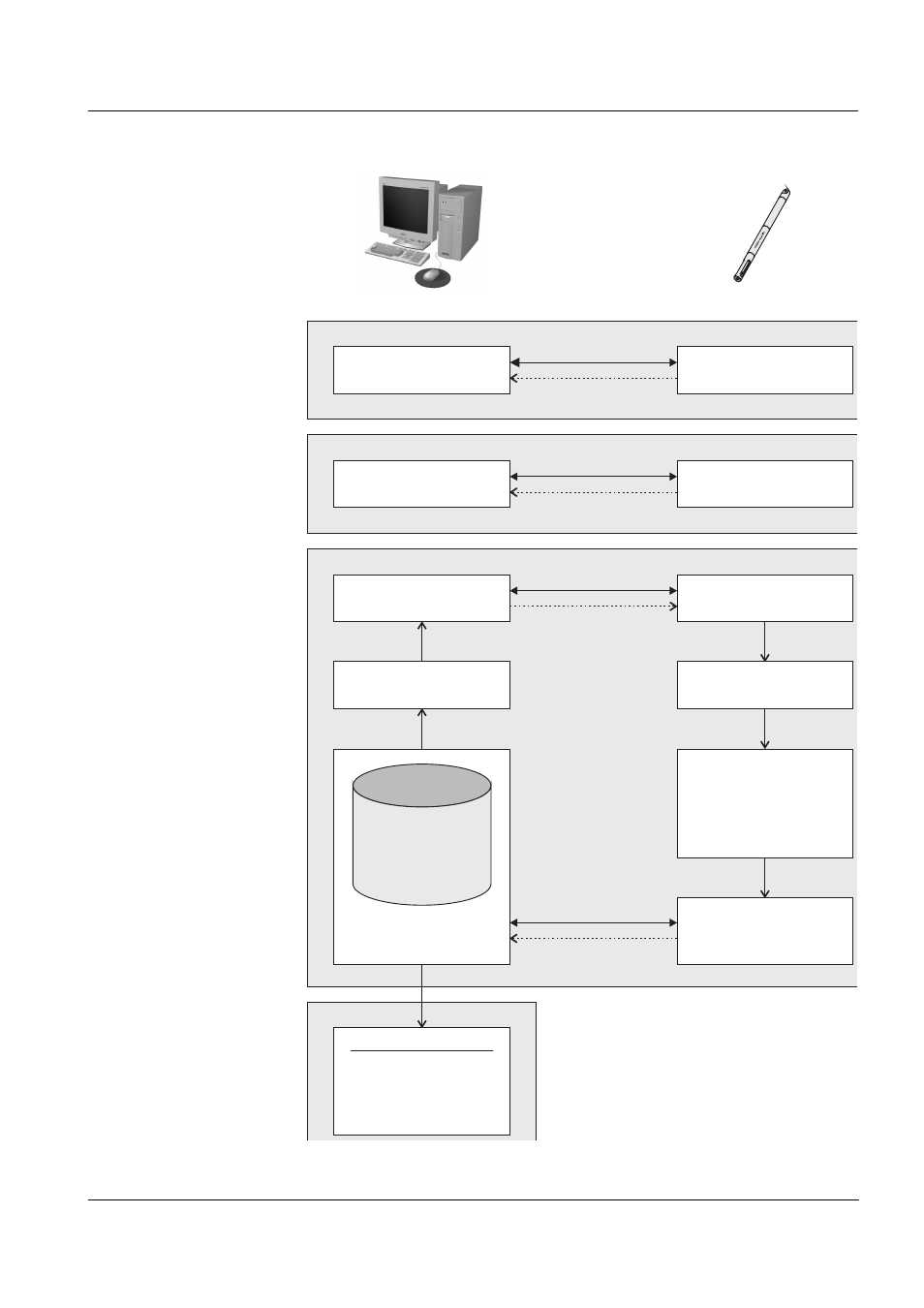

Overview of the communication of the logger and PC program
Logger
Carry out logging job
Set up logging job
Logging
(chapter 6)
Processing the
measurement
data
(chapter 7)
Calibrate in
standard solution
Stop
(e.g. logging job
completed)
(Log)
Measurement dataset 1
Measurement dataset 2
Measurement dataset 3
...
Measurement dataset 1
Measurement dataset 2
Measurement dataset 3
...
Measurement dataset n
Connect
Connect
Connect
Connect
Calibration record
Current values
(real time)
Parameterize,
send
Read in completed
logging job
PC + WQL-Log
Calibrate
Calibrating
(chapter 4)
Measure directly
Measuring
(chapter 5)
Measure
Stop communication
with WQL-Log
Clear the
logger memory
Measurement data
- Query
- Display
- Export (*.csv)
Save in database
