Email Retry Delay
Menus → System → Communications → Email Retry Delay
Configure the Email Retry Delay for the time interval that emails should be retrans-
mitted after the initial alarm email is sent. The initial alarm email is sent immediately
after the general alarm hold off time or after the aux hold off time. Emails will be
retransmitted until one of the front panel softkeys is pressed, regardless if the alarm
condition still exists.
Notes:
- On a network, emails are retransmitted according to the slave retry delay
configuration of the slave in alarm and not the master’s email retry delay
configuration. Please note, a slave Email Retry Delay menu will display (Not
available) because of its slave configuration; however, this feature is available
and has a default value of 15 minutes that can be configured by the user.
- The Retry Delay should be configured at intervals ≥ 15 minutes.
- AquaManager alarm emails are retransmitted based on 5X00 slave(s) and
master email retry delay configuration.

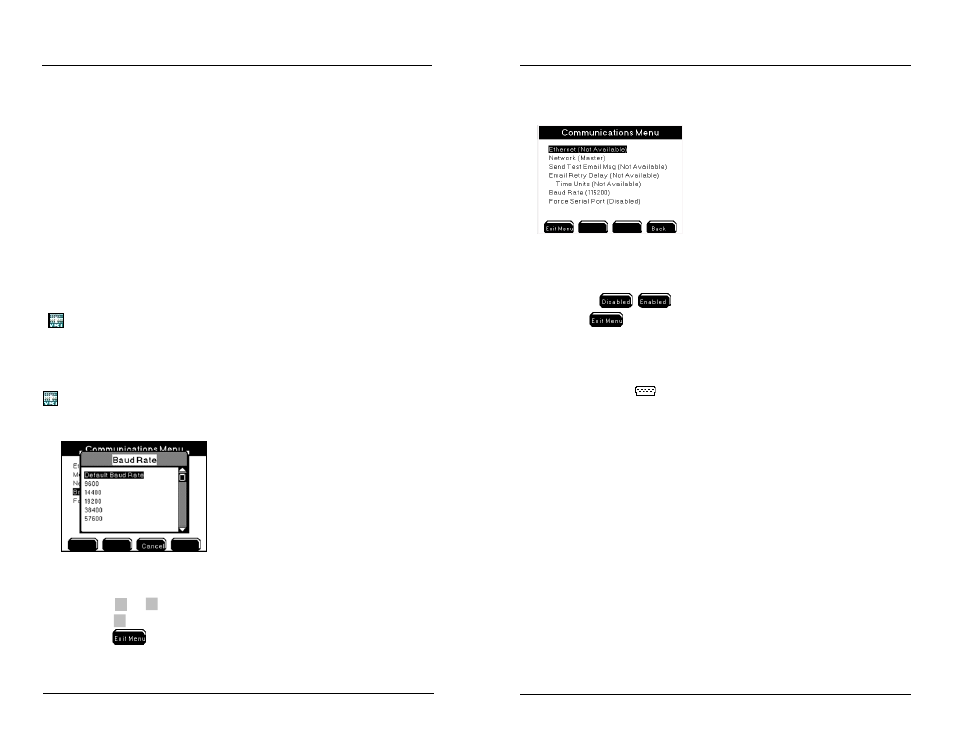

Baud Rate RS232
Menus → System → Communications → Baud Rate
Configure the Baud rate (for RS232 connections only) in the 5X00 to match the
baud rate configured in AquaManager. Use the default rate of 115200 for fastest
communication speed.
1. Enter Network menu
Menus → System → Communications → Network →Baud Rate
2. Press ▲ or ▼ to scroll and highlight a selection.
3. Press  to confirm selection.
4. Press to save configuration and return to Run Screen.
Force Serial Port
Menus → System → Communications → Force Serial Port
Configuring the 5X00
Enable the Force Serial Port when the 5X00 is communicating via RS232 (direct)
to a PC and when the 5X00 has a serial to ethernet device.
1. Wire RS232 connection - page 68.
2. Enter Communications menu
Menus → System → Communications → Force Serial Port
3. Use the softkeys to configure off or on.
4. Press to save configuration and return to Run Screen.
Notes:
- RS232 connection is required to upload firmware using the Firmware Up-
dater.
- The RS232 icon blinks at the Run Screen when in Force Serial Port mode.
Non-Networked (Stand Alone) 5X00s
Non-networked (stand alone) 5X00s must have the termination relay enabled. In
addition, non-networked (stand alone) 5X00s must be configured as a master in
the System Communication menu with no slave nodes enabled.
Configure AUX
Menus → System → Configure Aux 1-6
The 5X00 has six auxiliary (Aux) inputs. Aux inputs 1, 2, 3, 4, 5, and 6 can be con-
figured for digital or analog ( 0-1V,DC 0-5VDC, or 4-20 mA) inputs. In addition,
Aux 3, 4, 5, and 6 can be configured with a temperature sensor. Configure suffix,
minimum (Min), maximum (Max), Input Scale Min, Input Scale Max and display
format menus for non temperature analog inputs. To configure set points, control,
alarms and relays see specific sensor set up menus. See Aux digital sensor set up -
page 147. See Aux analog (non temperature) sensor set up - page 149. See Aux
and ODO temperature sensor set up - page 150.
