Menus
5X00 firmware is structured using menus that enable you to easily configure and
view system status, messages, and logs. The menu structure and screen formats are
very intuitive. Menus are structured in hierarchical fashion. See Appendix 3 “Menu

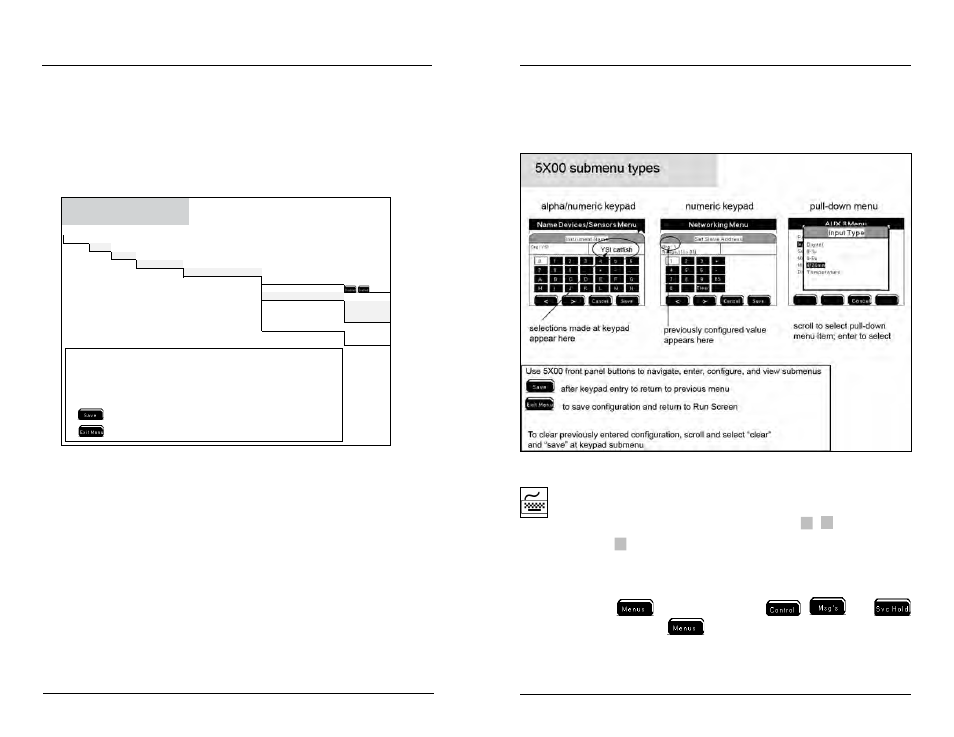

Maps” - beginning on page 205 . Example - figure 4.3 illustrates the menu path to
configure data logging interval.
Run�Screen
Menus
System
Data�Logging
Data�Logging
Data�Logging�(Enabled)�(1�Hour)
Logging�Interval�

Time�units
T
Run�Screen���Menus���System�Menu� ��Data�Logging�Logging�Interval
Menu Hierarchy
after numeric keypad entry and return to “Data Logging” menu
to save configuration and return to Run Screen
7)
8)
Steps to configure data logging interval:
1) select “Menus” at Run Screen
2) select “System” at Main menu
3) select “Data Logging” at System menu
4) select “Data Logging” at Data Logging menu
5) select “Logging Interval” at Data Logging menu
6) input logging interval (1-255) at  (numeric keypad)
Figure 4.3
Configuring the 5X00
Submenu Screen Types
The 5X00 includes numeric, alpha/numeric, and pull-down submenus - Figure 4.4.
See Front panel keys page 75 , to navigate, enter, configure, and view submenus.
Figure 4.4
This symbol indicates that alpha/numeric or numeric keypad entry is required.
This symbol is used in the menu map appendix starting on page 205 and in
directions for menu configuration (this chapter). Use
▲ ▼
front panel keys
to scroll and

to select entries.
The remainder of this chapter provides information on 5X00 menus and submenus
and their function. Menu structure and information is provided in hierarchical order
starting with the
menu. Information on , , and
menus is provided after the menu sections.
Configuring the 5X00
