Fault Display
The toolbox can display two types of fault lists.
•
Fault History list displays a list of faults that have cumulated since power was
applied to the drive (see the section, Fault History).
•
Active Fault list displays faults that are currently active in the drive (see the
section, Active Fault).
The fault displays in red.
Double-click on the fault to
display the Active Fault list.
The Status bar, located at the bottom of the
screen, indicates that a fault has occurred.

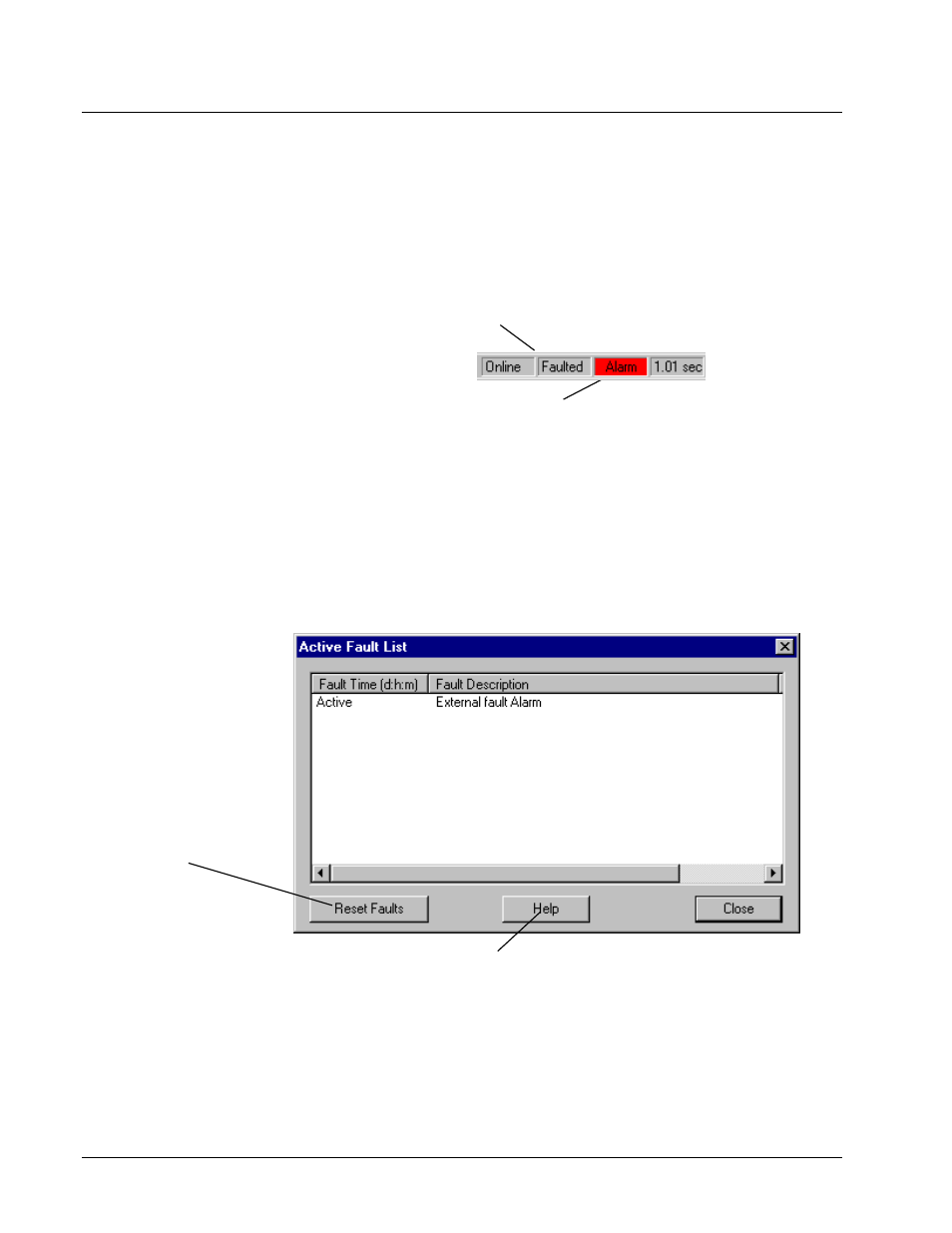

Active Fault
À To display the Active Fault list
w
From the View menu, choose Active Faults .
– Or –
w
Double-click on the Alarm on the Status bar (see previous section, Fault
Display). The following dialog box displays.
Click here to reset the
fault list.
Check here to display a
description of the selected fault.
