Chapter 3 Using the Toolbox GEH-6405A Toolbox for an AVDV Series Drive
To find the cause of an error,
double-click on the error
message. Log View (bottom of window) displays status messages for toolbox activities, such
as file imports, validations, builds, or errors.

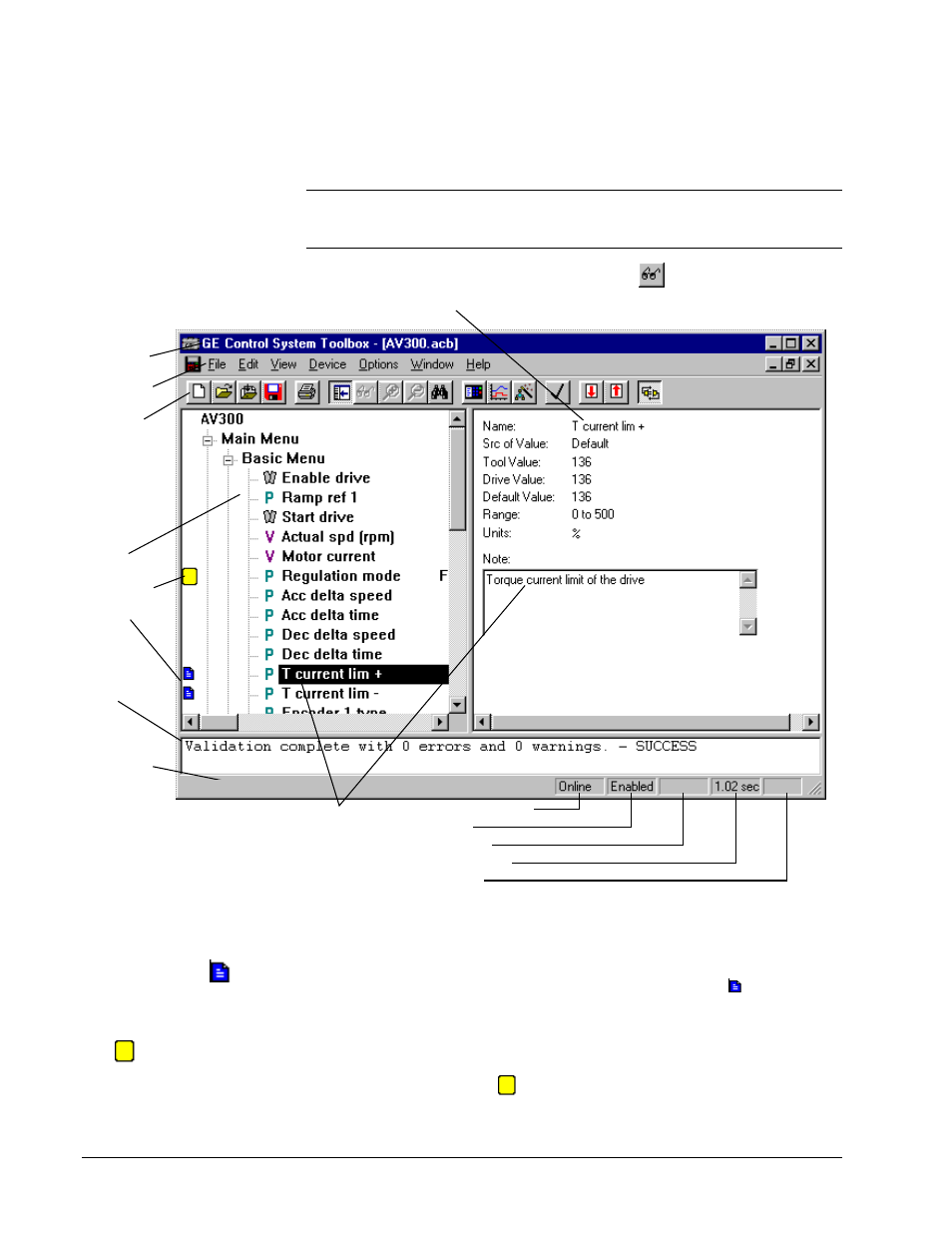

Note The following screen represent a basic toolbox Work Area format. Menu
commands, toolbar button, and Outline View items will vary with the product
installed.
Title bar
Menu bar
Toolbar
Outline
View
Bookmark
Notes
Log
View
From the Outline View, click on an
item with a Note icon. The note
displays in the Summary View .
Status bar
displays
toolbox
information
on the right
and drive
information
on the left
side.
Summary View display details of the item selected
in the Outline View. For example, the parameter
T
current Lim+ is shown below.
Communication status
Drive status
Fault indication
Diagram scan rate
Read only file
Click to display the Detached
Summary View. This view displays
details of Diagram (an overall picture
of the block diagrams).
For Help, Press F1
Status Bar can be toggled on and off from the View menu. When online, the left
side displays a description of various toolbox commands or notes entered by the
user. The right-hand side displays the drive status of the current drive.
Double click on the Note
icon to edit the note.
Notes can be created for most items in the drive. Choose an item, then choose Edit
and Modify. Enter a note for the item and click OK. The Note icon displays
beside the item in the Outline View (shown above).
Bookmark items display this
icon .
Bookmark enables you to mark major items in the Outline View and then return to
them easily using the Bookmark commands in the Edit menu. The Toggle Bookmark
command turns the icon on and off. The Goto Next Bookmark command jumps to
the next item marked with the .
