81

9.2

DALI fade time and fade rate

The fade time can be set to any of 16 different steps (0 to 15) and
denotes the fade time to go from one scene to another (room lighting
states). The fade rate, which can also be set to any of 16 settings,
is the number of fade steps per second and acts on the speed with
which the lighting is faded up or down manually.

Setting

FADE TIME (s)

FADE RATE (steps/s)

0

<0.7

Not possible

1

0.7

357.8

2

1.0

253.0

3

1.4

178.9

4

2.0

126.5

5

2.8

89.5

6

4.0

63.3

7

5.7

44.7

8

8.0

31.6

9

11.3

22.4

10

16.0

15.8

11

22.6

11.2

12

32.0

7.9

13

45.3

5.6

14

64.0

3.9

15

90.5

2.8

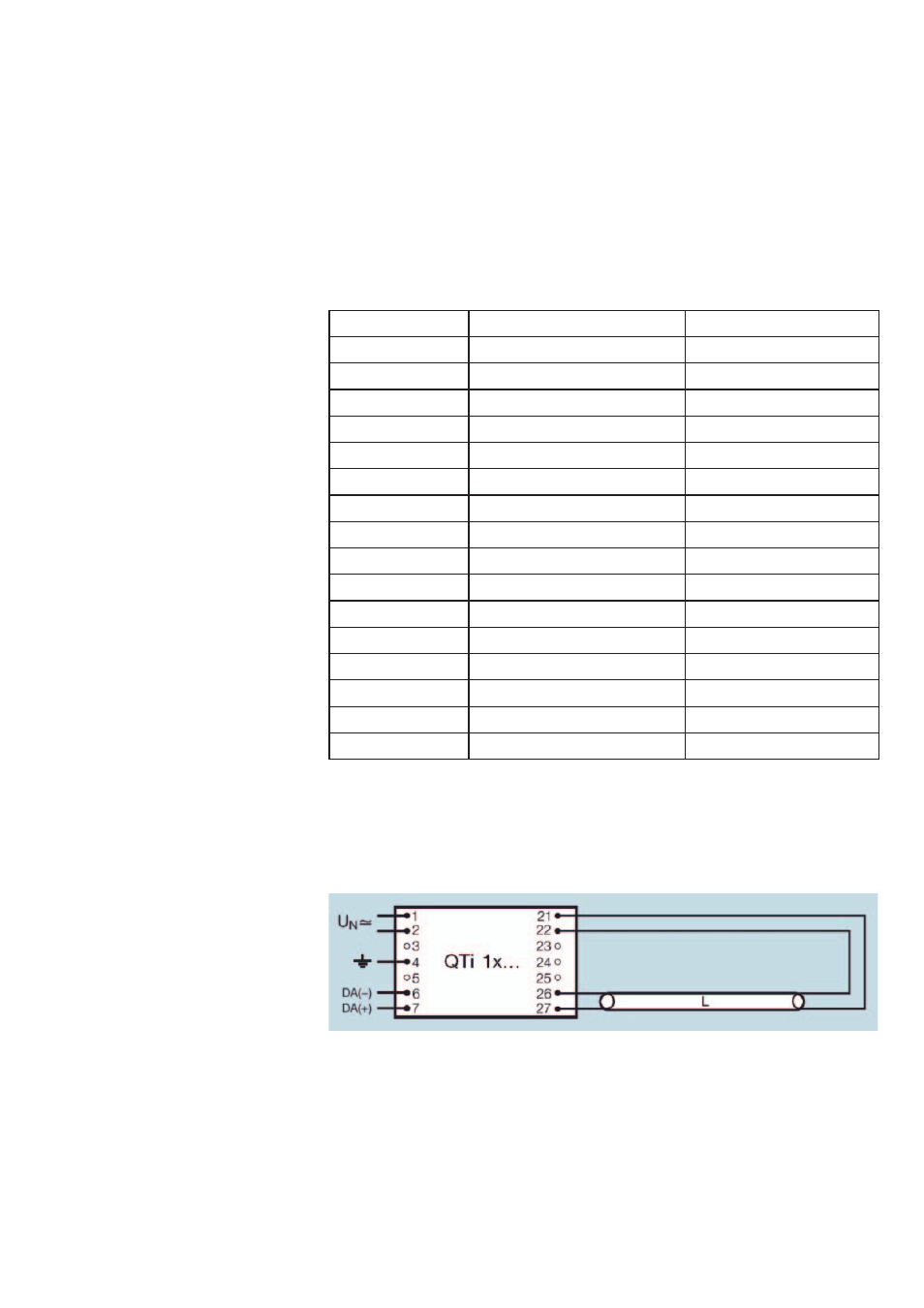

Table 9: Fade time and fade rate of dimmable OSRAM DALI control-
lers

9.3 Lamp

wiring

Figure

52: QTi DALI/DIM 1x: lines 26 and 27 max. length of 1 m
