25

AT86RF401

1424D–RKE–09/02

Indirect Program Addressing,
IJMP and ICALL

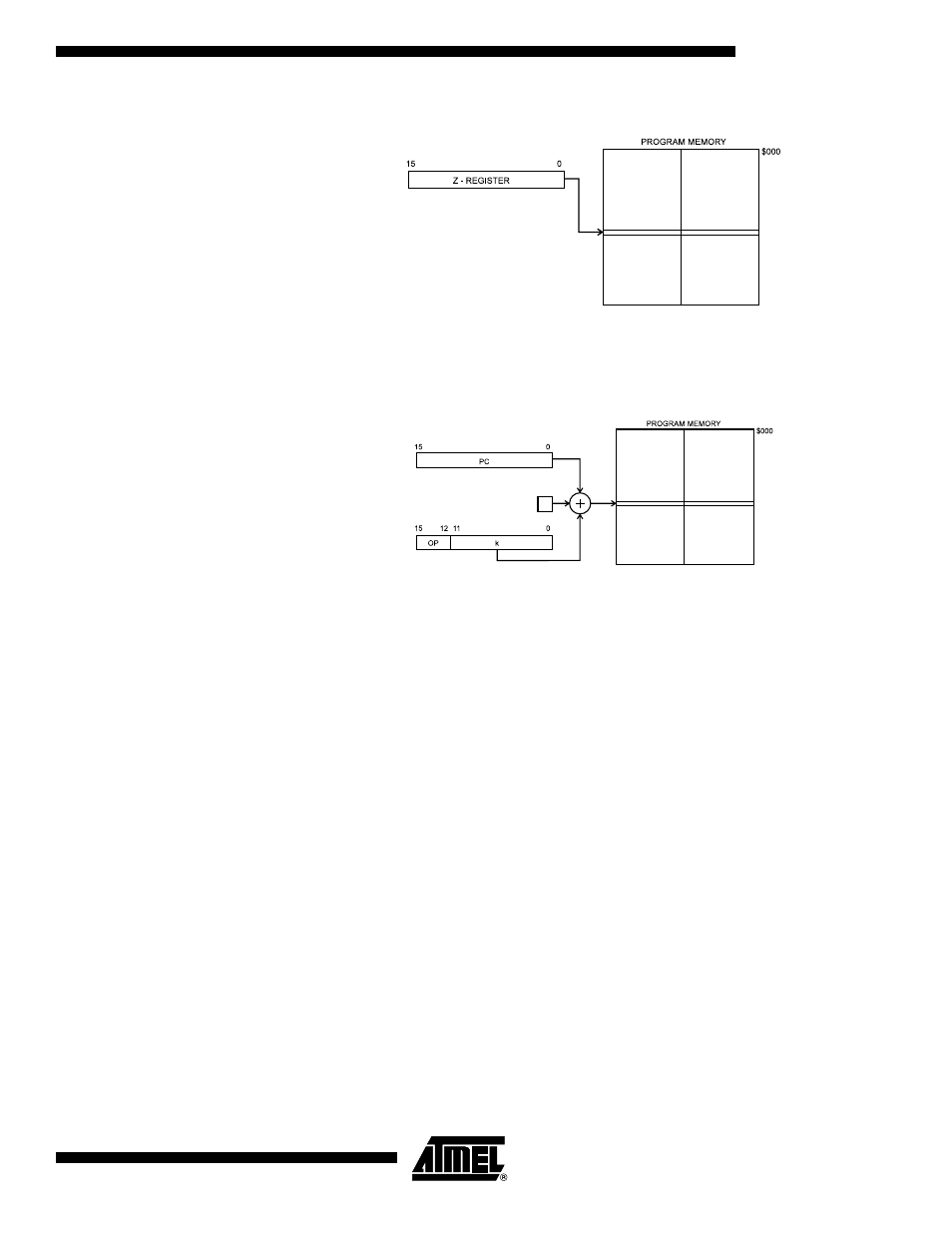

Figure 20. Indirect Program Memory Addressing

Program execution continues at address contained by the Z register (i.e., the PC is
loaded with the contents of the Z register).

Relative Program Addressing,
RJMP and RCALL

Figure 21. Relative Program Memory Addressing

Program execution continues at address PC + k + 1. The relative address k is from

−

2048 to 2047.

$3FF

$3FF

1
