Data Indirect with

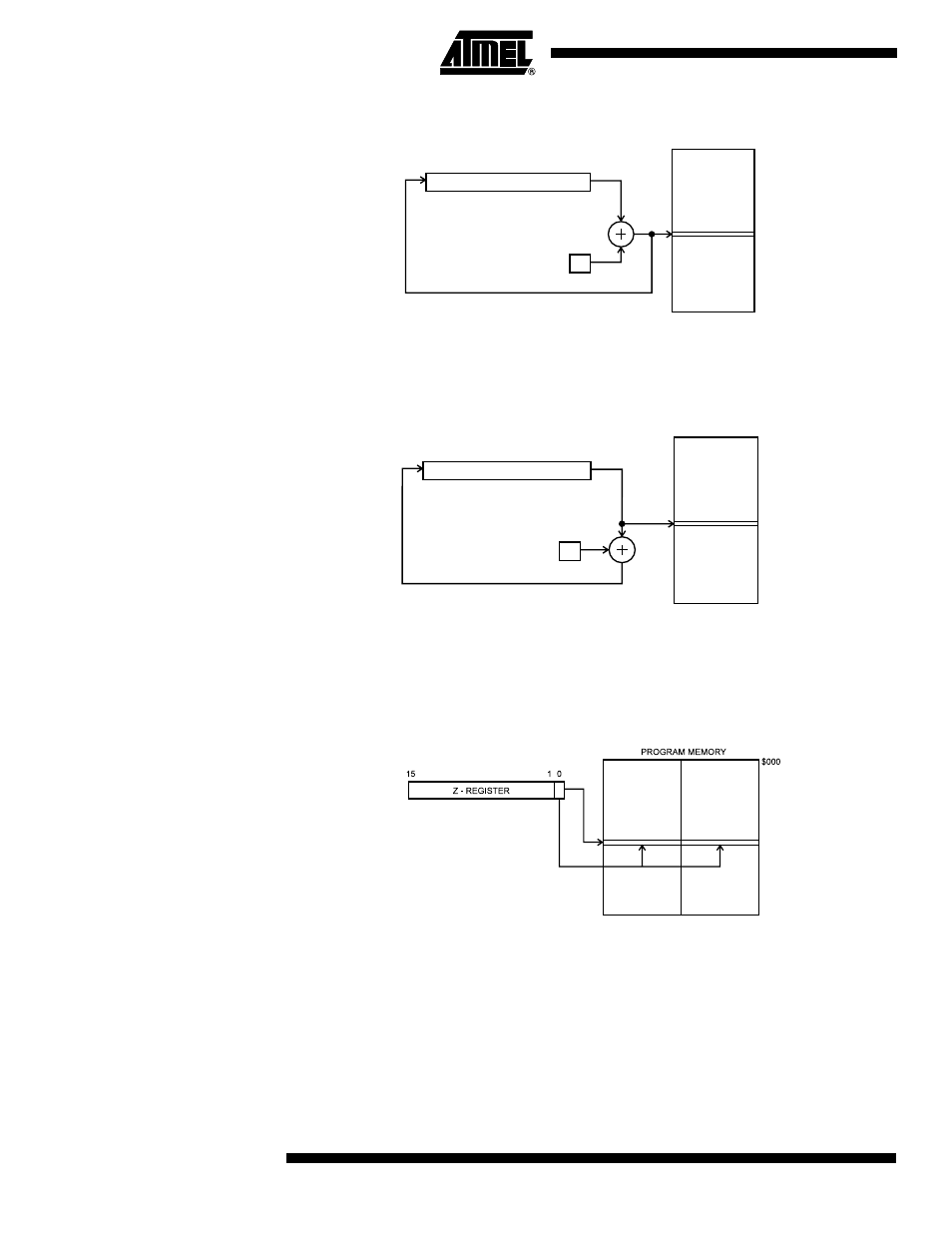

Pre-decrement Figure 17. Data Indirect Addressing with Pre-decrement
The X, Y or Z register is decremented before the operation. Operand address is the
decremented contents of the X, Y or Z register.
Data Indirect with
Post-increment Figure 18. Data Indirect Addressing with Post-increment
The X, Y or Z register is incremented after the operation. Operand address is the con-
tent of the X, Y or Z register prior to incrementing.
Constant Addressing Using the LPM Instruction
Figure 19. Code Memory Constant Addressing
Constant byte address is specified by the Z register contents. The 10 MSBs select word
address (0–1K). For LPM, the LSB selects low byte if cleared (LSB = 0) or high byte if
set (LSB = 1).
Data Space
$0000
$DF
X, Y OR Z - REGISTER
0 15
-1
Data Space
$0000
$DF
X, Y OR Z - REGISTER
0 15
1
$3FF
