VEGACOM 557 Profibus DP 9
1.4 Type plate and order code
Type plate
Before mounting and electrical connection,
please check if you are using the correct
version of VEGACOM 557. Please note the
type plate, located below the multiple plug.
The type plate contains important data re-
quired for electrical connection. The configu-
ration and the components of the type plate
are explained in the illustration below .
Note:
The serial number of your VEGACOM is on
the rear of the plug connector .

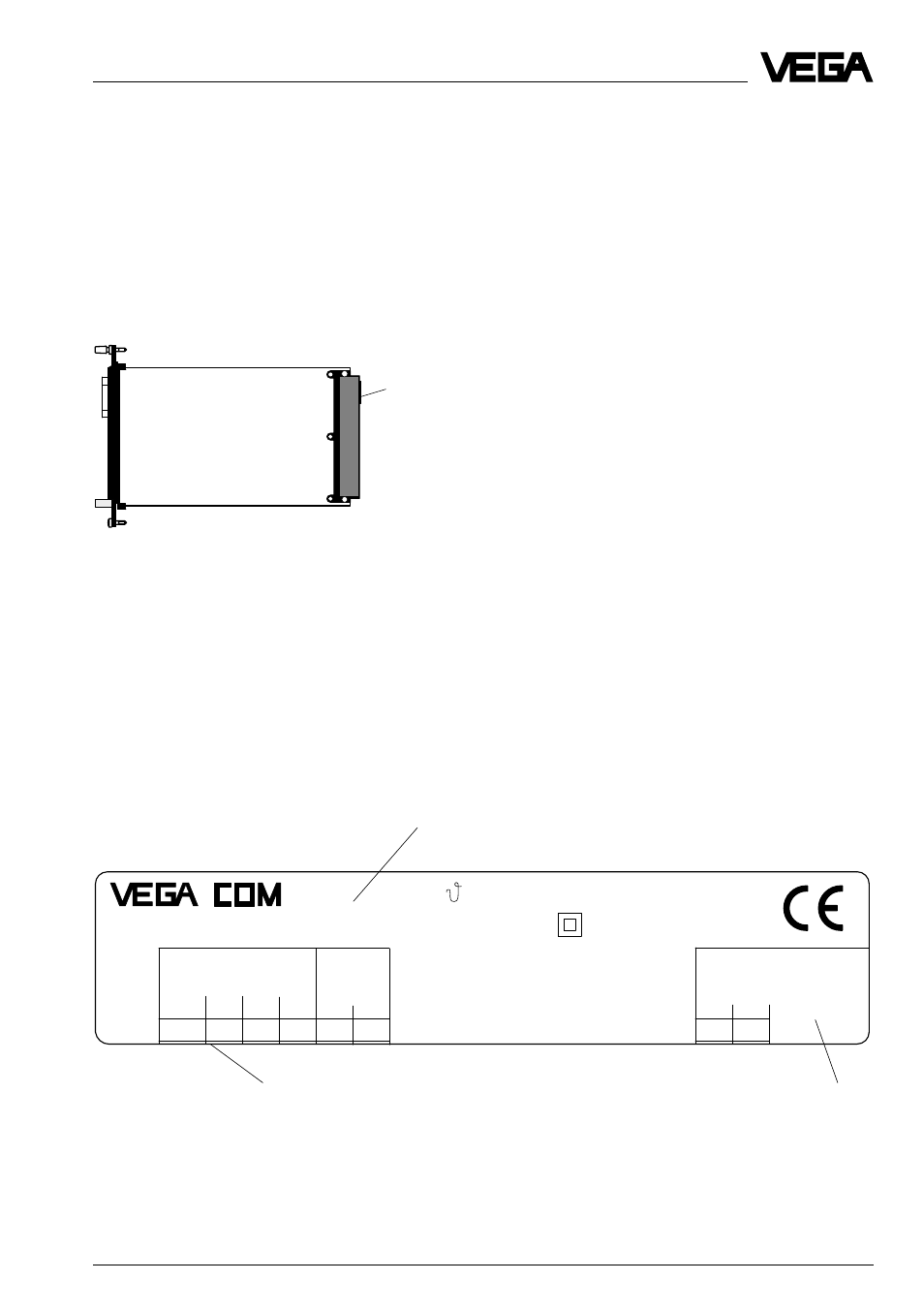

1 Version: Profibus DP
2 Supply voltage
3 Terminal assignments Profibus DP interface (RS 485)
Product description
Type plate on
multiple plug
®
Profibus DP
RS 485
d32 z28 d30
N- L+
557
z2 d2
/DATA
IP 40 (front)
a: -20 ... +60°C
power supply
20 ... 53V AC
6 VA
20 ... 72 V DC
z22 z24
- +
DISBUS
DATA +5V
d28
Insp.
3 2
1
GND
