Page 20: Off on off off off off off
20
VEGACOM 557 Profibus DP
DIL-switch block
(Additional board)
ON

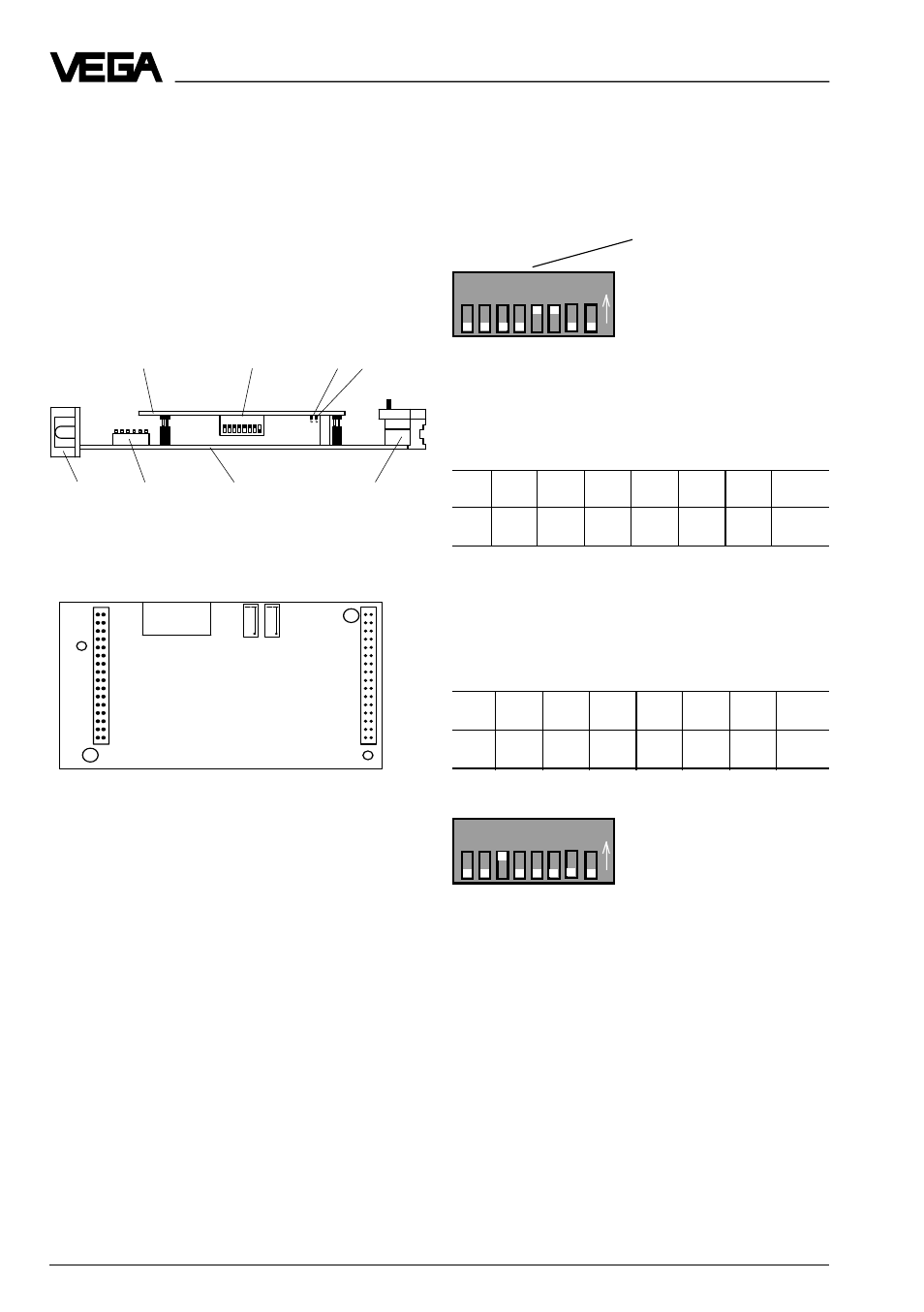

3.2 Adjustment of the Profibus DP
interface
A 8-pole DIL switch block as well as two hook
switches for configuration of the Profibus DP
interface to the DCS or the PLC are located
on the additional board.
DIL switch block on the additional board for selecting
the Slave address
1
2
3
4
5
6
7
8
Factory setting:
Slave address = 12
Switch adjustments on VEGACOM 557
ON
1
2
3
4
5
6
7
8
Slave address = 32
Bottom view of the additional board
L R
L R
1
2
1 2 3 4 5 6 7
8
Multiple plug
Basic board
Bottom view of VEGACOM 557
DIL switch
basic board
Front
plate
DIL switch blocks
additional board
Addi-
tional
board
2 1
1
2 3
Hook switches
additional
board
DIL switch additional board
The DIL switch is used to select the slave
address of VEGACOM 557 on the Profibus
DP.
Profibus Slave address of VEGACOM 557
SW 8 SW 7 SW 6 SW 5 SW 4 SW 3 SW 2 SW 1
off
2
6
2
5
2
4
2
3
2
2
2
1
2
0
SW 8 is reserved and must be set to position
“off“. Permitted address range 0 … 126.
Example:
Address 32 corresponds:
SW 8 SW 7 SW 6 SW 5 SW 4 SW 3 SW 2 SW 1
off
off
on
off
off
off
off
off
