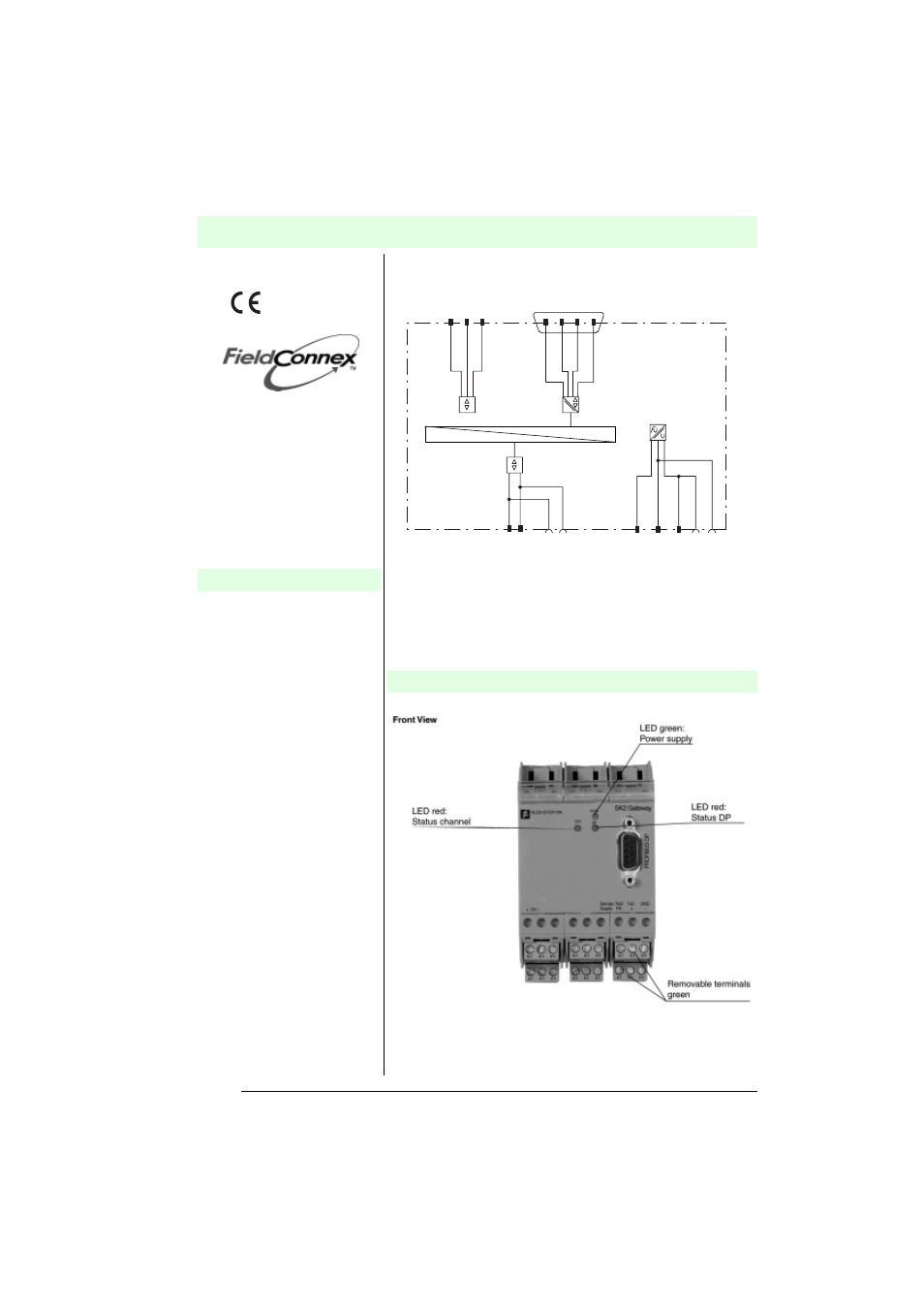

KLD2-GT-DP.1PA Gateway
Power
supply 24 V
Power rail Power rail CH1
PROFIBUS-DP
connection Service
Connection to Power Link
CH
+ FE - + -
RxD TxD GND
3 5 6 8
B R/TxD-P A R/TxD-N
DGND VP
Composition
1-channel gateway without redundancy
• PROFIBUS DP transmission rate up
to 12 MBit/s
• Transparent, need no PROFIBUS
address
• PROFIBUS master independent
• Up to 125 PA devices can be
connected
• No configuration necessary
• Supply via Power Rail
• Removable terminals and Power
Rail
• EMC acc. to NAMUR NE 21
Together with at least one Power-Link,
the Gateway provides a segment cou-
pler for the connection of a
PROFIBUS PA segment to
PROFIBUS DP.
On the PROFIBUS DP site, all transfer
rates up to 12 MBit/s are supported in
accordance with. EN 50170/2.
•
Function
Gateway for PROFIBUS DP/PA segment coupler SK2
