12 VEGACOM 557 Profibus DP
Product description
CE conformity
VEGACOM 557 meets the protective regulations of EMC (89/336/EWG) and NSR
(73/23/EWG). The conformity has been judged acc. to the following standards:
EMC Emission EN 50 081 - 2: 1993
Susceptibility EN 50 082 - 2: 1995
NSR EN 61 010 - 1: 1993
Ambient conditions
Permissible ambient temperature -20°C … +60°C
Storage and transport temperature -20°C … +85°C
Humidity 93 %, T = 40°C acc. to DIN/IEC 68-2-3
Shock 2 … 100 Hz, 0.7 g
Mechanical data
Series module unit for
- carrier BGT 596
- carrier BGT LOG 571
- housing type 505
Dimensions, not mounted W = 25.4 mm (5 TE), H = 128.4 mm, D = 166 mm
Weight approx. 550 g

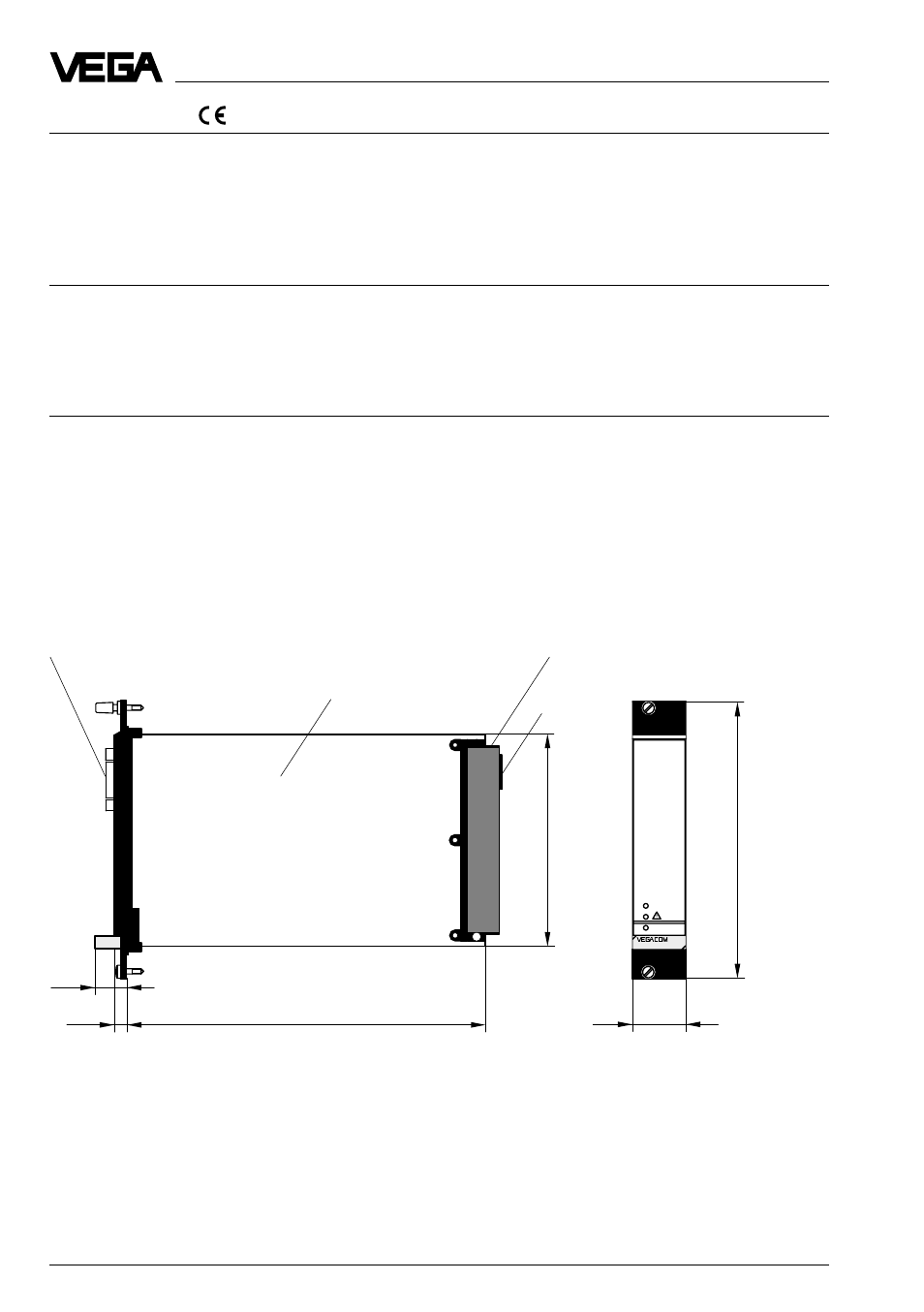

1.6 Dimensions
162 5,5
15
100
on
557
BA
128,4
25,4
5 TE
Multipoint connector
100 x 160 x 1.5
European size
Multiple plug
LOGBUS-
plug
front RS 232C interface (PC)
