Installation Guide
Power Monitoring
E51C2, E51C3
TM

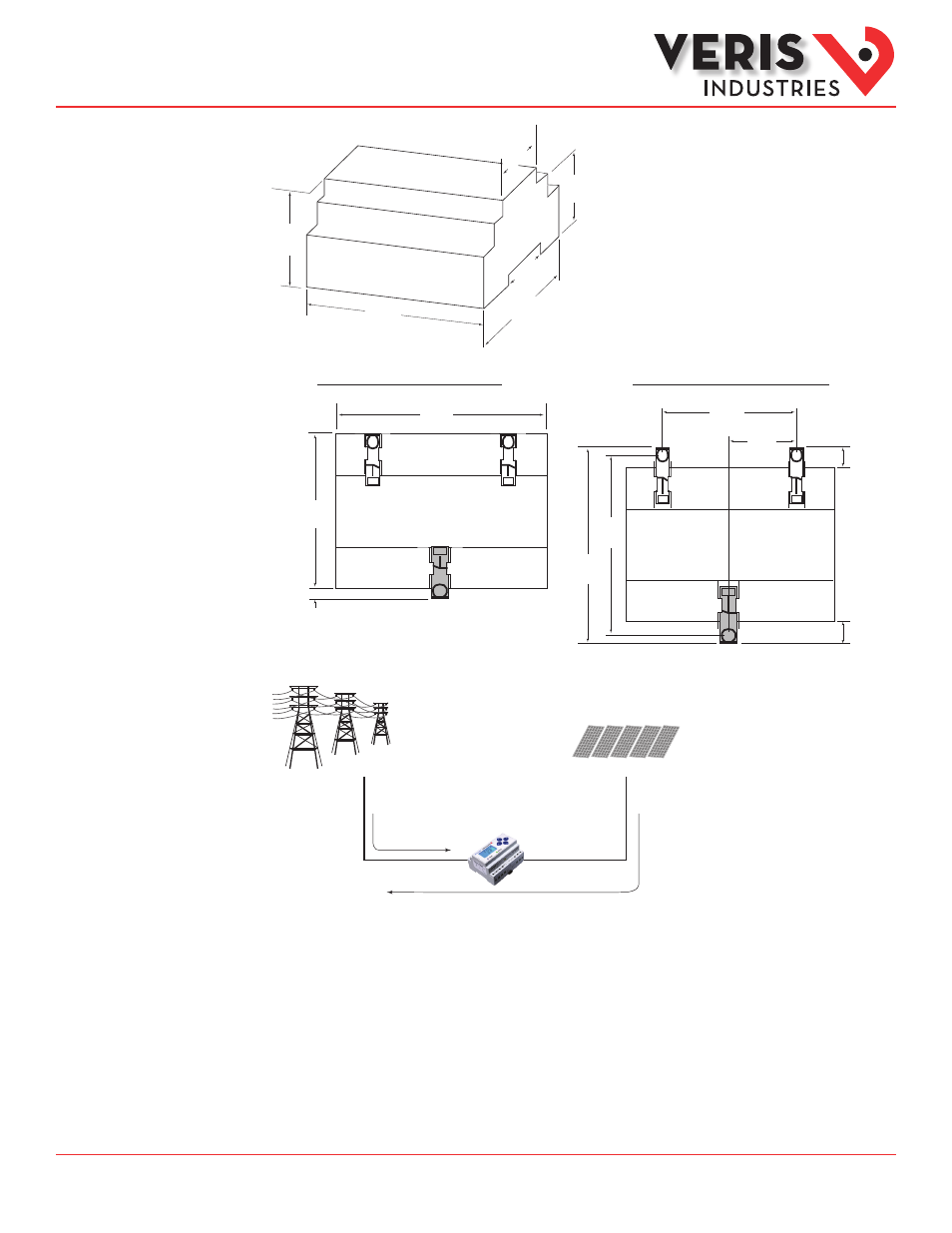

Dimensions
4.2”
(107mm)
3.6”
(91mm)
1.5”
(39mm)
2.3”
(59mm)
1.9”
(48mm)
1.8”
(45mm)
3.6 “
(91 mm)
4.2 “
(107 mm)
0.2 “
(4 mm)
3.9“
(99 mm)
2.4 “
(61 mm)
+ +
+
4.3 “
(109 mm)
1.2 “
(31 mm) 0.3 “
(8 mm)
0.4 “
(10 mm)
Bottom View (DIN Mount Option) Bottom View (Screw Mount Option)
Main Utility Grid Solar Panels
Imported Power
Exported Power
Application Example
