4-1.2-ME Gas sampling and gas conditioning technology 9










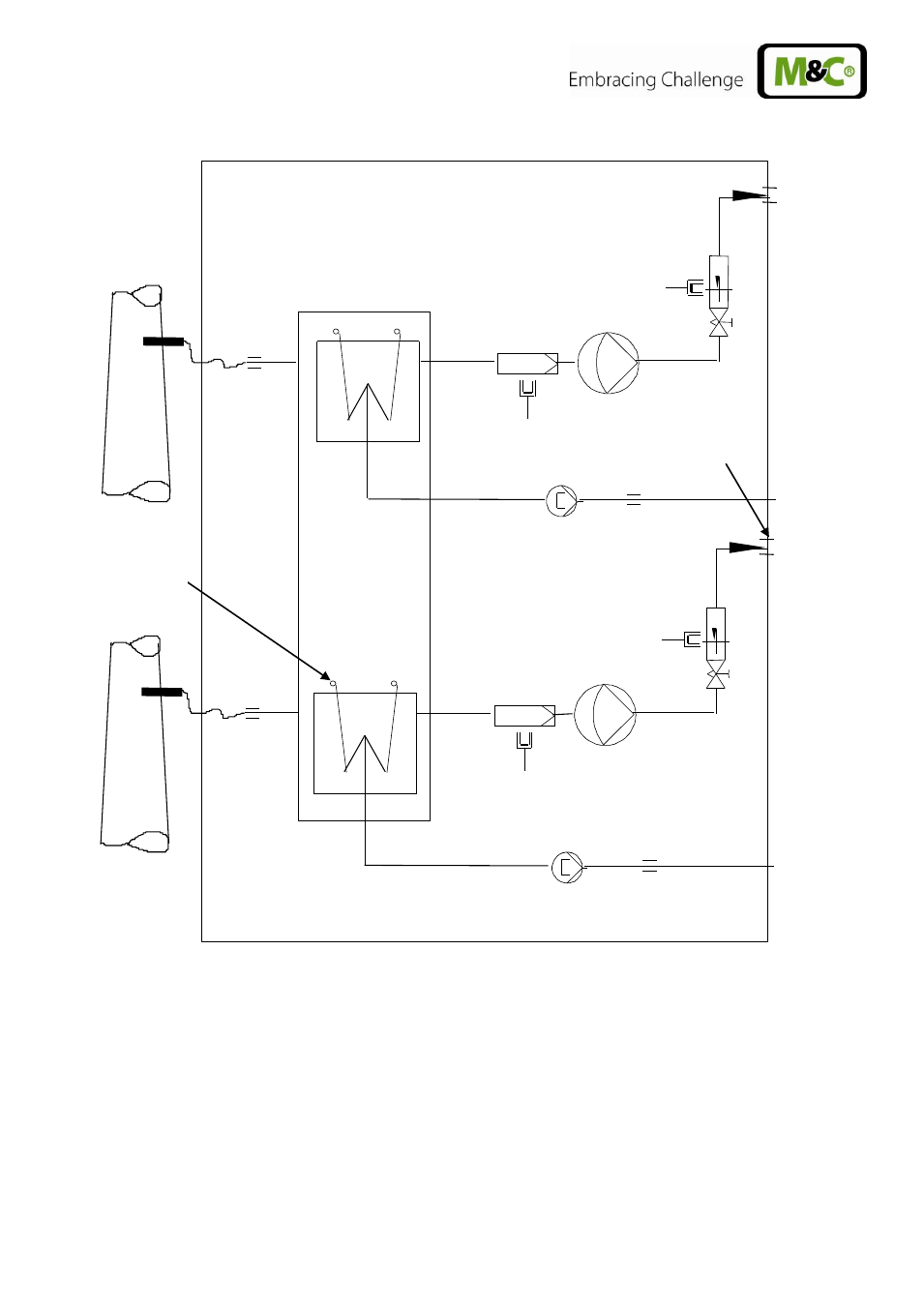

Figure 2 Scheme of gas flow CSS-V2..
 Gas cooler ECM-2
 2 x Front panel filter FPF-2-0,3GF, 0,3µm porosity with integrated liquid alarm
 2 x Sample gas pump N3/5/9 KPE
 2 x Flowmeter FM40 with option flow alarm FM-20mo
 2 x Peristaltic pump SR25.2 for continuous automatic condensate removal
Way of sample gas tubed in PTFE.
Way of condensate tubed in Novopren
® .
For differentiation the way of sample gas 2 is marked with a black o-ring at the sample gas inlet of the
heat exchanger 2 and sample gas outlet 2.
At the heat exchanger sample gas inlet and outlet are marked with arrows.
Marking with
black o-ring
Marking with
black o-ring
