8 Gas sampling and gas conditioning technology 4-1.2-ME
7 APPLICATION
The units CSS-V.. provide completely pre-installed sample gas conditioning for continuous use and
can excellently be integrated into gas analysis systems. Its compact construction means that it takes
up only little space. The CSS-V.. units are ready for use within a few minutes. This, at last, makes the
usual time-consuming procurement of individual components and assembly superfluous.






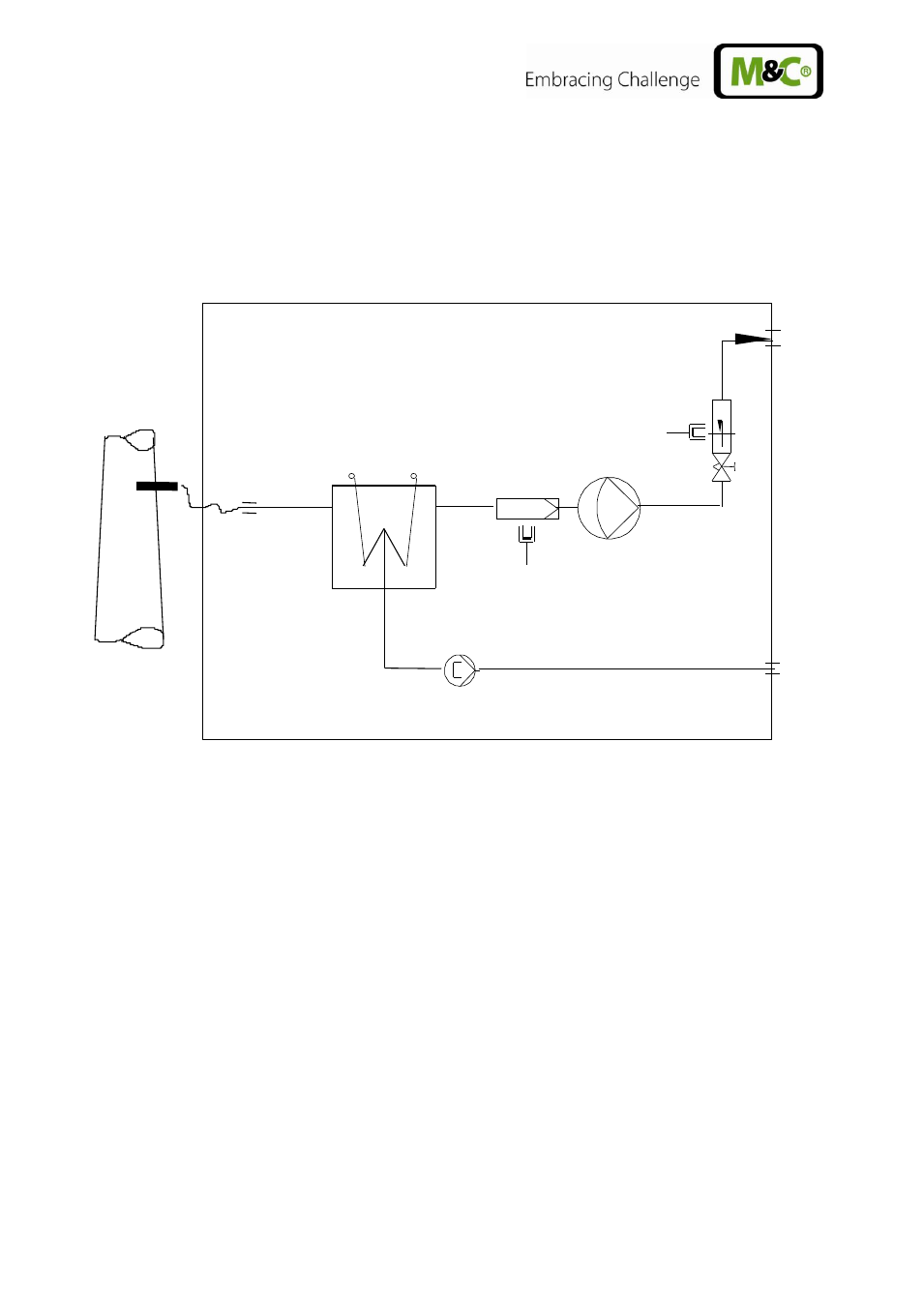

Figure 1 Scheme of gas flow CSS-V1..
 Gas cooler ECM-1
 Front panel filter FPF-2-0,3GF, 0,3µm porosity with integrated liquid alarm
 Sample gas pump N3/5/9 KPE
 Flowmeter FM40 with option flow alarm FM-20mo
 Peristaltic pump SR25.2 for continuous automatic condensate removal
Way of sample gas tubed in PTFE.
Way of condensate tubed in Novopren
® .
At the heat exchanger sample gas inlet and outlet are marked with arrows.
