4-1.2-ME Gas sampling and gas conditioning technology 13
The DN4/6mm hose connections for the sample gas outlet as well as the electrical connections in the
top of the gas conditioning unit can, in dependence on the installation conditions, also be mounted in
the back of the unit very easily.
The ventilation grids in the sidewalls ensure that the equipment is sufficiently ventilated.
A liquid alarm sensor is integrated in the filter FPF-2-0,3GF to protect the downward analysers against
liquid irruptions and to increase the operating safety of the whole system. In case of liquid inrush, the
sample gas pump, if existing, is switched off automatically.
483
287,
5
375,
5
190,
5
35,
5
261,
5
466

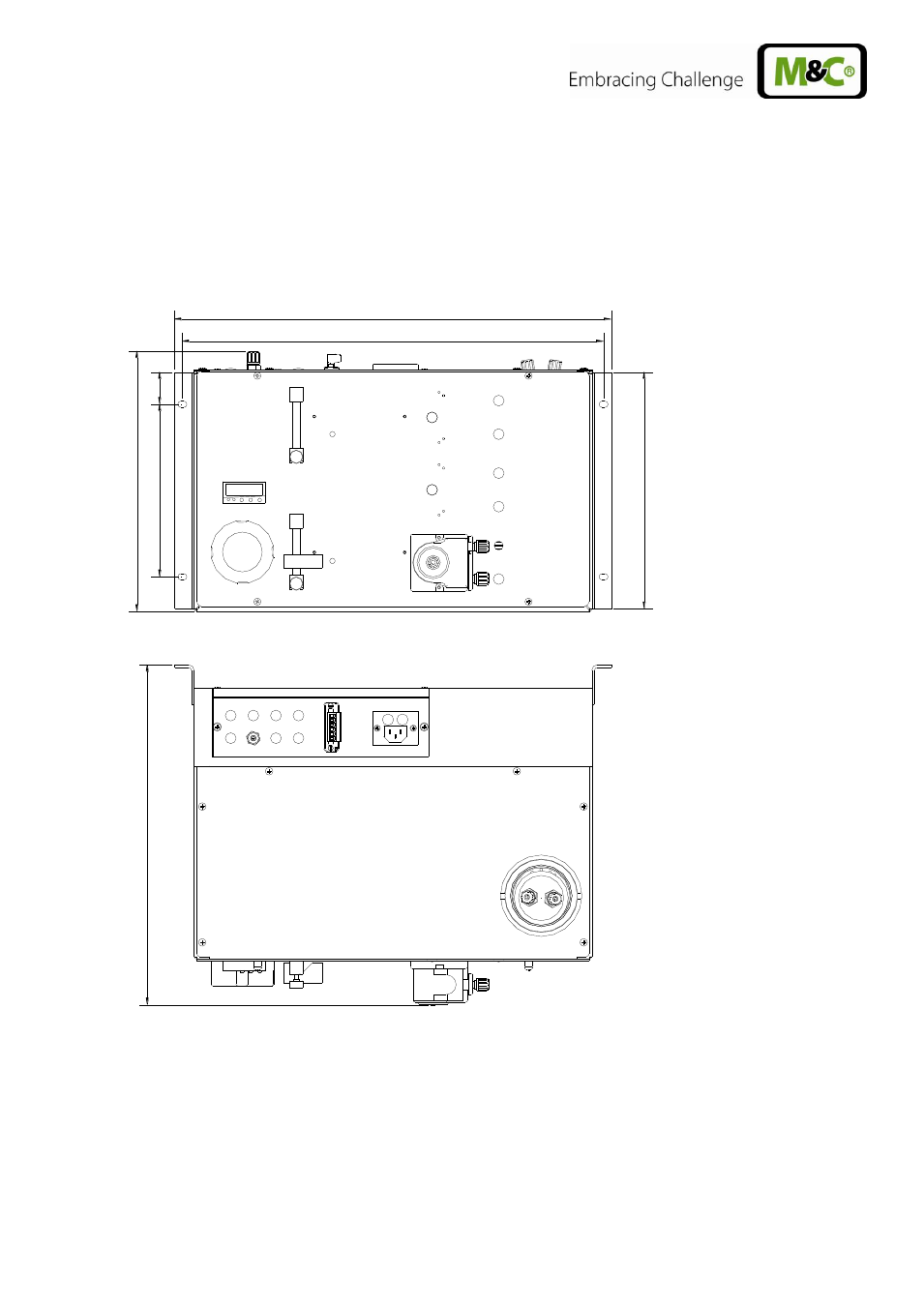

Figure 4 Dimensions CSS-V..
