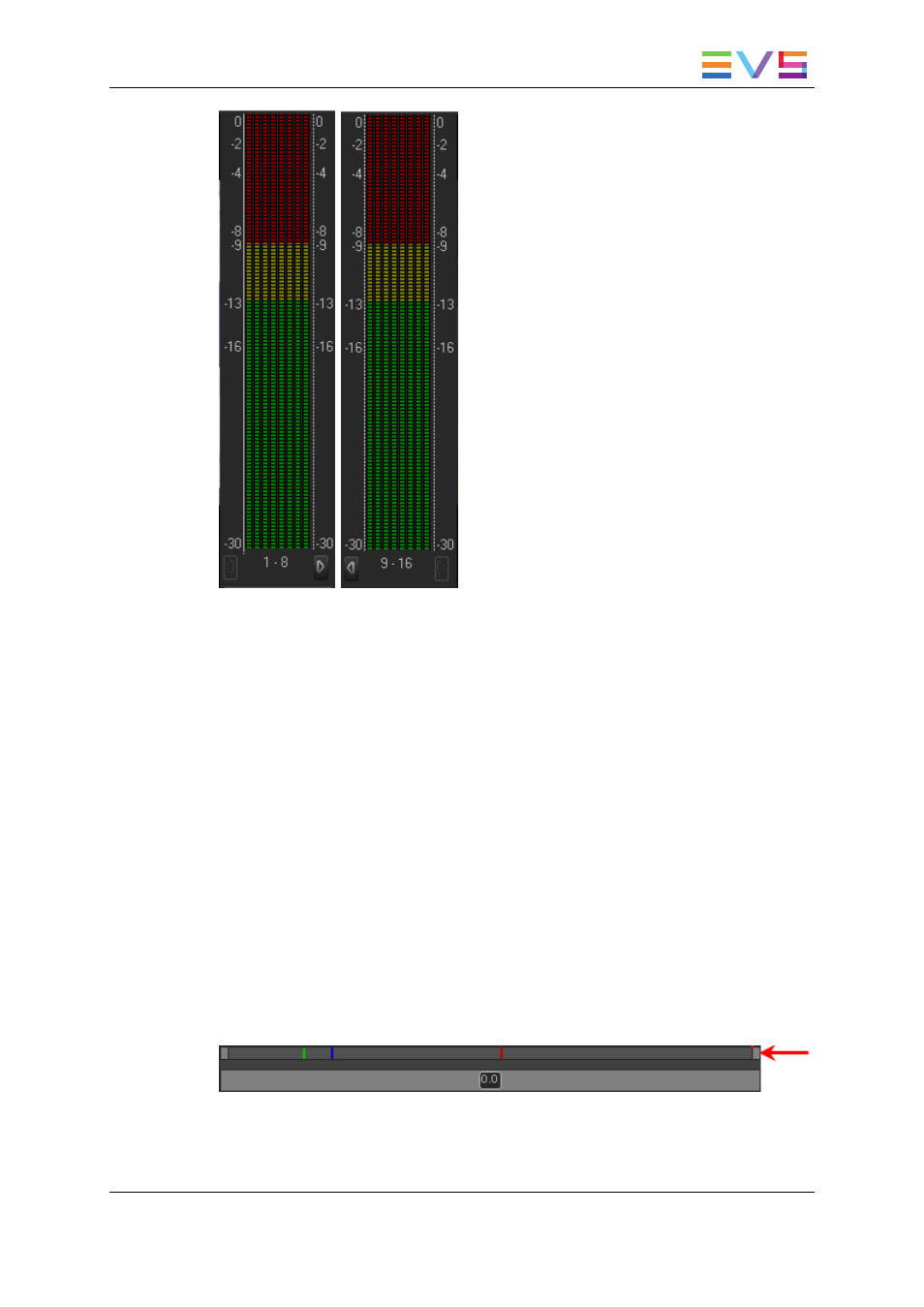

Db values are displayed on each side. They correspond to the values defined in
Parameters > Parameter Profiles > General > Vumeter for the top level, the saturation
level, the warning level and the bottom level. Values for 0, -2, -4, -8 and -16 are shown as
well if they do not overwrite the database values.
4.7.5. Media Bar and Jog Bar
Media Bars
Top Bar
The top bar represents the media, or a portion of it, currently loaded on the Player.
The media bar display differs according to the loaded element.
Clip
When a clip is loaded, the IN point, the OUT point and the nowline are displayed on this
top bar.
