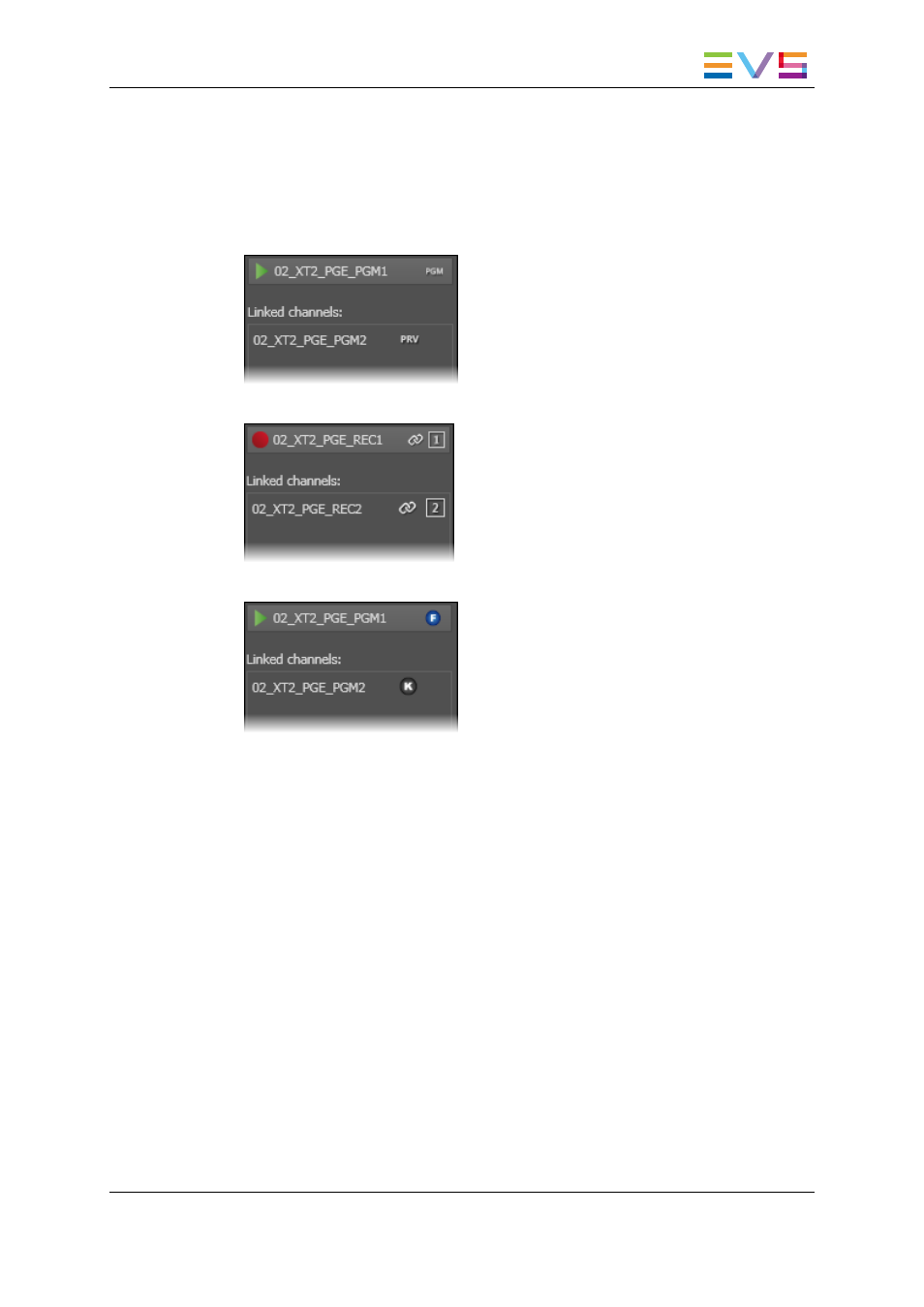

Linked Channels
In case the channel is linked to another one in a PGM/PRV mode, gang mode or Fill and
Key mode, the linked channels are listed in the Linked Channels box.
• PGM/PRV Mode
• Gang Mode
• Fill and Key Mode
How to Un-Assign Player or Recorder Channels to Function Buttons
To un-assign a player or recorder channel from a Function button, proceed in one of the
following ways:
• Right-click the Channel Name field and select None
• Double-click the Channel Name field.
Assigning EVS Server Channels to Function Buttons in
Normal Mode
To assign all the channels from an EVS video server to the Function buttons of the
BEPlay Remote, proceed as follows:
1. On the remote, press the SHIFT key and then the Sel XT button.
The list with the available EVS video servers is displayed on screen.
