The following network topology allows you to avoid triangle route security issues when the backup
gateway is connected to the LAN. Use IP alias to configure the LAN into two or three logical networks with
the Prestige itself as the gateway for each LAN network. Put the protected LAN in one subnet (Subnet 1 in
the following figure) and the backup gateway in another subnet (Subnet 2). Configure filters that allow
packets from the protected LAN (Subnet 1) to the backup gateway (Subnet 2).

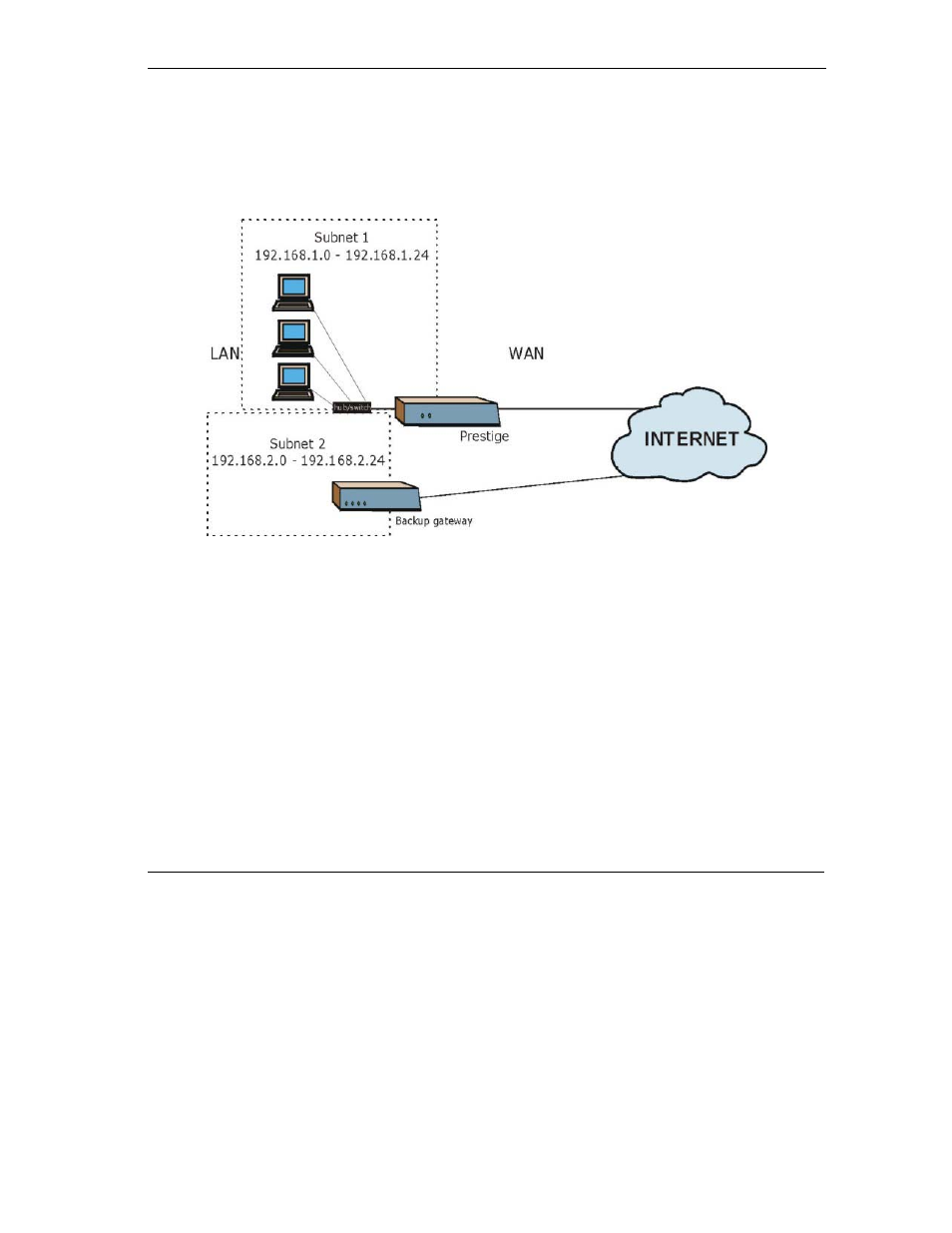

Figure 27-14 Traffic Redirect LAN Setup
To configure the parameters for traffic redirect, enter 11 from the main menu to display Menu 11.1–
Remote Node Profile as shown next.
