Prestige 650 series User’s Guide
Firewall Configuration 11-1
Chapter 11
Firewall Configuration
This chapter shows you how to enable and configure the Prestige firewall. This chapter applies to
the Prestige 650H/HW and Prestige 650H-E.
11.1 Remote Management and the Firewall
When remote management is configured to allow management (see the Remote Management chapter) and the
firewall is enabled:
• The firewall blocks remote management from the WAN unless you configure a firewall rule to
allow it.
• The firewall allows remote management from the LAN.
11.2 Enabling the Firewall
Click Advanced Setup, Firewall, and then Config to display the following screen. Select the Firewall
Enabled check box and click Apply to enable (or activate) the firewall.

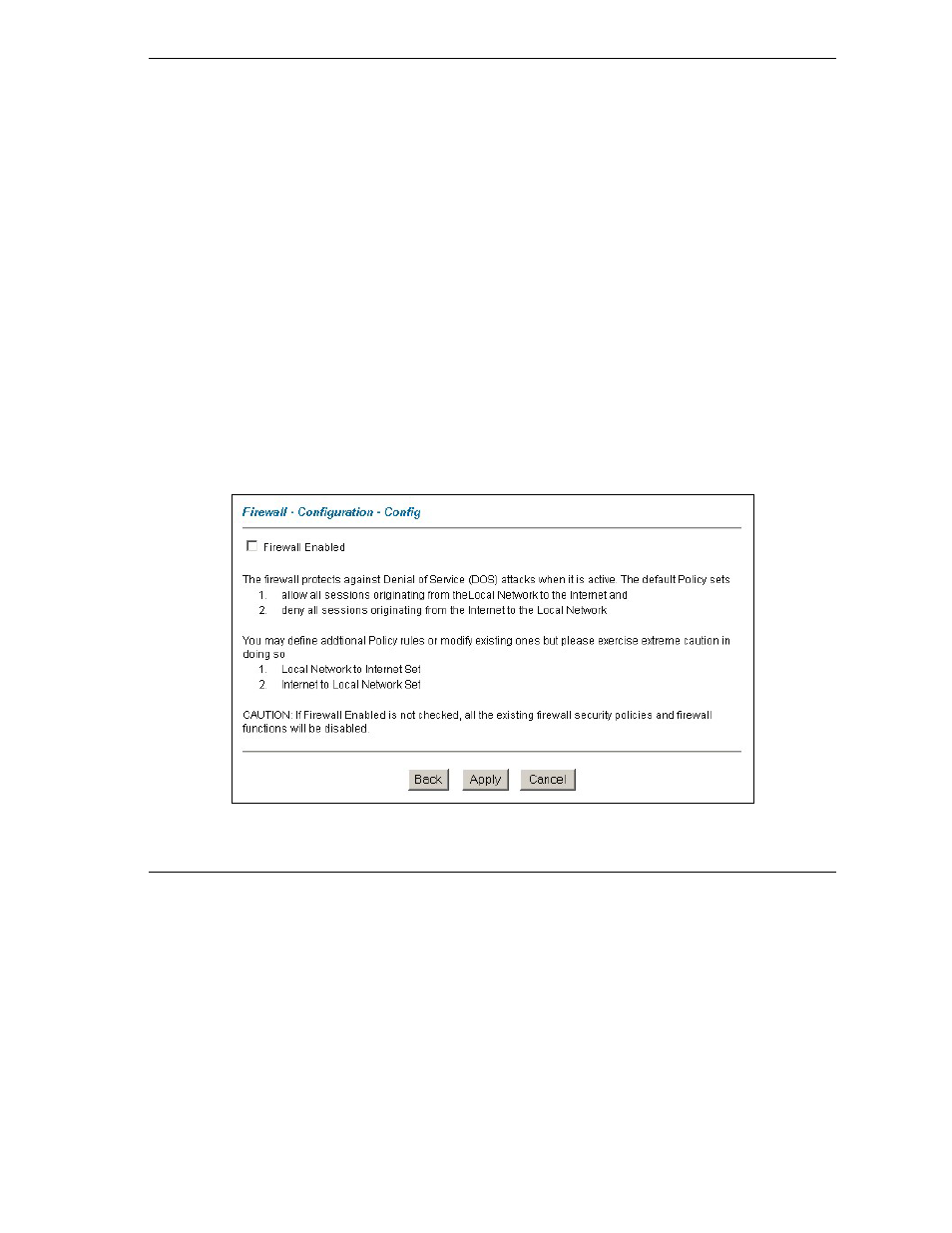

Figure 11-1 Enabling the Firewall
