Spartan-3A DSP FPGA Family: DC and Switching Characteristics
DS610 (v3.0) October 4, 2010
Product Specification
51
Configuration and JTAG Timing
General Configuration Power-On/Reconfigure Timing
X-Ref Target - Figure 10

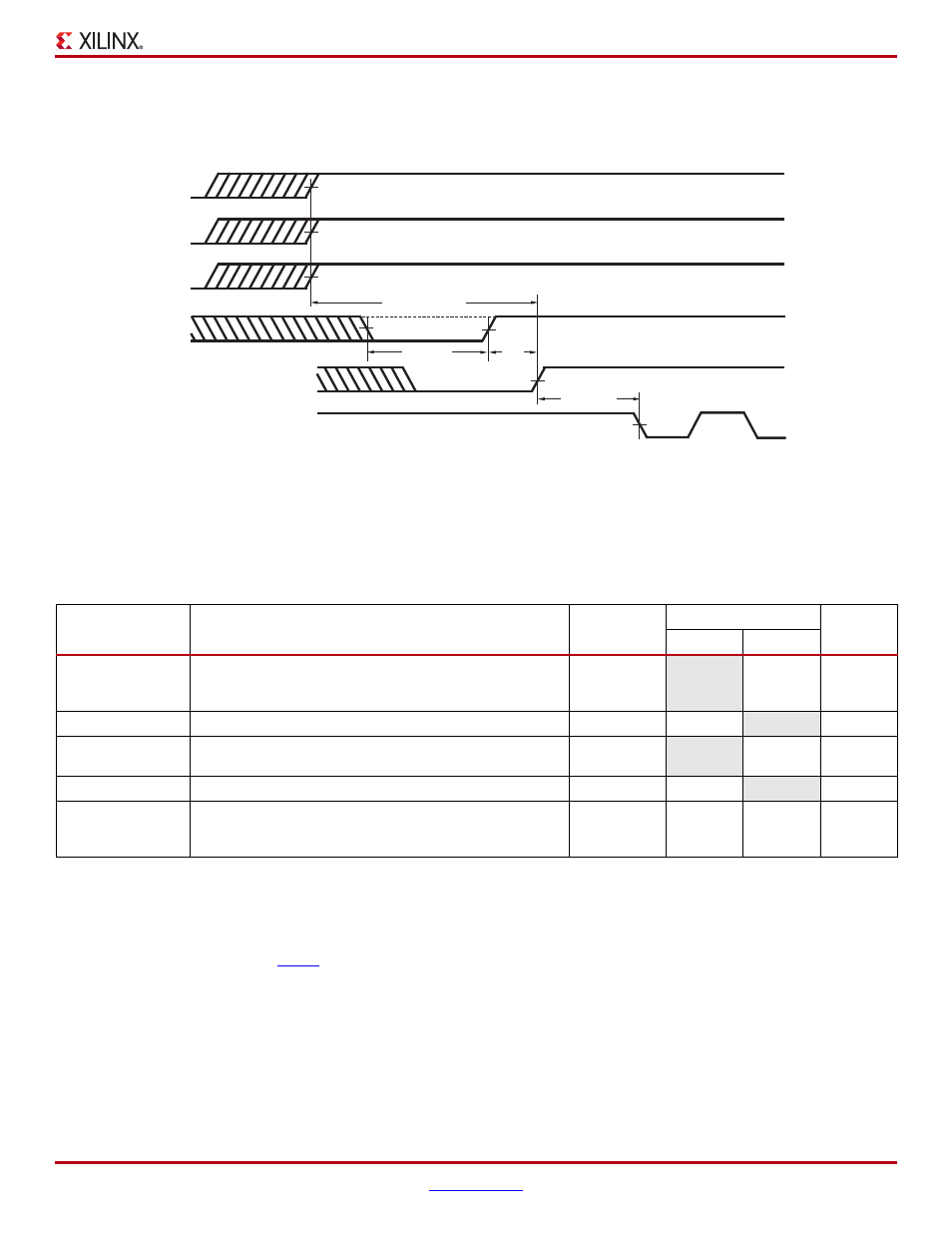

Figure 10: Waveforms for Power-On and the Beginning of Configuration
Table 45: Power-On Timing and the Beginning of Configuration
Symbol
Description
Device
All Speed Grades
Units
Min
Max
T
The time from the application of V
CCINT
, V
CCAUX
, and V
CCO
Bank 2 supply voltage ramps (whichever occurs last) to the
rising transition of the INIT_B pin
All
–
18
ms
T
PROG
The width of the low-going pulse on the PROG_B pin
All
0.5
–
µs
T
PL
The time from the rising edge of the PROG_B pin to the
rising transition on the INIT_B pin
All
–
2
ms
T
INIT
Minimum Low pulse width on INIT_B output
All
300
–
ns
T
ICCK
The time from the rising edge of the INIT_B pin to the
generation of the configuration clock signal at the CCLK
output pin
All
0.5
4
µs
Notes:
1.
The numbers in this table are based on the operating conditions set forth in
. This means power must be applied to all V
CCINT
, V
CCO
,
and V
CCAUX
lines.
2.
Power-on reset and the clearing of configuration memory occurs during this period.
3.
This specification applies only to the Master Serial, SPI, and BPI modes.
4.
For details on configuration,
Spartan-3 Generation Configuration User Guide.
V
CCINT
(Supply)
(Supply)
(Supply)
V
CCAUX
V
CCO
Bank 2
PROG_B
(Output)
(Open-Drain)
(Input)
INIT_B
CCLK
DS529-3_01_052708
1.2V
2.5V
T
ICCK
T
PROG
T
PL
T
POR
1.0V
2.0V
2.0V
3.3V
or
2.5V
3.3V
or
Notes:
1.
The V
CCINT
, V
CCAUX
, and V
CCO
supplies can be applied in any order.
2.
The Low-going pulse on PROG_B is optional after power-on but necessary for reconfiguration without a power cycle.
3.
The rising edge of INIT_B samples the voltage levels applied to the mode pins (M0 - M2).
