Document No: LT0122
F3200 Installation & Programming Manual
Applications
Issue 2.7
5 July 2001
Page 9-17
Notes
1.
Only the wiring to AVIs making tones is supervised (the Sync wire is not supervised).
2.
The supervising relays should be programmed to not supervise in the activated state.
3.
This AVI should be mounted upside down, with the DNE face plate up the right way.

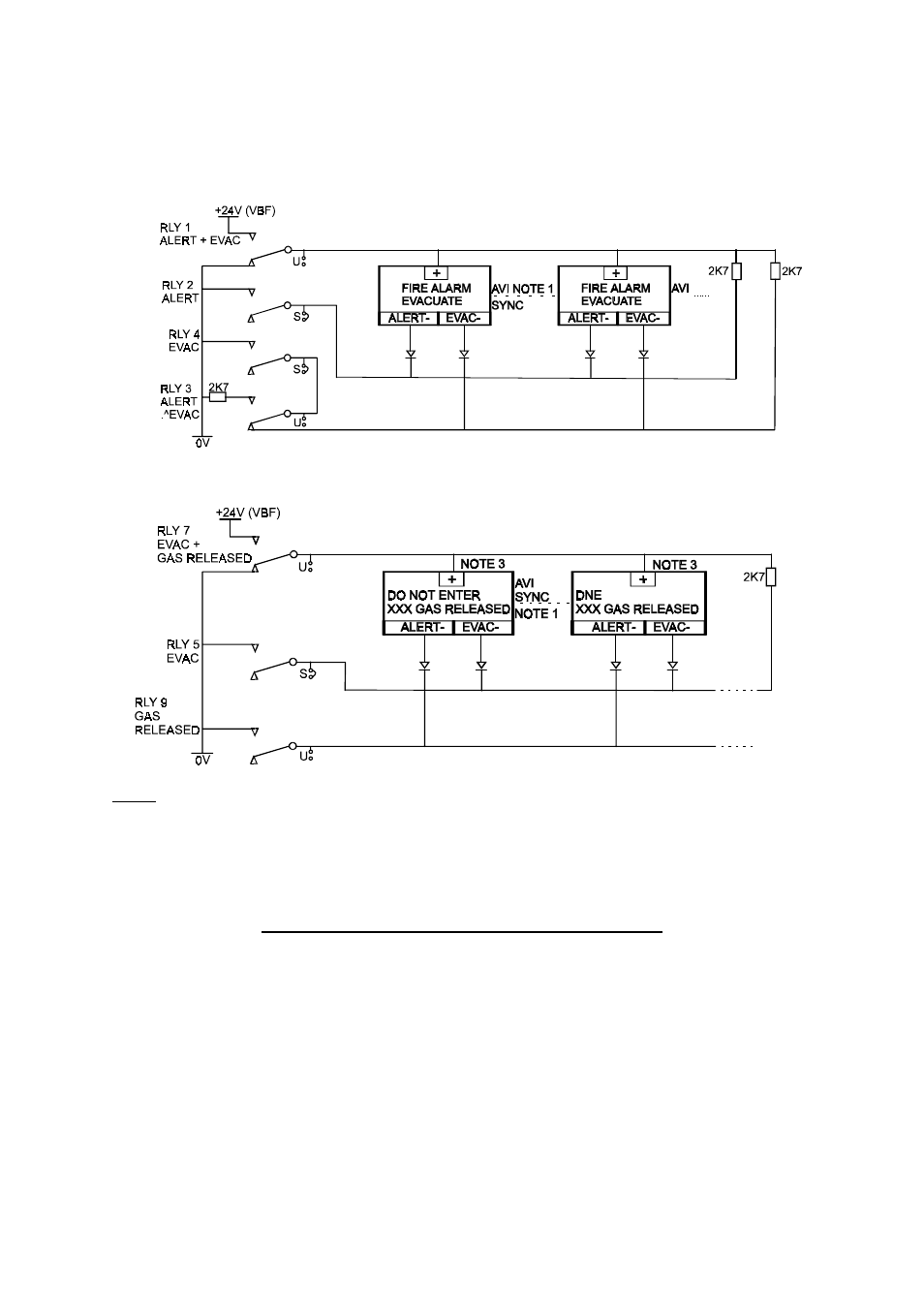

FIGURE 9.2.5
WIRING MULTIPLE SUPERVISED 2 STAGE SIGNS
