Page 96

73
Wiring Module Connectors
Section 3-3
Connecting Pulse Outputs (FQM1-MMP21)
Example

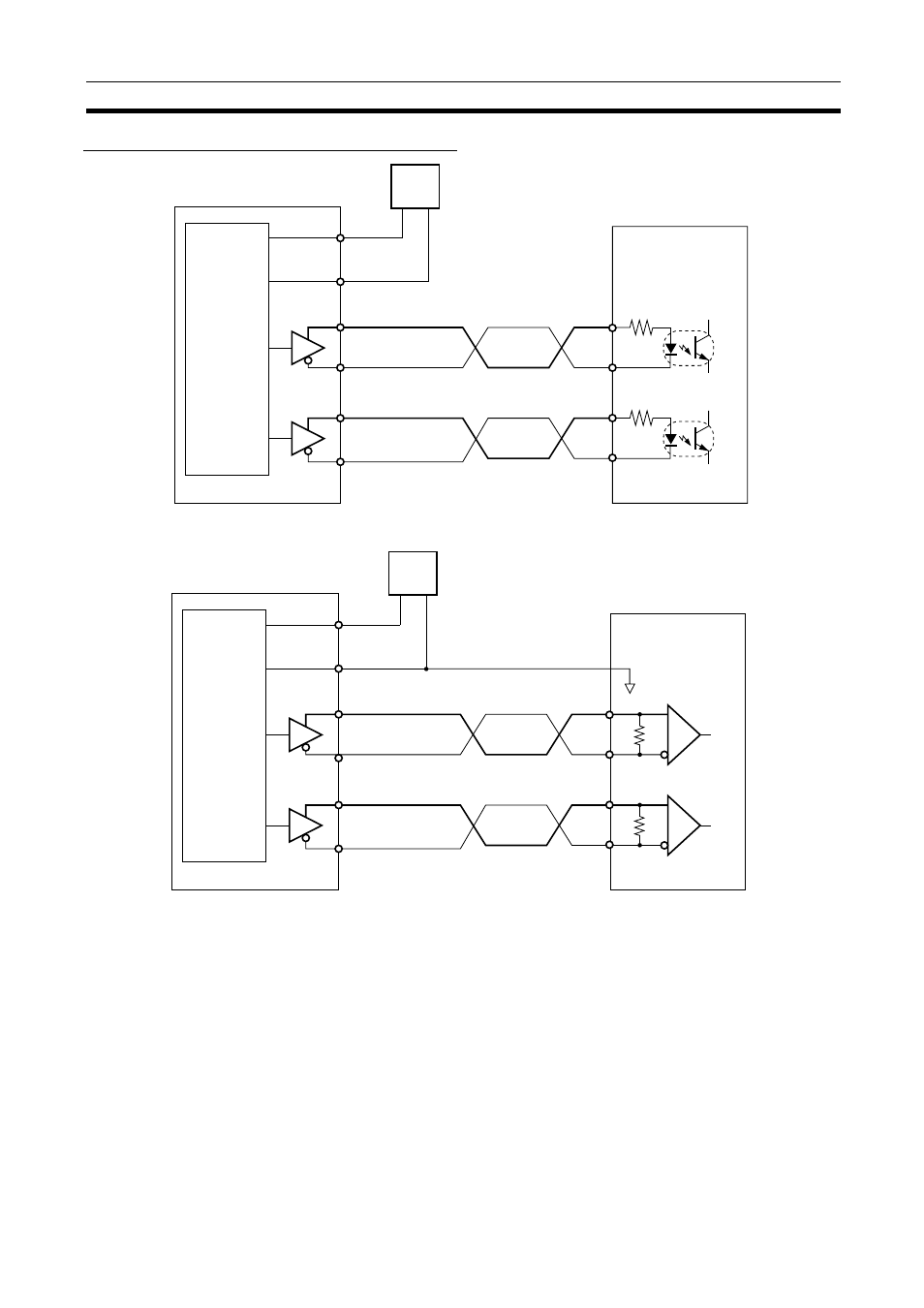

Connections with a Servo Driver are given below, as an example.
FQM1-MMP21
−
+
26
28
31/32
29/30
35/36
33/34
(
−)
(+)
(
−)
(+)
5-V DC
power
supply for
output
CW pulse
output
CCW pulse
output
5 V-DC
power
supply
Servo Driver
(for 5-V inputs)
FQM1-MMP21
−
+
26
28
31/32
29/30
35/36
33/34
(
−)
(+)
(
−)
(+)
SG (See note.)
5-V DC
power
supply for
outputs
CW pulse
outputs
CCW pulse
outputs
5-V DC
power
supply
Servo Driver
(Line receiver input)
Note: When connecting a line receiver, connect the
signal ground (SG for the Servo Driver's line
receiver input and the GND for the 5-V DC
power supply.
