Wiring Precautions
Section 3-6
3-6-2
Connecting I/O Devices
Input Devices
Use the following information for reference when selecting or connecting input
devices.

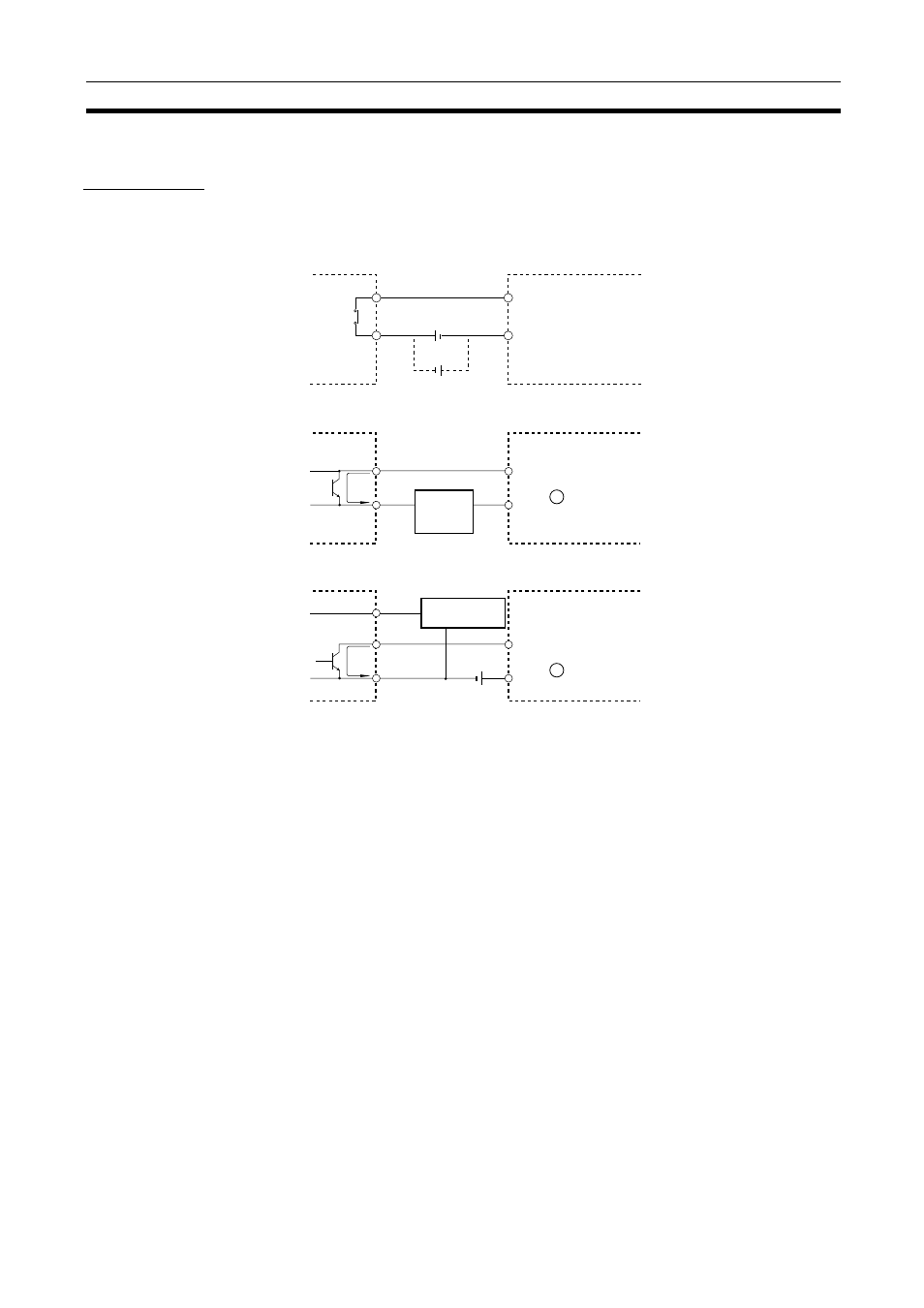

DC Inputs
The following types of DC input devices can be connected.
IN
COM
7 mA
0 V
+
+
COM
IN
IN
COM
+
+
Output
Contact output
Two-wire DC output
NPN open-collector output
DC input
DC input
DC input
Sensor
power
supply
Sensor power
supply
