List of FQM1 Connecting Cables
Section 3-5
3.
Servo Relay Unit Connecting Cables (for FQM1-MMP21/MMA21, 40-pin
MIL Connector)
4.
RS-422A Connecting Cables (with 9-pin D-sub Connector)
5.
Servo Driver Connecting Cables (Servo Relay Unit to Servo Driver)
6.
Servomotor Connecting Cables
Refer to the catalog for the Servo Driver or Servomotor to be connected.

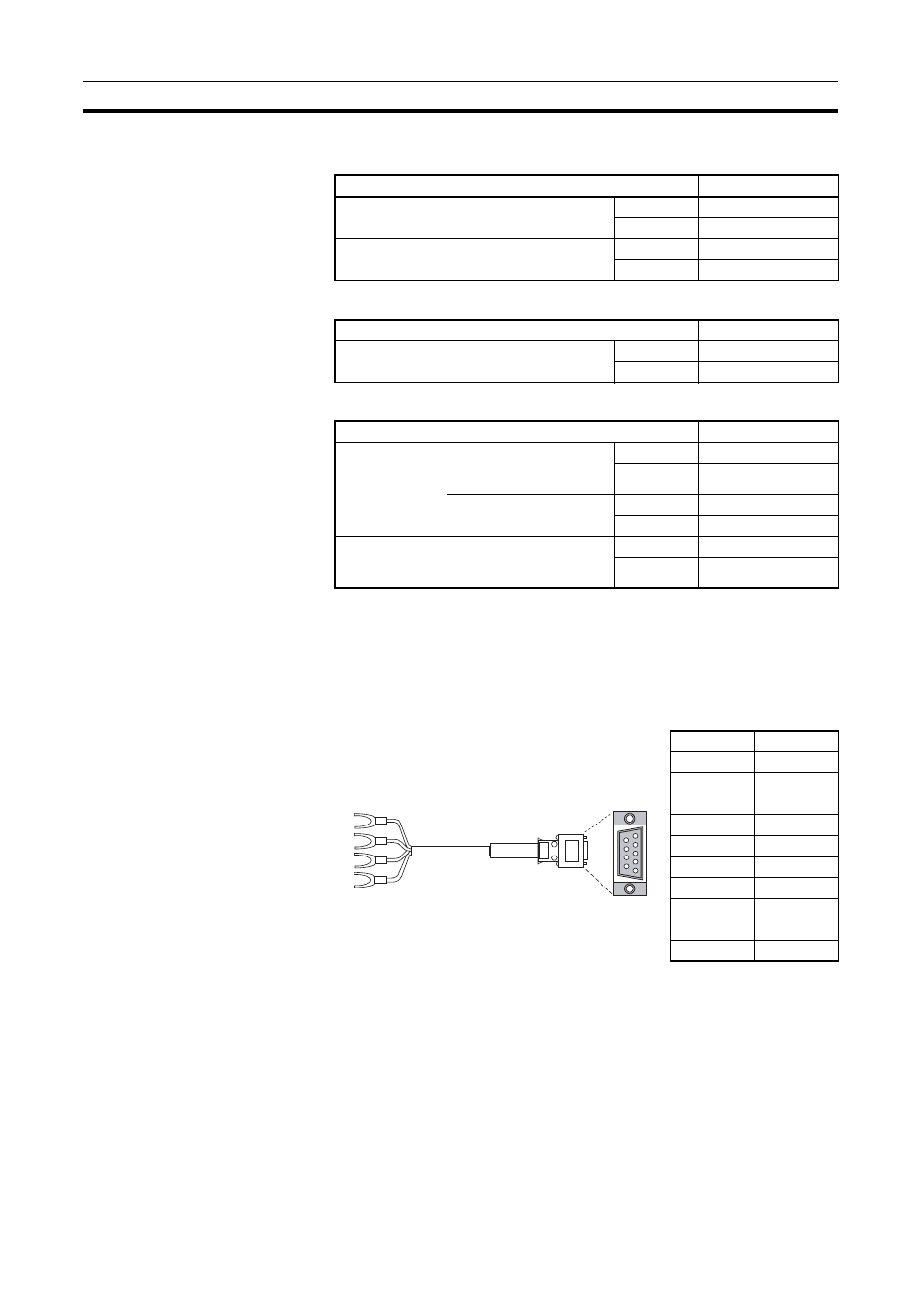

7.
RS-422A Cable, connects Connector-Terminal Block Conversion Unit and
Servo Relay Unit.
• Cut off one end of the RS-422A cable listed above (4.) and attach crimp
terminals.
Specifications
Model
Connects FQM1-MMP21 and Servo Relay
Unit.
0.5 m
XW2Z-050J-A30
1 m
XW2Z-100J-A30
Connects FQM1-MMA21 and Servo Relay
Unit.
0.5 m
XW2Z-050J-A31
1 m
XW2Z-100J-A31
Specifications
Model
Connects RS-422A between Servo Relay
Units.
1 m
XW2Z-100J-C1
2 m
XW2Z-200J-C1
Specifications
Model
FQM1-MMP21
Connects Servo Relay
Unit and W-series Servo
Driver.
1 m
XW2Z-100J-B9
2 m
XW2Z-200J-B9
Connects Servo Relay
Unit and SMARTSTEP.
1 m
XW2Z-100J-B10
2 m
XW2Z-200J-B10
FQM1-MMA21
Connects Servo Relay
Unit and W-series Servo
Driver.
1 m
XW2Z-100J-B13
2 m
XW2Z-200J-B13
Pin No.
Signal
1
TXD
−
2
TXD+
3
---
4
---
5
---
6
RXD
−
7
---
8
RXD+
9
---
Case
FG
