Page 77

54
Installation
Section 3-1

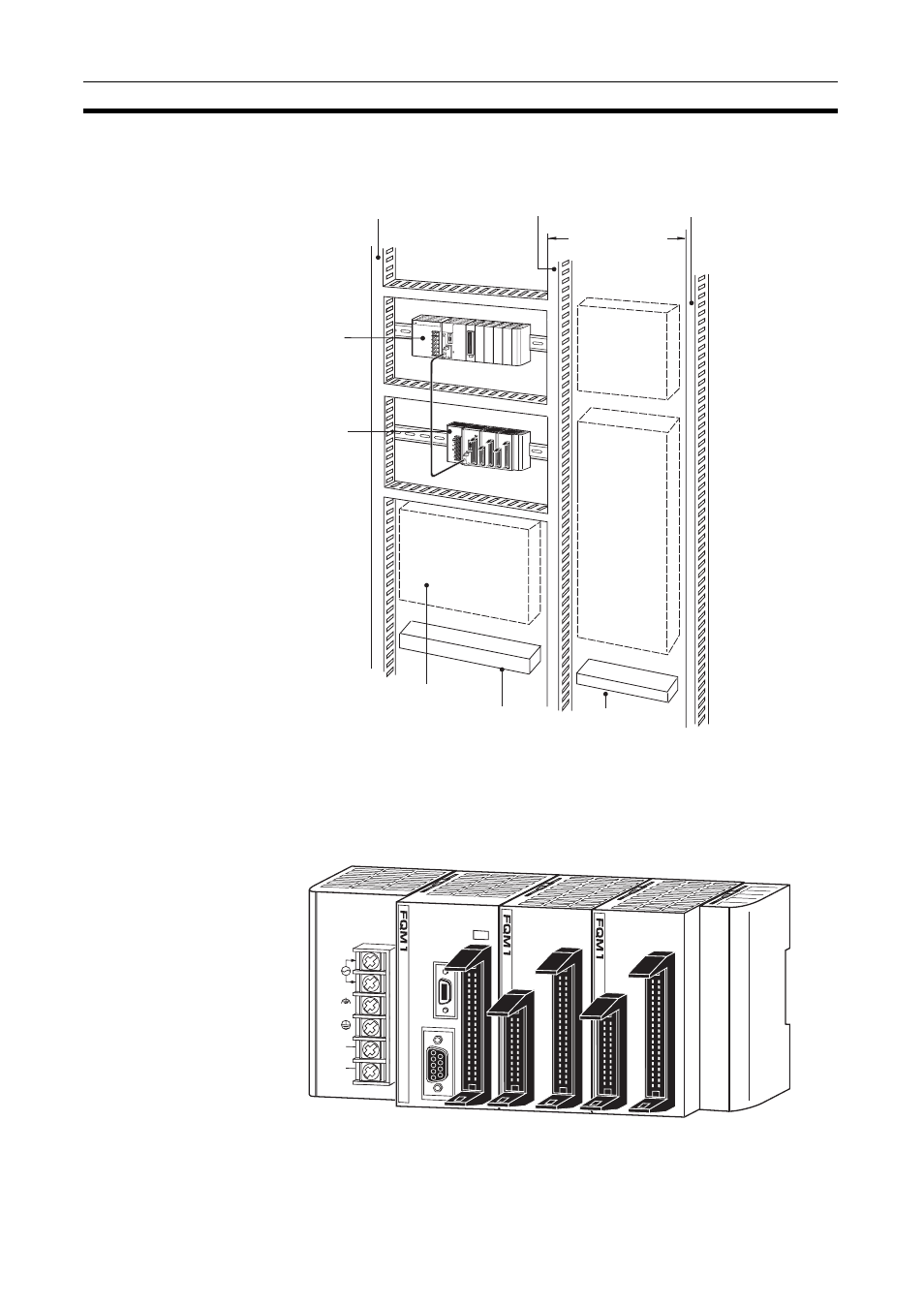

Routing Wiring Ducts
Install the wiring ducts at least 20 mm away from the FQM1 and any other
objects, (e.g., ceiling, wiring ducts, structural supports, and devices) to pro-
vide enough space for air circulation and replacement of Modules.
3-1-3
Assembled Appearance and Dimensions
The Modules that make up the FQM1 are connected to each other, and an
End Module is connected to the right end.
INPUT
AC100
-240V
L2/N
L1
NC
NC
FQM1
FQM1
FQM1
FQM1
200 mm min.
Input duct
Output duct
Power duct
PLC
Terminal blocks
for power
equipment
Terminal blocks
for FQM1
Fuses, relays, timers, etc.
(NOT heat-generating
equipment, power
equipment, etc.)
Power
equipment
such as
transformers
and
magnetic
relays
Breakers,
fuses
INPUT
AC100
-240V
L2/N
L1
NC
NC
