256 Océ TDS600 Multifunctional Digital System User Manual

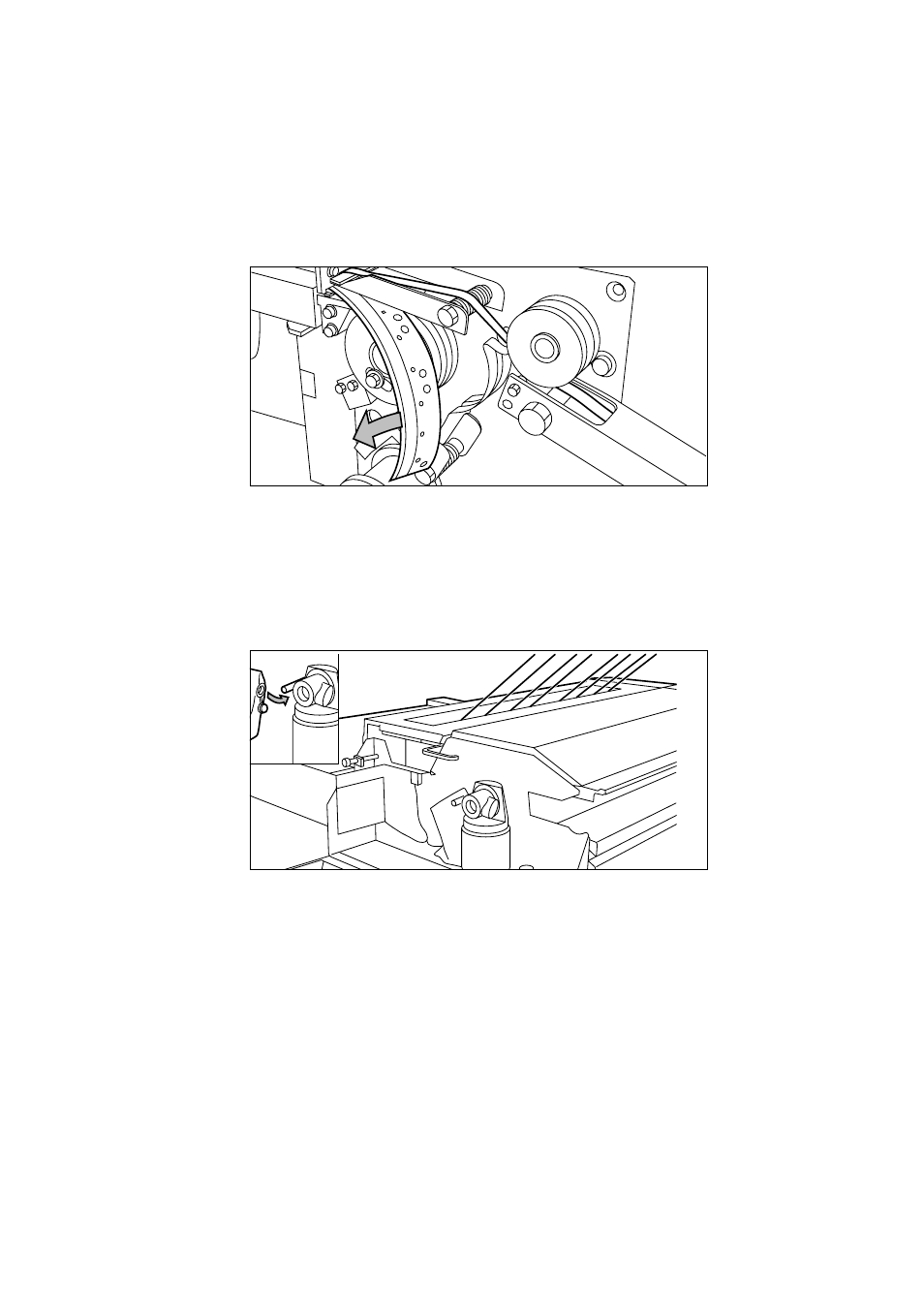

3 Remove the trailing edge of the old tape (see figure 145).
[145] Removing the trailing edge of the old tape
4 Open the front side plate of the roll holder by unscrewing the green knurled nut
and remove the old kernel.
Note: It is recommended that you clean the reinforcement knives before you
place a new roll. See ‘Maintenance of the reinforcement knives’ on
page 263 for more information.
5 Place the new roll and close the side plate. Make certain that the roll is placed
with the holes to the back and the protection sheet to the front (see figure 146).
[146] Placing the new roll
