166 Océ TDS600 Multifunctional Digital System User Manual
Zoom calibration
On the Océ TDS600 there are two options available for zoom calibration:
‘Horizontal zoom calibration’ and ‘Vertical zoom calibration’ (see figure 96).

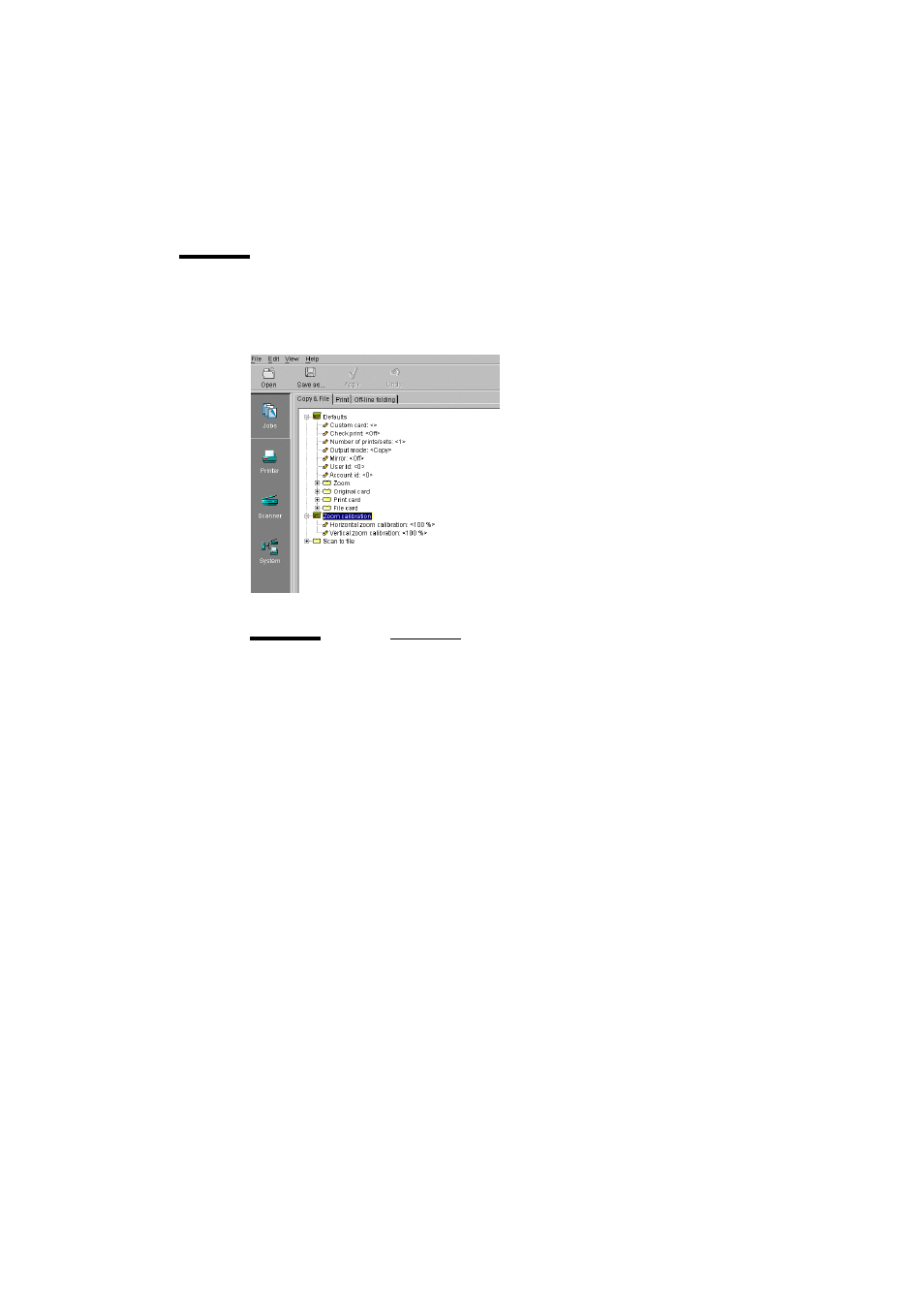

[96] ’Zoom calibration’ Folder for ‘Copy & File’
Horizontal / vertical zoom calibration
Description In order to optimise the 1 to 1 copy and print quality, the key
operator can adjust the zoom calibration factor to an accuracy
of 0.1%.
The zoom factor can be adjusted by means of two correction
factors, one for the vertical zoom direction and the second for
the horizontal zoom direction.
Min/max values 97 - 103%
Menu path Jobs - Copy & File - Zoom calibration - Horizontal / Vertical
zoom calibration
