Supplemental Information
402
www.rolandus.com
Roland VS-2480 Owner’s Manual
*Recording tracks are:
•
TR 21/22/23/24
—MTP, MT1, MT2, LIV or LV2, and a sample rate of 48k or lower
•
TR 13/14/15/16
—M24, M16 or CDR, and a sample rate of 48k or lower
•
TR 9/10/11/12
—MTP, MT1, MT2, LIV or LV2, and a sample rate of 64k or higher
•
TR 5/6/7/8
—M24, M16 or CDR, and a sample rate of 64k or higher

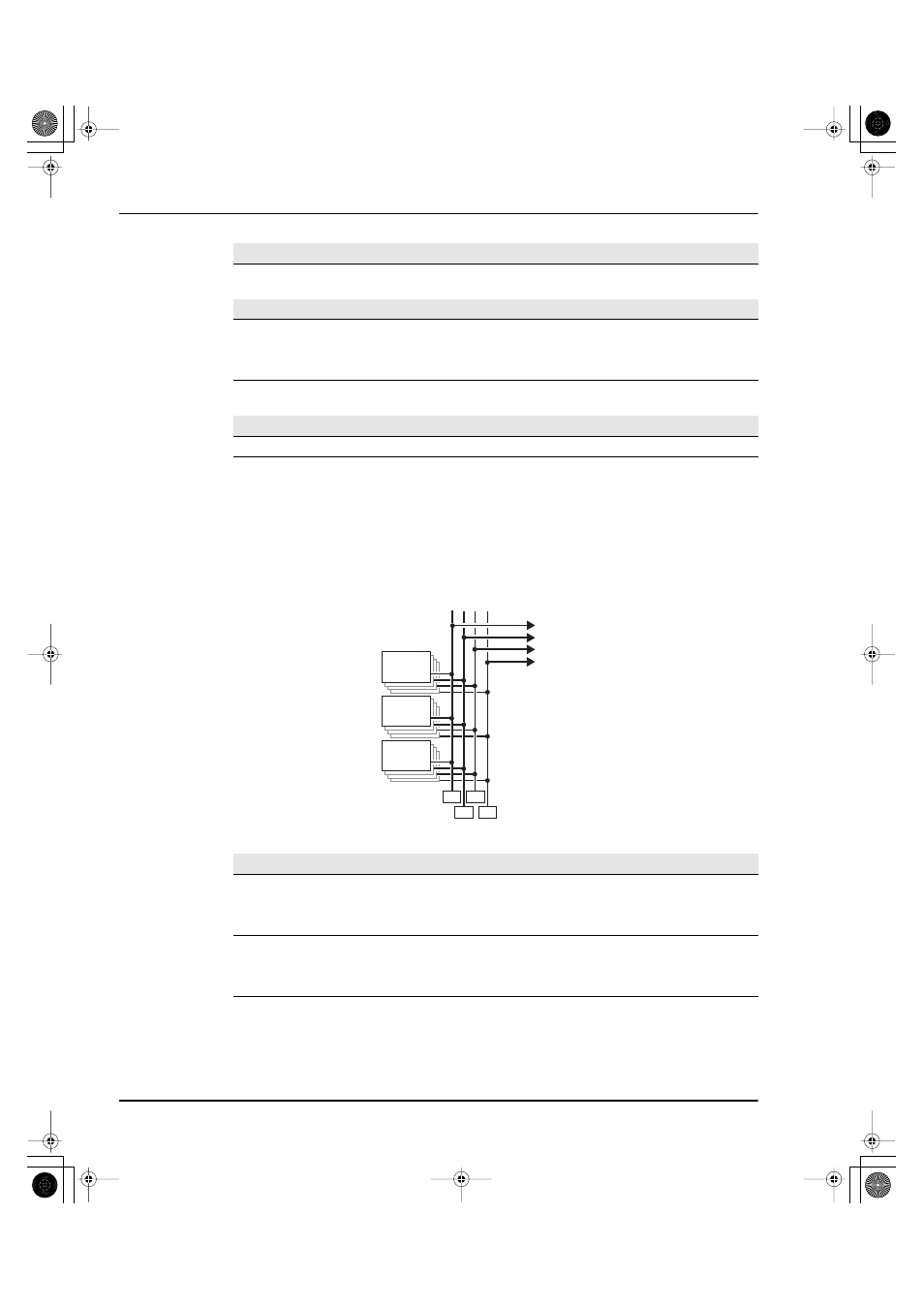

Surround 3+1 Template
LINK:
Bus LINK
Off (AUX 4-8)
TRACK STATUS:
TR1
PLAY
:
:
TR24
PLAY
Record track*
REC
Others:
SURROUND MIX Sw
On
SURROUND MIX MODE
2+2
TRACK ASSIGN:
IN1
Not in Use
:
:
IN24
Not in Use
TR1
Not in Use
:
:
TR24
Not in Use
FX1 RTN
Not in Use
:
:
FX8 RTN
Not in Use
FX 1-8
Return MIXER
TRACK
MIXER 1-20
INPUT
MIXER 1-24
Surround Mix Mode
3+1
L
Surround
Pan/Depth/
LR:C
R
C RC
Recording
Track
Surround
Pan/Depth/
LR:C
Surround
Pan/Depth/
LR:C
5
6
7
8
Analog Multi
Output
TR21
TR23
TR22
TR24
