29—Expanding the VS-2480
Roland VS-2480 Owner’s Manual
www.rolandus.com
381
Connecting a CD-R/RW Drive to the VS-2480
1.
Double-check to make sure that both the CD-R/RW
drive and the VS-2480 are turned off. If there are any
other SCSI devices connected to the VS-2480, make
sure they’re powered down as well.
2.

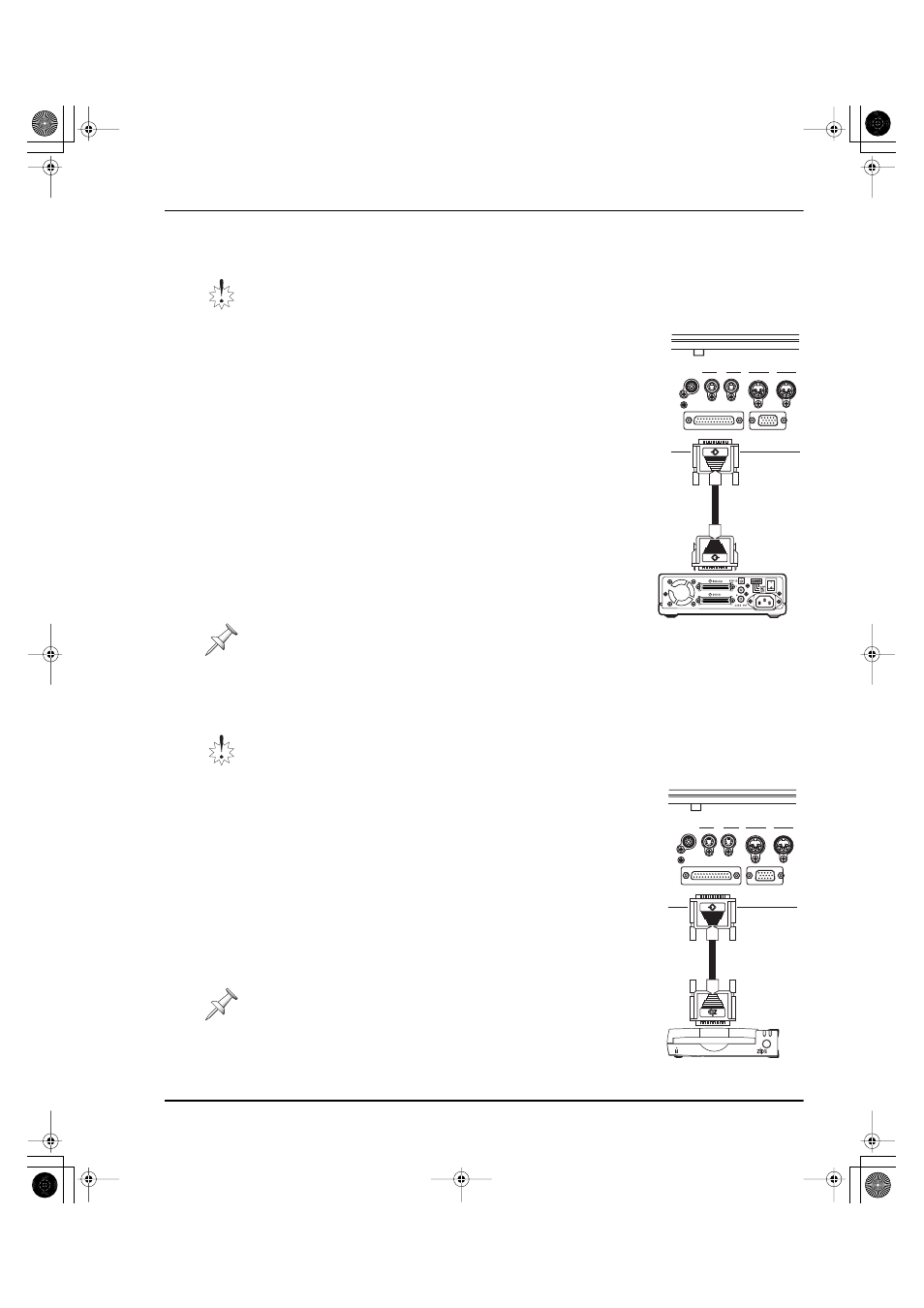

Connect a SCSI cable from one of the CD-R/RW’s
SCSI jacks to the VS-2480’s SCSI jack (Page 48), as
shown here.
3.
If the CD-R/RW is the only SCSI device connected to
the VS-2480, make sure its terminator switch is turned
on. If the drive has no terminator switch, plug a
terminator plug into its second SCSI jack.
The factory setting for the VS-2480 is SCSI ID 7. The
factory SCSI ID for a Roland VS-CDRII and CD-RACK
is ID 4.
4.
If you’ve changed either device’s ID, make sure that
the CD-R/RW’s SCSI ID number is set to a different
number than the VS-2480.
5.
Turn on the power to the CD-R/RW drive.
6.
Turn on the VS-2480’s power.
7.
Turn on the remainder of your equipment.
Connecting a Zip Drive to the VS-2480
1.
Double-check to make sure that both the Zip drive and
the VS-2480 are turned off. If there are any other SCSI
devices connected to the VS-2480, make sure they’re
powered down as well.
2.
Connect a SCSI cable from one of the Zip drive’s SCSI
jacks to the VS-2480’s SCSI jack (Page 48), as shown.
3.
If the Zip drive is the only SCSI device connected to
the VS-2480, make sure its terminator switch is on.
4.
Make sure that the Zip drive’s SCSI ID number is set
to a different ID number than the VS-2480. The factory
setting for the VS-2480 is SCSI ID 7.
5.
Turn on the power to the Zip drive.
6.
Turn on the VS-2480’s power.
7.
Turn on the remainder of your equipment.
Before connecting a CD-R/RW drive to the VS-2480, turn off power to all of your
devices—including your speakers—to prevent damage to your equipment.
You should always power up its SCSI devices before turning on the VS-2480.
Before connecting a Zip drive to the VS-2480, turn off power to all of your devices—
including your speakers—to prevent damage to your equipment.
You should always power up its SCSI devices before
turning on the VS-2480.
