11—Input and Track Channel Tools
164 www.rolandus.com Roland VS-2480 Owner’s Manual
1. EQ Sw
The EQ Sw (“EQ Switch”) parameter turns the CH EDIT EQ on and off.
2. ATT
The EQ screen provides easy access to the ATT parameter that also appears
on the CH EDIT VIEW screen. See Page 153.
3. EQ Meters
There are two meters on the EQ screen:
• The IN meter shows you the level of the signal as it enters the EQ screen.
• The OUT meter shows you the signal’s level as it leaves the EQ screen.

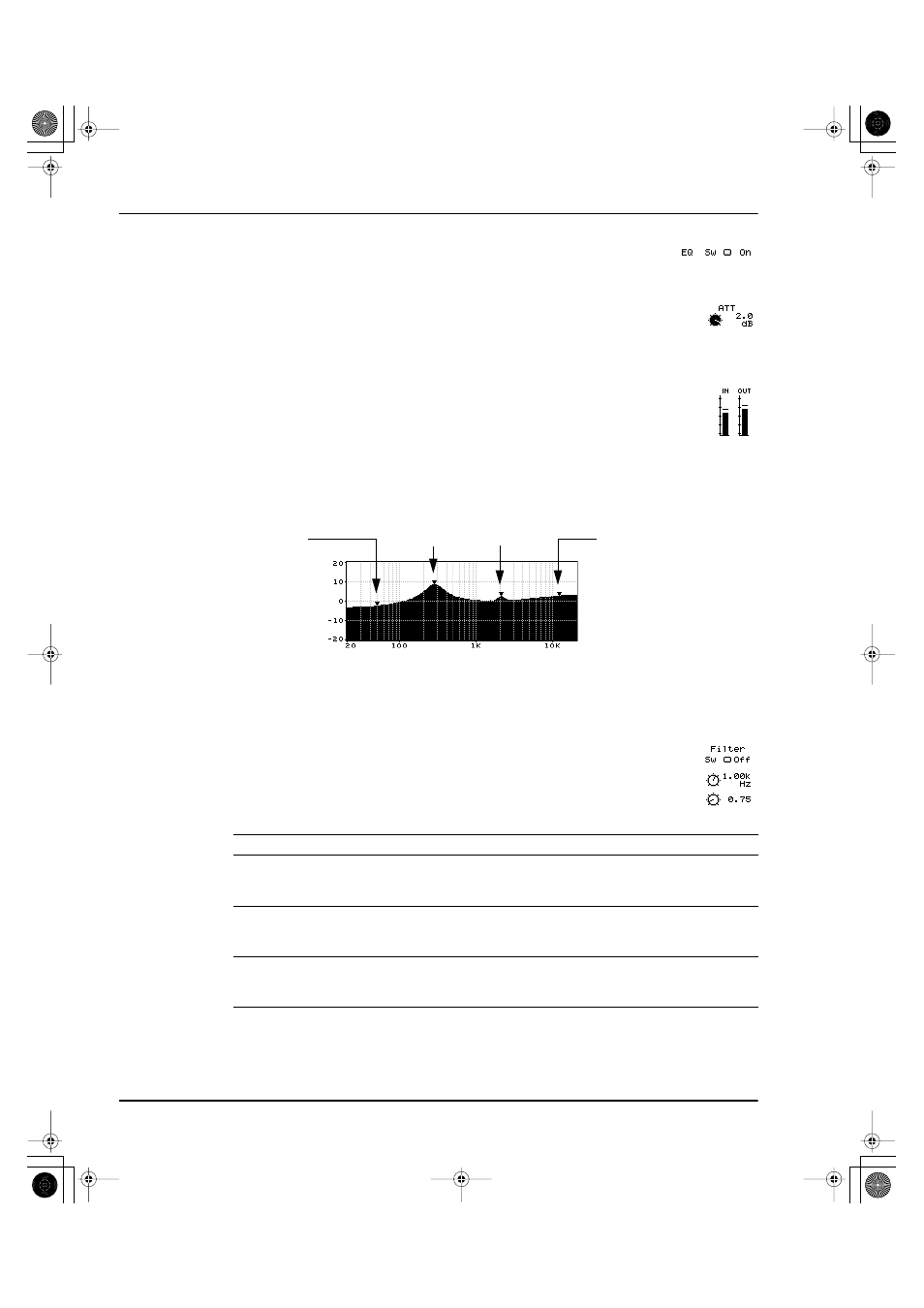

4. Interactive EQ Display
The interactive EQ display shows you the settings of the four EQs. Each equalizer is
represented by a triangle.
You can change a band’s gain and frequency values with your mouse by dragging its
triangle:
• left or right to lower or raise, respectively, change its frequency.
• down or up to lower or raise, respectively, its gain.
5. Filter
The role of each filter parameter changes depending on the filter’s
configuration, as set by the value of the Filter Sw parameter.
Filter Sw value: Sets the filter so that it: Frequency selector: Q:
Off is turned off does nothing does nothing
LPF
(low pass filter)
reduces the level of
frequencies above the
cutoff frequency sets the cutoff
frequency sets the
steepness of the
filter
HPF
(high pass
filter)
reduces the level of
frequencies below the
cutoff frequency sets the cutoff
frequency sets the
steepness of the
filter
BPF
(band pass
filter)
reduces the level of
frequencies outside the
selected frequency range sets the center
frequency sets the width
of the frequency
range
BEF
(band
eliminate filter)
reduces the level of
frequencies within the
selected frequency range sets the center
frequency sets the width
of the frequency
range
High band Low band Lo-Mid band Hi-Mid band
The dotted vertical
lines help you see
where you are as
you drag a triangle.
Gain
Frequency
