Supplemental Information
394 www.rolandus.com Roland VS-2480 Owner’s Manual
Using a Roland VE-7000
The optional Roland VE-7000 Channel Edit Controller provides physical knobs and
buttons with which you can quickly edit any input, track or FX return channel’s CH
EDIT parameters. These parameters are explained in detail in Chapters 11 and 17.
Connecting the VE-7000
1. With the power to all devices turned off, connect the VS-2480’s MIDI IN to the
VE-7000’s MIDI OUT using a MIDI cable.
2. Turn on the power to the devices.
Using the VE-7000
The following sections list the CH EDIT parameters associated with each knob and
button on the VE-7000, grouped as they are on the VE-7000’s front panel. These
parameters are explained in detail in Chapters 11 and 17.

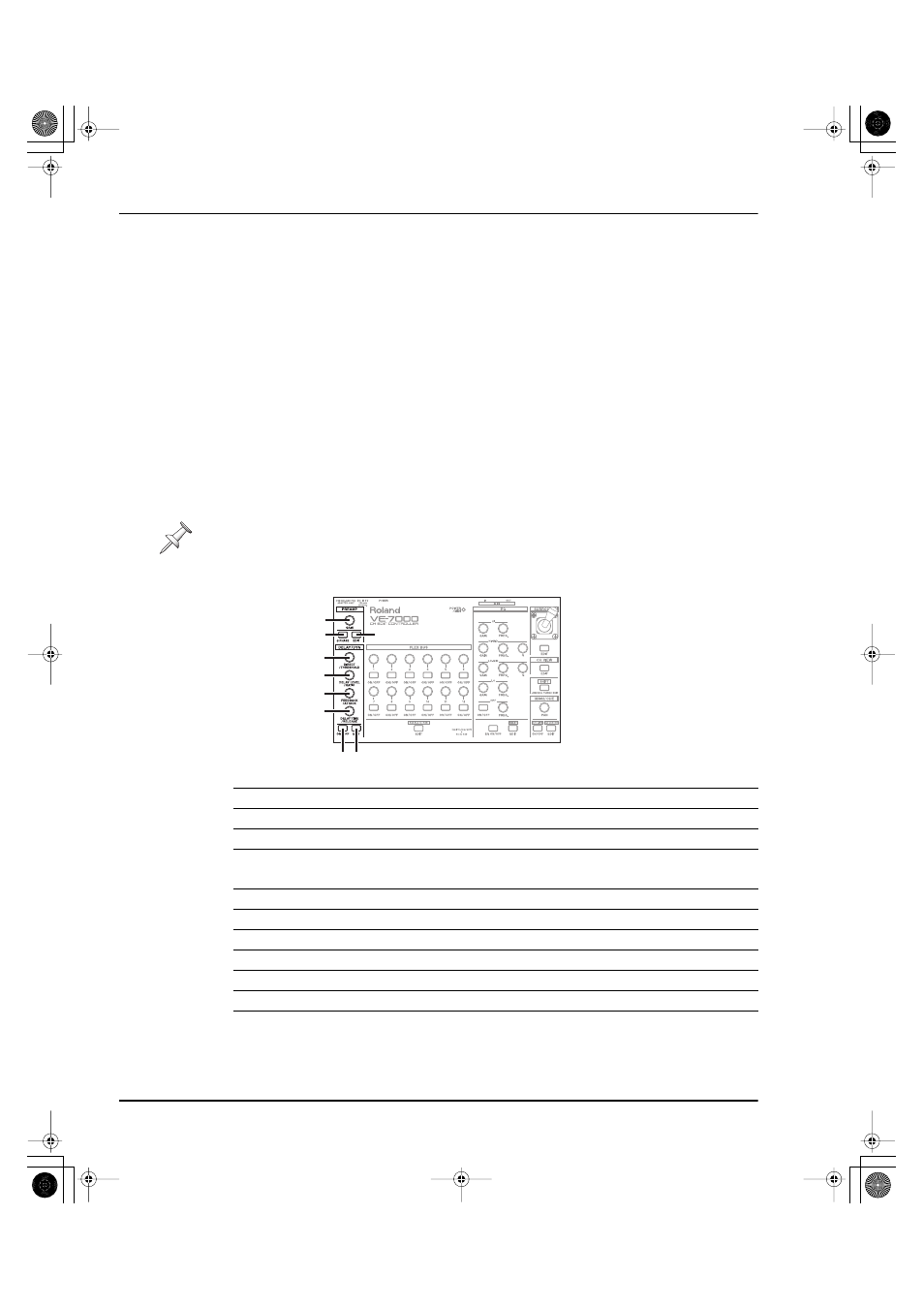

PREAMP, DELAY/DYN Areas
Press the desired channel’s CH EDIT button to set its CH EDIT parameters with the
VE-7000.
Preamp Area
VE-7000 knob or button: Acts as CH EDIT parameter or F button:
1. GAIN ATT
2. PHASE PHASE on/off switch
3. EDIT Displays CH EDIT VIEW screen
DELAY/DYN Area
VE-7000 knob or button: Same as CH EDIT parameter or F button:
4. DIRECT/THRESHOLD DYN screen Threshold
5. DELAY LEVEL/RATIO DYN screen Ratio
6. FEEDBACK/ATTACK DYN screen Attack
7. DELAY TIME/RELEASE DYN screen Release
8. ON/OFF Dynamics processor on/off switch
9. EDIT Displays DYN screen
4
8 9
5
6
7
1
2
3
