23—EZ Routing
292 www.rolandus.com Roland VS-2480 Owner’s Manual

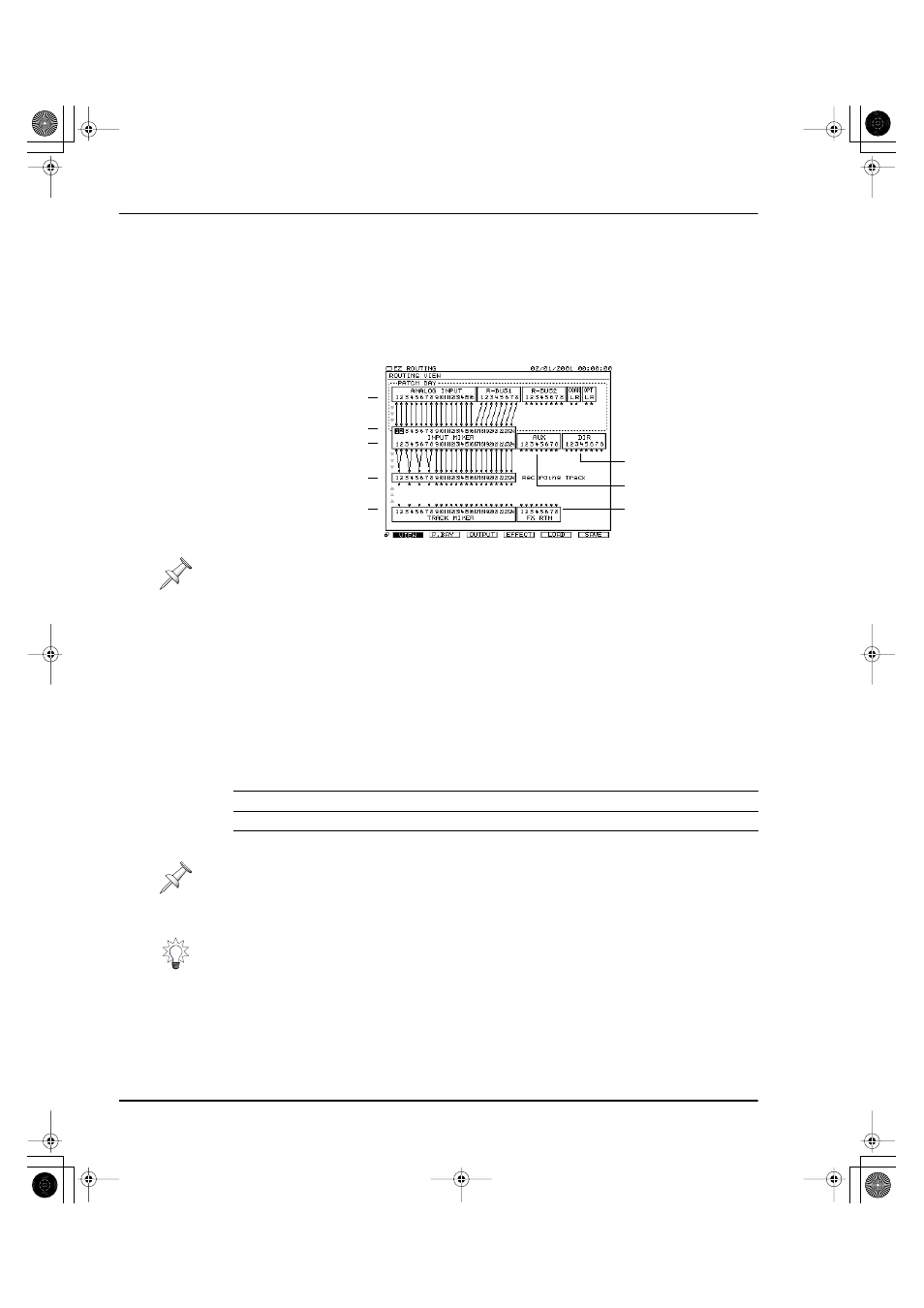

EZ ROUTING VIEW Screen
The EZ ROUTING VIEW screen shows—and allows you to interconnect—all of your:
• input jacks and connectors • input channels
• Aux busses • Direct busses
• hard disk recorder tracks • track channels
• FX return channels
Making Connections on the EZ ROUTING VIEW Screen
1. Use , , or to select the desired input or output connection. You can select:
• pairs of input channel inputs • input channel outputs
• Aux bus outputs • Direct bus outputs
• Track channel outputs • FX return channel outputs
2. Turn the TIME/VALUE dial to create the desired connection.
We’ve already described various EZ ROUTING VIEW connections in detail in other
parts of the
VS-2480 Owner’s Manual .
The EZ ROUTING PATCH BAY Screen
The primary purpose of the EZ ROUTING PATCH BAY screen is the connection of
analog input jacks and digital input connectors to the VS-2480’s input channels. Input
connections are described in Chapter 9, which starts on Page 129.
The area of the EZ ROUTING VIEW screen that includes the input jacks and
connectors is called the “patch bay”—it’s identified by a dotted outline. The patch bay
has its own screen, described below.
To learn how to route: See:
input channels to tracks for recording Page 174
track channels to tracks for bouncing Page 198
FX return channels to tracks for recording and bouncing Page 233
Patch bay connection descriptions are discussed in the following section.
You can jump to the PATCH BAY screen by holding down SHIFT and pressing EZ
ROUTING.
Input jacks and
connectors
Input channel inputs
Input channel outputs
Hard disk recorder
track inputs
Track channel outputs
Aux busses
Direct busses
FX return
channel outputs
The gray arrows at
the left edge of the
screen show the
direction in which
signal is flowing.
