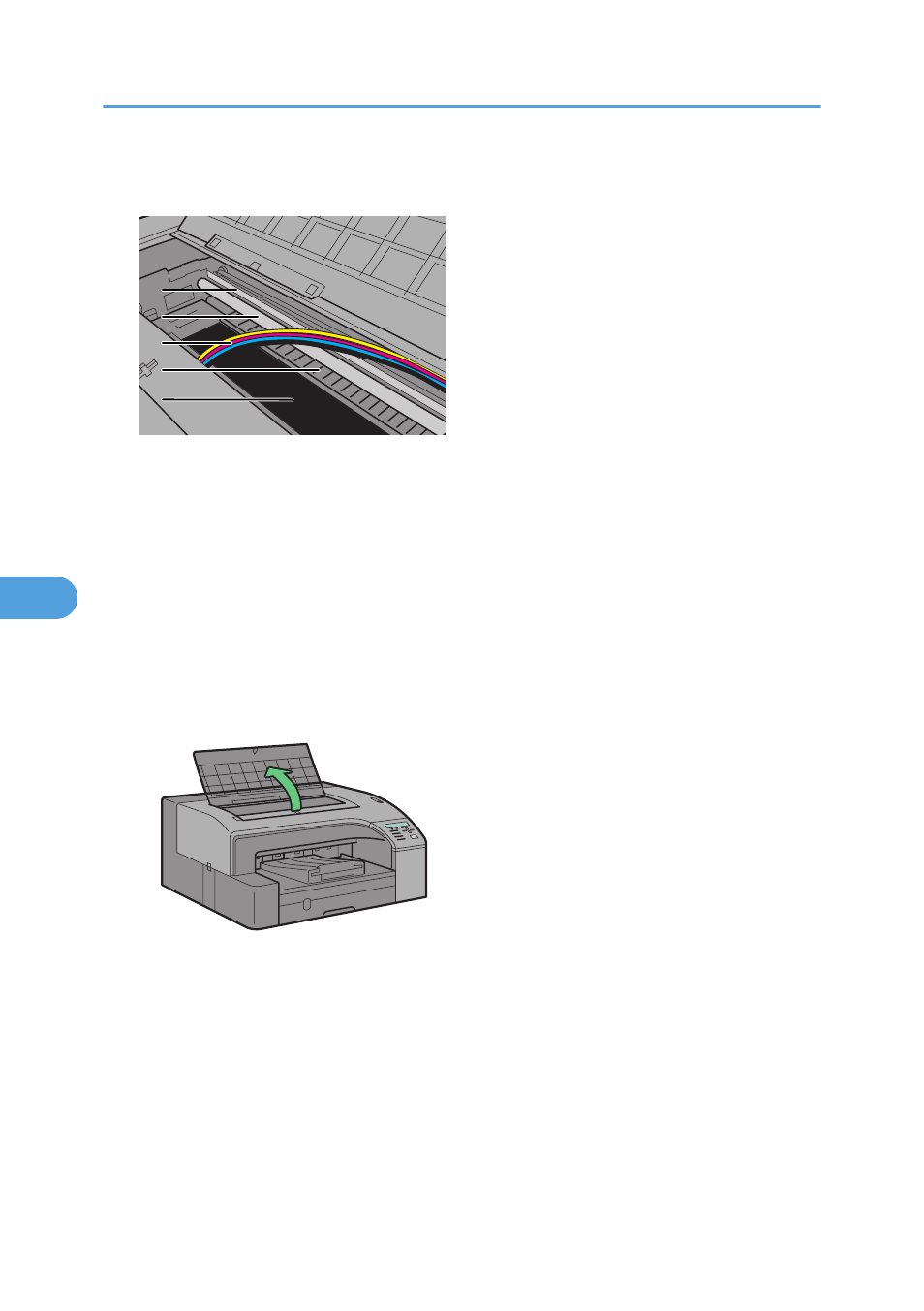

• Do not touch the feed belt, the transparent black band, print head rail rod, ink tubes, or paper pressing
board. Take care not to snag the sleeves of your clothing on the ink tubes.
1
2
3
1
2
3
4 4
5 5
BAJ089S
1. Transparent black band
2. Print Head Rail Rod
3. Ink tubes
4. Paper pressing board
5. Feed belt
• If the printer's ink tube is preventing access to the jammed paper, carefully pull the tube to the side.
Do not pull the tube upward. Pulling the tube upward will damage the printer.
1. Open the top cover.
BAJ019S
2. Open the left cover, and then turn the paper feed wheel.
Turn the wheel while looking for the jammed paper through the top cover opening.
