Roland V-Synth - Manual (Page 130)

130

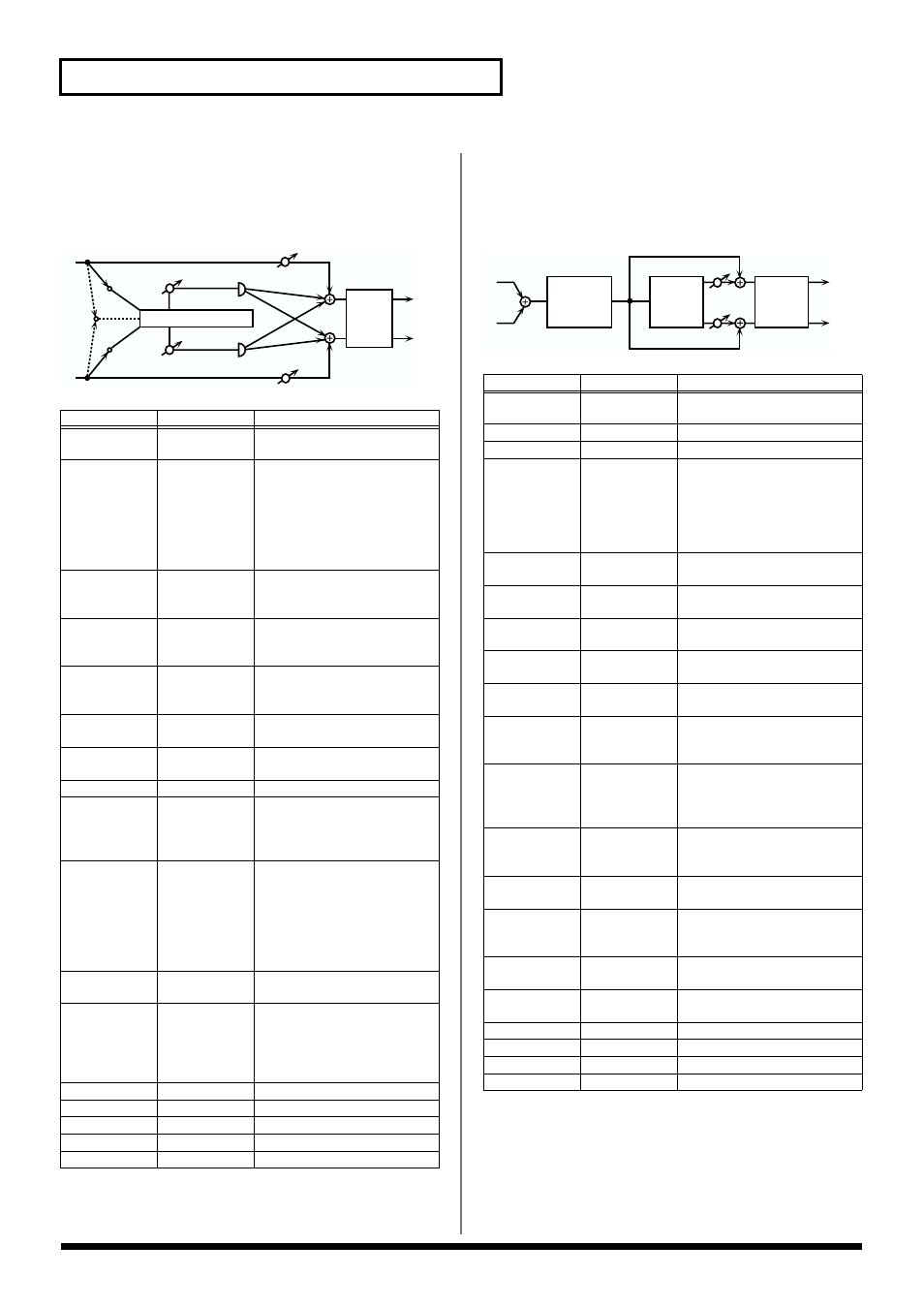

Effects List
27: Stereo Pitch Shifter
This effect features two pitch shifters arranged in parallel, making it
stereo compatible. It can shift the pitch of the input signal up to one
octave up or down.
fig.MFX-27
28: OD/DS
→
Cho/Flg (Overdrive/
Distortion
→
Chorus/Flanger)
This effect connects either Overdrive or Distortion and either Chorus
or Flanger.
fig.MFX-28
Parameter Value Description
Input Mode MONO, STE-
REO Selects either stereo input or
monaural input.
Grade 1–5 Sets the grade of the effect
sound.
The higher the value is set, the
more natural-sounding can be
obtained; however, this increas-
es the delay from the source
sound as well.
Coarse Pitch A/
B #1/#2 -12– +12 semi-
tone Specifies the pitch shift amount
in semitones for pitch shift A or
B.
Fine Pitch A/B -100– +100 cent Adjusts the pitch shift amount in
2-cent units (1 cent = 1/100 of a
semitone) for pitch shift A or B.
Pre Delay A/B 0–500 ms Adjusts the delay time from the
direct sound until the pitch shift
A or B sound is heard.
Level A/B 0–127 Volume of the pitch shift A or B
sound.
Pan A/B L63–63R Pan of the pitch shift A or B
sound.
Direct Level 0–127 Volume of the direct sound.
Feedback #3 -98– +98 % Adjusts the proportion of the
pitch shift sound that is fed back
into the effect. Negative (-) set-
tings will invert the phase.
Low Damp Freq 50–4000 Hz Adjusts the frequency below
which sound fed back to the ef-
fect will be cut.
The Low Damp function damps
the low frequency band of the
pitch shift sound quicker than
other bands.
Low Damp
Gain -36–0 dB Degree of Low Damp
Hi Damp Freq 2000–20000 Hz Adjusts the frequency above
which sound fed back to the ef-
fect will be cut.
High Damp, by attenuating the
higher frequencies first.
Hi Damp Gain -36–0 dB Degree of High Damp
Ps Low Freq 50–4000 Hz Frequency of the low range
Ps Low Gain -15– +15 dB Gain of the low range
Ps Hi Freq 2000–20000 Hz Frequency of the high range
Ps Hi Gain -15– +15 dB Gain of the high range
L
R
Stereo Pitch Shifter
A
B
2-Band
EQ
Parameter Value Description
Distortion
Mode OD, DS Selects whether to use overdrive
(OD) or distortion (DS).
Drive #1 0–127 Degree of distortion
Amp Sim Sw OFF, ON Turns the amp simulator on/off.
Amp Type SMALL,
BUILT-IN, 2-
STACK, 3-
STACK Type of guitar amp
SMALL: small amp
BUILT-IN: single-unit type amp
2-STACK: large double stack
amp
3-STACK: large triple stack amp
Distortion Level 0–127 Volume of the overdrive or dis-
tortion sound.
Mod Mode CHORUS,
FLANGER Selects whether to use chorus or
flanger.
Mod Rate #2 0.05–10.0 Hz,
note Adjusts the speed of modulation
for the chorus or flanger.
Mod Depth 0–127 Adjusts the depth of modulation
for the chorus or flanger.
Mod Phase 0–180 deg Sets how the chorus or flanger
sound is spread.
Mod Pre Delay 0–50.0 ms Adjusts the delay time from the
direct sound until the chorus or
flanger sound is heard.
Mod Feedback -98– +98 % Adjusts the proportion of the ef-
fect sound that is fed back into
the effect. Negative (-) settings
will invert the phase.
Xover LowFreq 50–4000 Hz Attenuates the effect in the
range below the specified fre-
quency.
Xover Low Gain -36–0 dB Specifies how greatly the low
range will be attenuated.
Xover HiFreq 2000–20000 Hz Attenuates the effect in the
range above the specified fre-
quency.
Xover Hi Gain -36–0 dB Specifies how greatly the high
range will be attenuated.
Mod Level 0–127 Volume of the chorus or flanger
sound.
Ps Low Freq 50–4000 Hz Frequency of the low range
Ps Low Gain -15– +15 dB Gain of the low range
Ps Hi Freq 2000–20000 Hz Frequency of the high range
Ps Hi Gain -15– +15 dB Gain of the high range
2-Band
EQ
Chorus/
Flanger
Overdrive/
Distortion
L
R
