Chapter 4 Creating a Patch
STRUCT (Structure)
Each of the above two parameters determines how Tone 1
and 2, and Tone 3 and 4 are connected.
Type (Structure type)1–10
fig.4-11
fig.4-11a
fig.4-11b
fig.4-11c
fig.4-11d
fig.4-11e
fig.4-11f
fig.4-11g
fig.4-11h
fig.4-11i

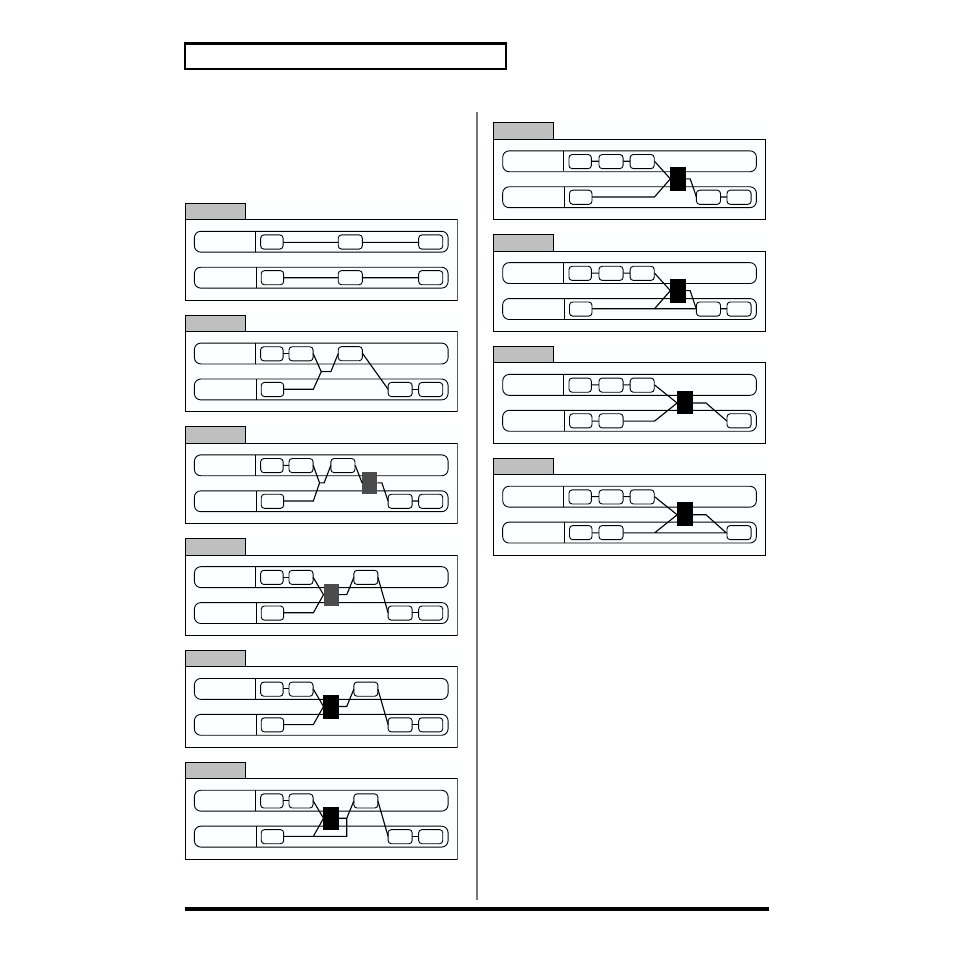

The display will graphically show the selected Structure. The
displayed symbols have the following meanings.
W1 (WG1), W2 (WG2), F1 (TVF1), F2 (TVF2), A1 (TVA1), A2
(TVA2), B (booster), R (ring modulator)
* If you select a Tone while on the STRUCT page, the Tone
paired with the selected Tone will also be selected.
* If Type 2–10 is selected, turning off one Tone will cause the
other Tone to be connected in the simple order of WG/TVF/
TVA.
Booster (Booster gain)0/+6/+12/+18
The Booster amplifies the incoming signal, causing it to
distort. This creates an effect similar to the distortion often
used on an electric guitar. If the “Type” parameter has been
set to 3 or 4, you can set the Booster strength.
