Chapter 3 Selecting Output Jacks
The XV-3080 has three sets of stereo outputs.
These outputs allow you to separate sounds – or groups of sounds – from the XV-3080’s overall stereo mix, and to send them to
their own external destinations. For example, you could route a stereo Rhythm Set to a pair of output jacks connected to an
external effects device. You can also use the three pairs of jacks as six independent output jacks to which you can route Tones,
Rhythm Tones or Patches.
This chapter describes the signal paths in the XV-3080’s various modes, along with the associated parameters. Please refer to this
section when selecting your outputs.
Patch Mode Settings
Signal (TONE) Flow

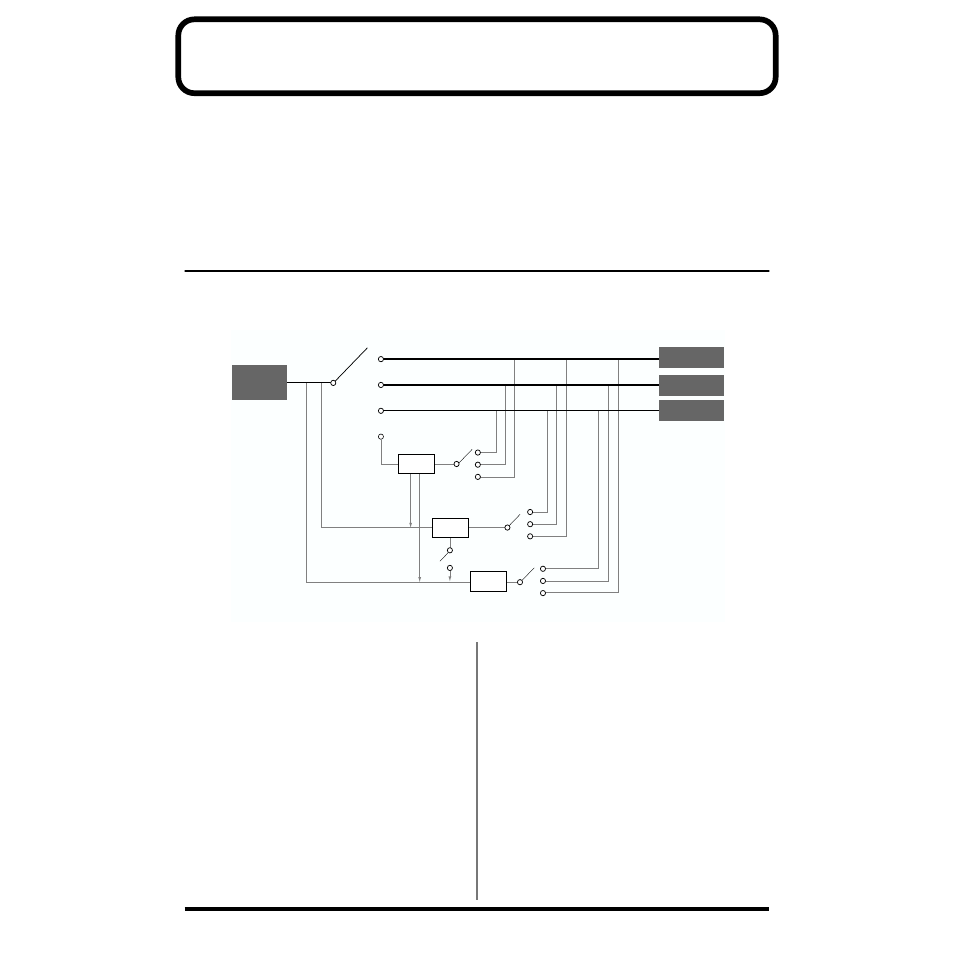

fig.3-01
Parameters
The parameters related to Patch output settings are shown
below.
1–4 OUTPUT (Tone Output) ([PATCH]-
[EFFECTS])
This sets the output destination and level for the currently
selected Tone as well as its send level to the Chorus and
Reverb.
Output Assign
MFX: The Tone is sent to the Multi-Effects. The Tone’s final
output destination is determined by the Multi-Effects output
setting.
OUTPUT A–C: The Tone is routed to the OUTPUT A–C
jacks.
INDIV 1–6: The Tone is routed to the INDIVIDUAL 1–6 jacks.
Chorus (Chorus Send Level) 0–127
This sets the Tone’s send level to the Chorus. Its final output
destination is determined by the Chorus output setting.
Reverb (Reverb Send Level) 0–127
This sets the Tone’s send level to the Reverb. Its final output
destination is determined by the Reverb output setting.
PATCH LVL&PAN (Patch level & Pan)
([PATCH]-[COMMON])
Level (Patch Level)0–127
This sets the volume of the Patch.
A
B
C
CHO
REV
TONE
OUTPUT A
OUTPUT B
OUTPUT C
M-FX
Output Assign (OUTPUT)
Output Assign
(PATCH MFX OUT)
Output Assign
(PATCH CHO OUT)
Output Assign
(PATCH REV OUT)
