52
Chapter 2 Using the XV-3080 Effects
25: GATED REVERB
Gate Reverb is a special type of reverb in which the
reverberant sound is cut off before its natural length.

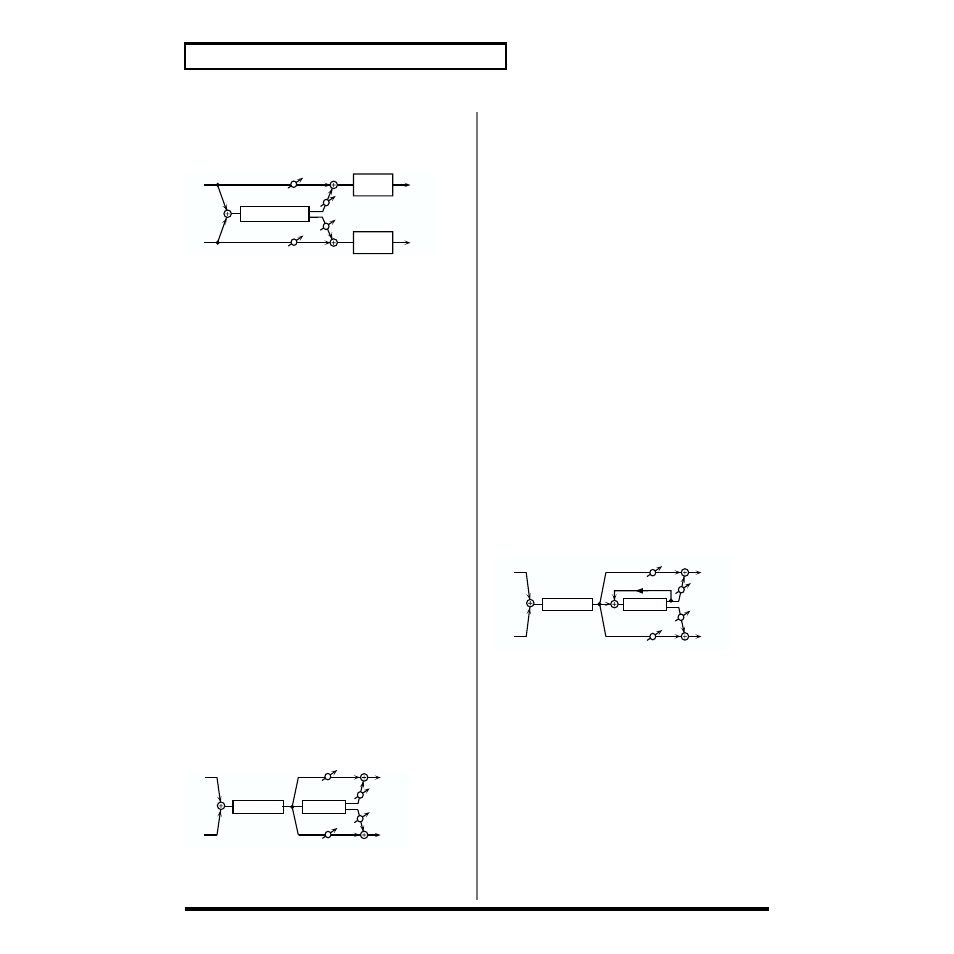

fig.2-31
Type (Gate Reverb Type)
Select the type of reverb.
NORMAL: conventional gate reverb
REVERSE: backwards reverb
SWEEP1: the reverberant sound moves from right to left
SWEEP2: the reverberant sound moves from left to right
Pre Dly (Pre Delay Time)
Adjust the time delay from when the direct sound begins
until the reverb sound is heard.
Gate Time
Adjust the time from when the reverb is heard until when it
disappears.
LowGain
Adjust the gain of the low frequency range.
Hi Gain
Adjust the gain of the high frequency range.
Balance (Effect Balance) #
Adjust the volume balance between the direct sound and the
reverb sound. With a setting of D100:0W only the direct
sound will be output, and with a setting of D0:100W only the
reverb sound will be output.
Level (Output Level) #
Adjust the output level.
26: OVERDRIVE → CHORUS
This effect connects an overdrive and a chorus in series.
fig.2-32
OD Drive
Adjust the degree of overdrive distortion. The volume will
change together with the degree of distortion.
OD Pan (Overdrive Pan) #
Adjust the stereo location of the overdrive sound. L64 is far
left, 0 is center, and 63R is far right.
Cho Dly (Chorus Pre Delay Time)
Adjust the time delay from when the direct sound begins
until the chorus sound is heard.
ChoRate (Chorus Rate)
Adjust the modulation speed of the chorus effect.
Chorus Depth
Adjust the modulation depth of the chorus effect.
Chorus Balance #
Adjust the volume balance between the overdrive sound that
is sent through the chorus and the overdrive sound that is
not sent through the chorus. With a setting of “D100: 0W,”
only the overdrive sound will be output. With a setting of
“D0: 100W,” only the overdrive sound that is sent through
the chorus will be output.
Level (Output Level)
Adjust the output level.
27: OVERDRIVE → FLANGER
This effect connects an overdrive and a flanger in series.
fig.2-33
OD Drive
Adjust the degree of overdrive distortion. The volume will
change together with the degree of distortion.
OD Pan (Overdrive Pan) #
Adjust the stereo location of the overdrive sound. L64 is far
left, 0 is center, and 63R is far right.
Flg Dly (Flanger Pre Delay Time)
Adjust the time delay from when the direct sound begins
until the flanger sound is heard.
FlgRate (Flanger Rate)
Adjust the modulation speed of the flanger effect.
L in
R in
L out
R out
Gate Reverb
2-Band
EQ
Balance W
Balance W
Balance D
Balance D
2-Band
EQ
L in
R in
Chorus Overdrive
L out
R out
Balance W
Balance W
Balance D
Balance D
L in
R in
Flanger Overdrive
L out
R out
Balance W
Balance W
Balance D
Balance D
Feedback
