Chapter 3 Selecting Output Jacks
Chapter 3
Settings in General MIDI
Mode

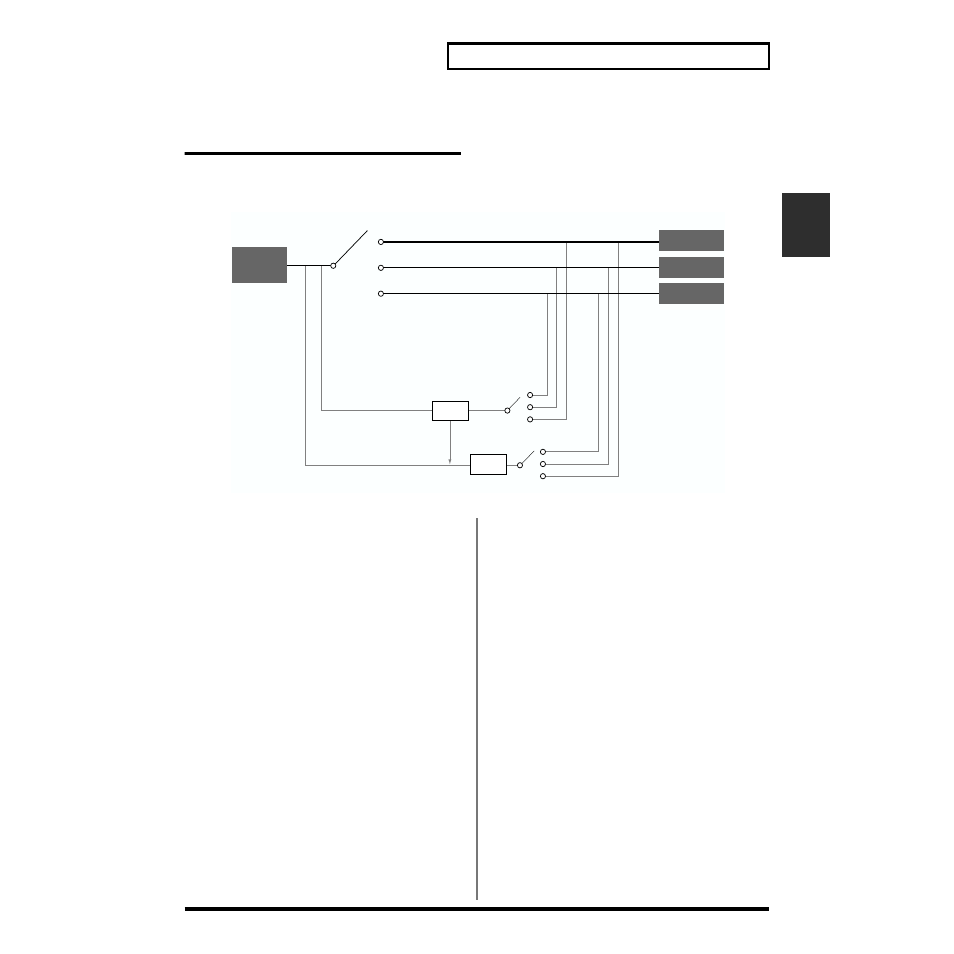

Signal(PART) Flow
fig.3-04
Parameters
The parameters related to Part(General MIDI Mode) output
settings are shown below.
PART OUTPUT
Output Assign (Output Assign/Output Level)
Sets the output destination for each Part.
The Output Level parameter adjusts the volume of each Part.
Chorus (Chorus Send Level)
Adjusts the amount of Chorus for each Part.
Reverb (Reverb Send Level)
Adjusts the amount of Reverb for each Part.
GM CHORUS
Rev (Reverb Send Level)
Sets the send level to Reverb.
Out (Chorus Output Assign) OUTPUT A–C
Sets the output destination for Chorus.
GM REVERB
Out (Reverb Output Assign) OUTPUT A–C
Sets the output destination of the chorus sound.
SYSTEM SETUP ([SYSTEM]-[COMMON])
Master Level 0–127
This adjusts the volume of the entire XV-3080.
Mix/Parallel
MIX: All Rhythm Tones – including those routed to
OUTPUTs B/C or INDIVIDUAL 3–6 – are mixed together
and routed to the A(MIX) OUTPUT jacks.
This setting allows you to quickly route everything through
headphones when you are creating sounds, or to combine all
of your Rhythm Tones into two outputs when sending the
XV-3080’s signal to a mixer that has only two channels.
* When MIX is selected, Rhythm Tones routed to the
INDIVIDUAL 3/5 jacks are sent to the left A(MIX)
