Page 26

Chapter 2 Using the XV-3080 Effects

Adjusting Effects Settings in
Performance Mode
([PERFORM]-[EFFECTS])

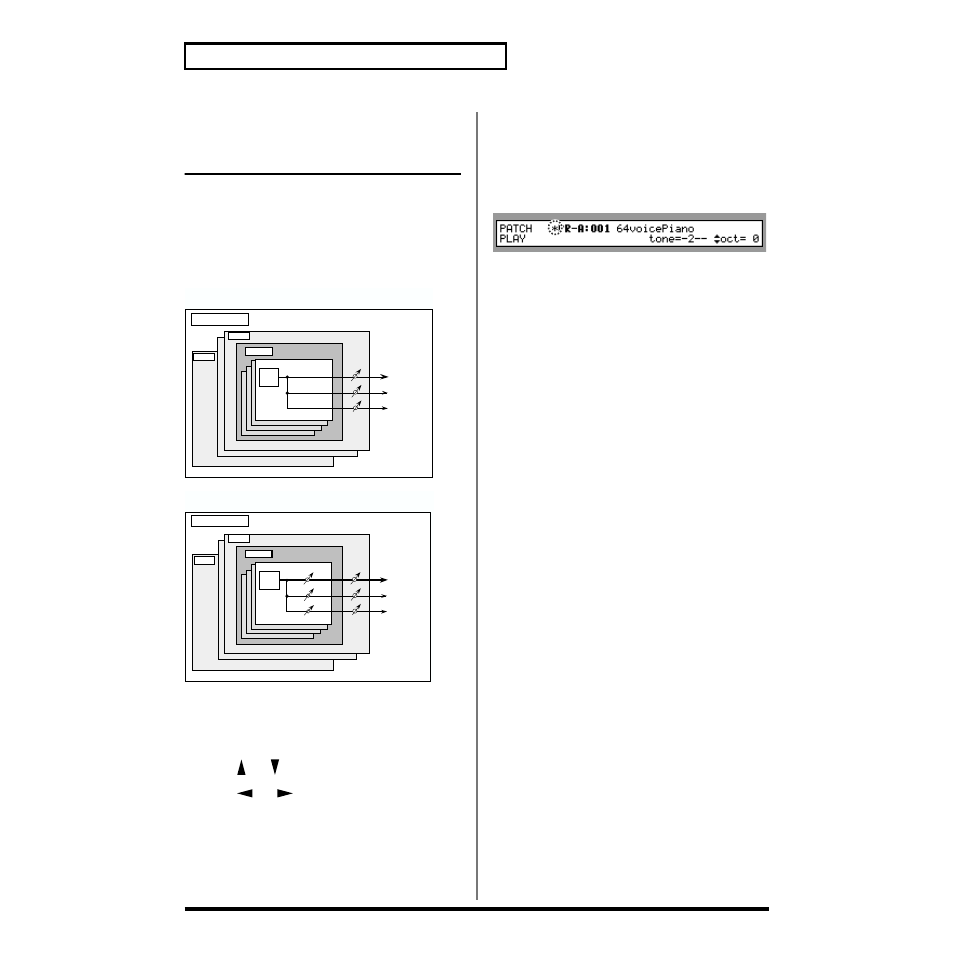

Each Part can use the Multi-Effects, Chorus and Reverb
programmed for the Performance. You can control the
amount of effect applied to each Part by adjusting the Part’s
Send Level to the effect units.(Fig. 1)

The Send Level setting for each Tone can also influence effect
intensity (Fig. 2).

fig.2-03b.e

fig.2-03a.e

Setting Procedure:

1. Select the Performance you wish to work with.

2. Press [EFFECTS] to make its indicator light.

3. Press [

] / [

] to select the page you wish to display.

4. Press [

] / [

] to move the cursor to the

parameter that you wish to adjust.

5. Turn the VALUE dial or press [INC] / [DEC] to select the

desired value.

* If you make a mistake when setting a parameter’s value, or you

don’t like the change you have made, just press [UNDO] to

restore the parameter to its original value.

6. Repeat Steps 3 to 5 to set the Effect.

7. Press [EXIT] to return to the PERFORM PLAY page.

A “*” symbol will appear at the left of the Performance name,
indicating that its settings have been modified.

fig.2-02.e

* If you turn off the power or select another Performance while

the “*” symbol is displayed, your new Performance settings
will be lost. If you wish to preserve them, save the modified
Performance using the Write operation. (p. 122)

Routing Part Outputs

PART OUTPUT

You can set the output destination and level for each
Performance Part. You can also set its send level to the
Chorus and Reverb.

Output Assign

MFX:

The Part’s sound is sent into the Multi-Effects. The

sound’s final destination is determined by the Multi-Effects
output setting.

OUTPUT A–C:

The sound is sent to one of the three output-

jack pairs, OUTPUTs A–C.

INDIVIDUAL 1–6:

The sound is sent to one of the six

INDIVIDUAL 1–6 jacks.

PATCH:

The output routing is determined by the settings of

the Patch or Rhythm Set assigned to the Part.

Chorus (Chorus Send Level) 0–127

This sets how much of the Part’s sound is sent to the Chorus.

Reverb (Reverb Send Level) 0–127

This sets how much of the Part’s sound is sent to the Reverb.

Performance

Part16

Chorus

Reverb

TONE

Multi-Effects

Patch

Part 1

Fig.1 – When Output Assign is set to “MFX” in the Performance
mode (the output settings for Tone are ignored)
