44
Chapter 2 Using the XV-3080 Effects
14: STEREO CHORUS
This is a stereo chorus. A filter is provided so that you can
adjust the timbre of the chorus sound.

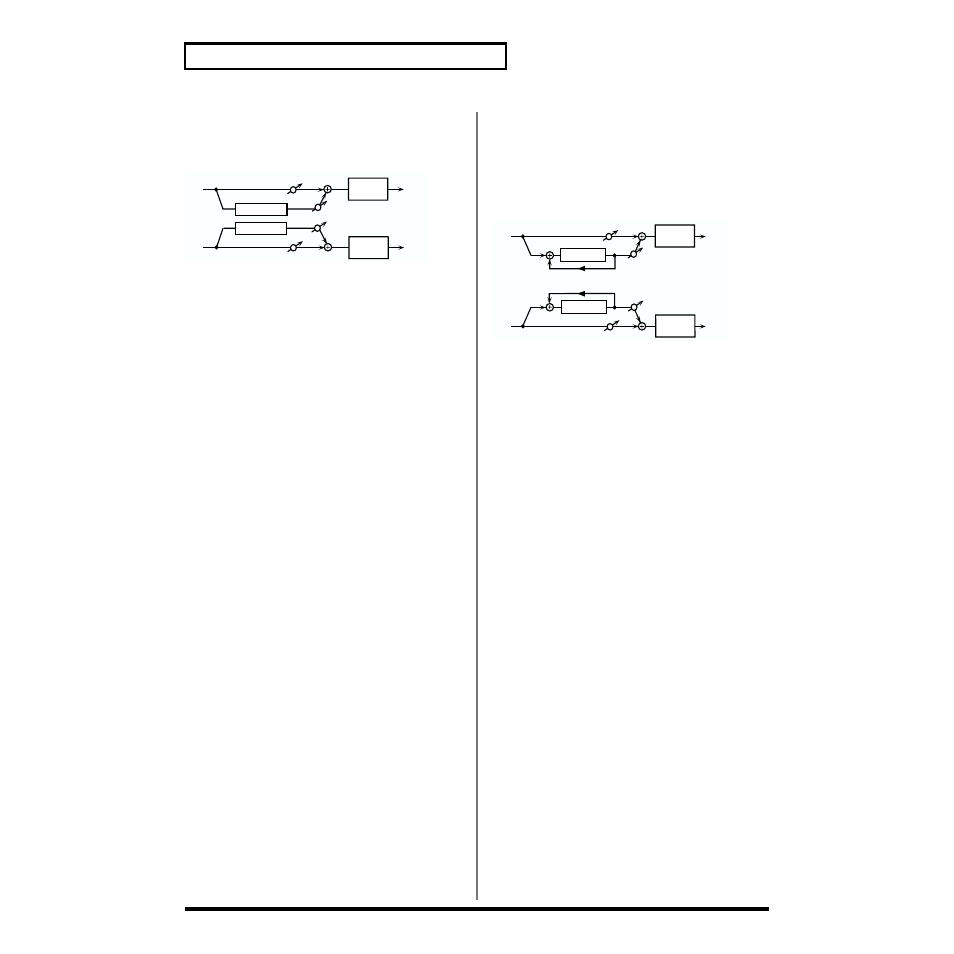

fig.2-17
Pre Dly (Pre Delay Time)
Adjust the time delay from when the direct sound begins
until the processed sound is heard.
Rate #
Adjust the rate of modulation.
Depth
Adjust the depth of modulation.
Phase
Adjust the spatial spread of the sound.
Filter (Filter Type)
Select the type of filter.
OFF: a filter will not be used
LPF: cut the frequency range above the cutoff frequency
HPF: cut the frequency range below the cutoff frequency
Cutoff (Cutoff Frequency)
Adjust the basic frequency of the filter.
LowGain
Adjust the gain of the low frequency range.
Hi Gain
Adjust the gain of the high frequency range.
Balance (Effect Balance) #
Adjust the volume balance between the direct sound and the
chorus sound. With a setting of D100:0W only the direct
sound will be output, and with a setting of D0:100W only the
chorus sound will be output.
Level (Output Level)
Adjust the output level.
15: STEREO FLANGER
This is a stereo flanger. (The LFO has the same phase for left
and right.) It produces a metallic resonance that rises and
falls like a jet airplane taking off or landing. A filter is
provided so that you can adjust the timbre of the flanged
sound.
fig.2-18
Pre Dly (Pre Delay Time)
Adjust the time delay from when the direct sound begins
until the flanger sound is heard.
Rate #
Adjust the rate of modulation.
Depth
Adjust the depth of modulation.
Fbk (Feedback Level) #
Adjust the amount (%) of the processed sound that is
returned (fed back) into the input. Positive (+) settings will
return the sound in phase, and negative (-) settings will
return the sound in reverse phase.
Phase
Adjust the spatial spread of the sound.
Filter Type
Select the type of filter.
OFF: a filter will not be used
LPF: cut the frequency range above the cutoff frequency
HPF: cut the frequency range below the cutoff frequency
Cutoff (Cutoff Frequency)
Adjust the basic frequency of the filter.
LowGain
Adjust the gain of the low frequency range.
Hi Gain
Adjust the gain of the high frequency range.
Balance (Effect Balance)
Adjust the volume balance between the direct sound and the
L in
R in
Chorus
Chorus
L out
R out
2-Band
EQ
2-Band
EQ
Balance W
Balance W
Balance D
Balance D
R in R out
L in L out
Flanger
Feedback
Feedback
Flanger
Balance W
Balance D
Balance W
Balance D
2-Band
EQ
2-Band
EQ
