4.4 External Dimensions
4.4.1 External Dimensions of the Emulation Pod

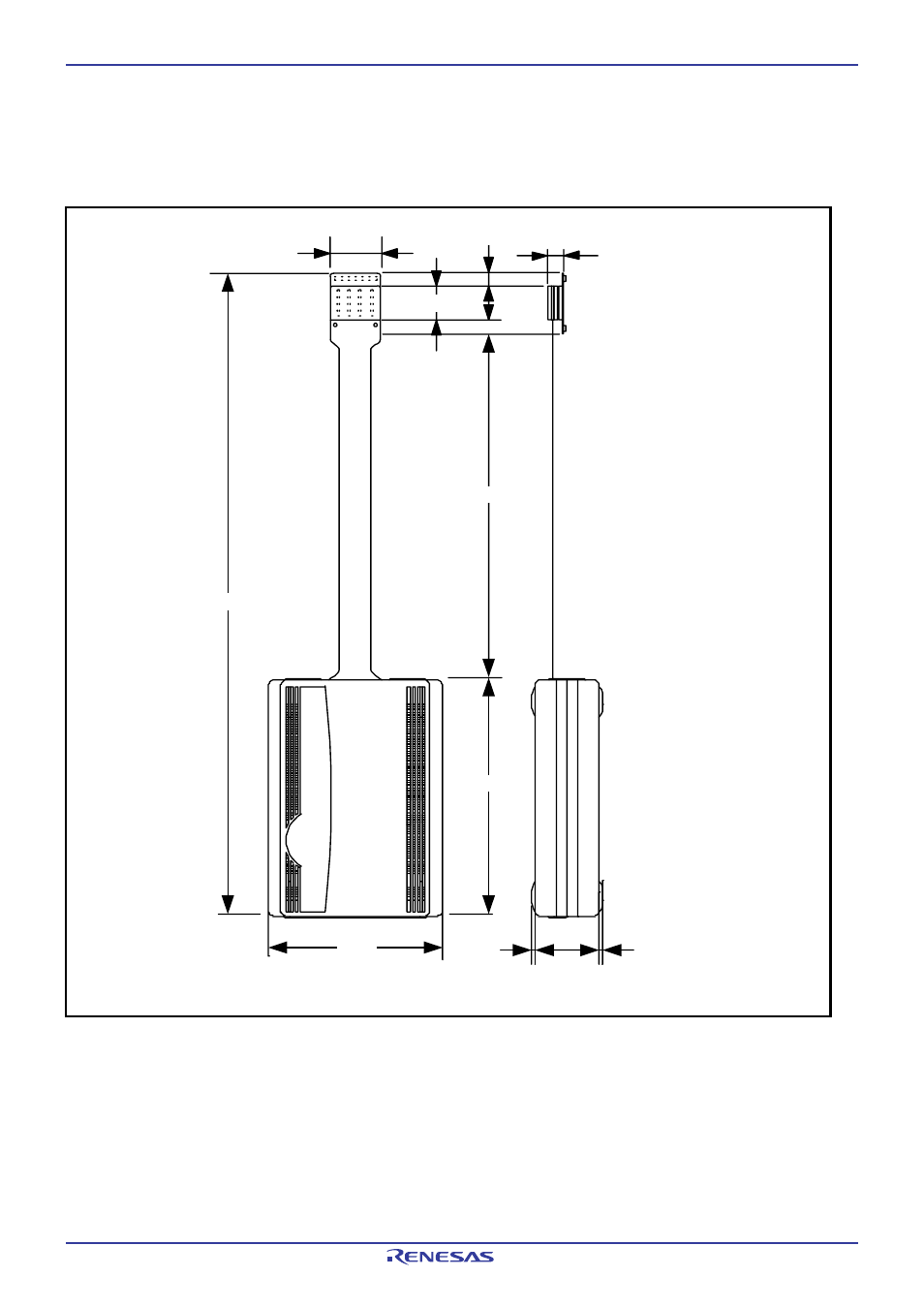

Figure 4.2 shows external dimensions of the M306H7T3-RPD-E.
Unit: mm
Figure 4.2 External dimensions of the emulation pod
4 0 . 0
1 0 . 5
437.0
140.0
3.0
52.0
193 .0
189.0
11.0
33.0
3.0
11.0
