M306H7T3-RPD-E User’s Manual 1. Outline
REJ10J0964-0100 Rev.1.00 August 01, 2005 Page 16 of 88
1.3.2 Names and Functions of the PC4701 Front Panel LEDs

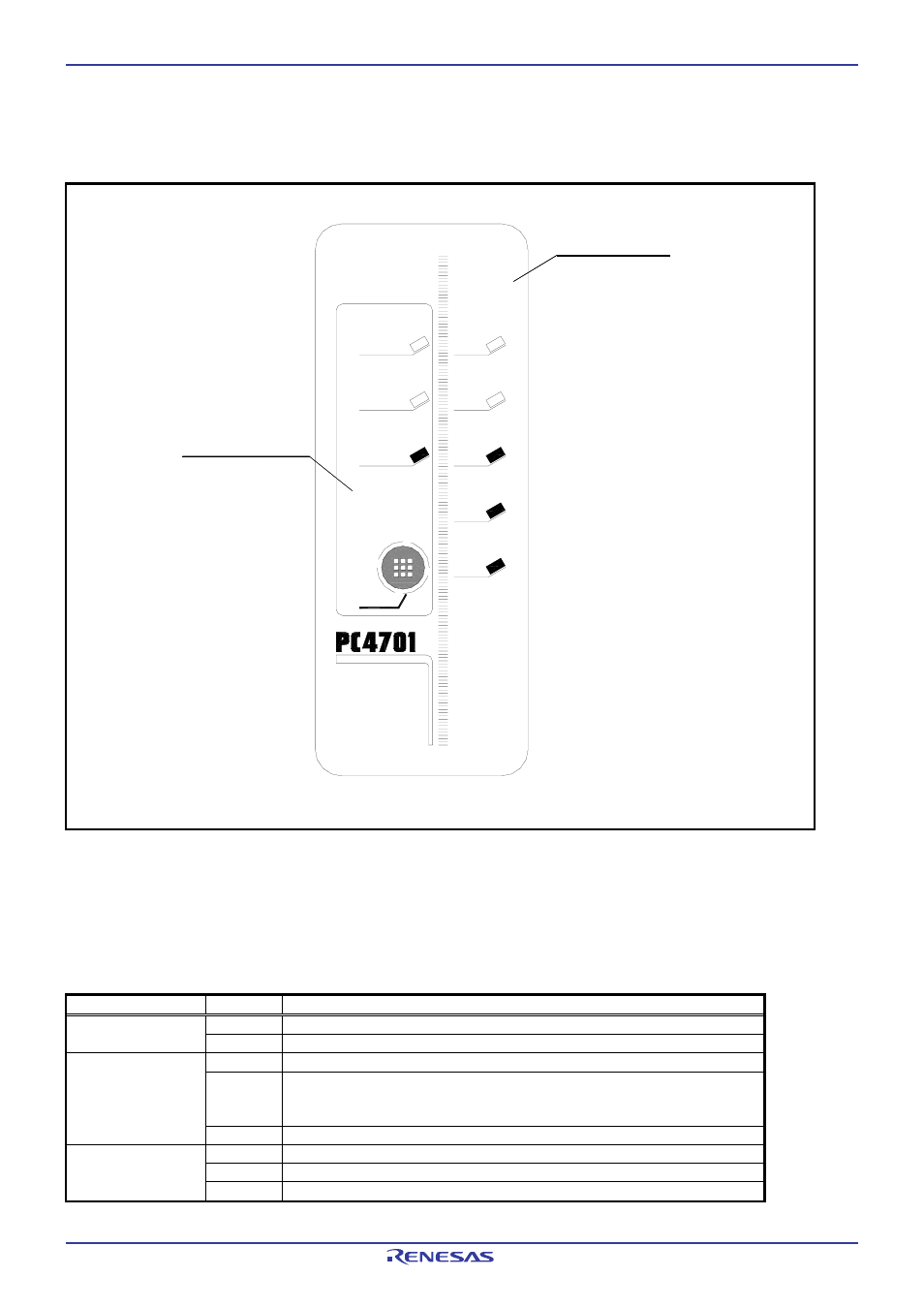

Figure 1.2 shows the names of the LEDs on the front panel of the emulator.
Figure 1.2 Names of the LEDs on the front panel of the PC4701
(1) System Status LEDs
The system status LEDs indicate the emulator PC4701's power supply, firmware operating status, etc. Table 1.3 lists the
definition of each system status LED.
Table 1.3 Definitions of the system status LEDs
Name Status Meaning
ON Emulator system power supply is turned ON.
POWER
OFF Emulator system power supply is turned OFF.
ON Emulator system is operating normally.
Flashing
Special mode (maintenance mode) for downloading firmware. The
emulator system does not operate except for downloading firmware and
the self-check.
SAFE
OFF Emulator system is not operating normally (system status error).
ON Emulator system is not operating normally.
Flashing Downloading firmware. ERROR
ON Emulator system is operating normally.
TARGET
STATUS OF
Target status LEDs
System status LEDs
RESET
HALT
STATUS OF
ERROR
POWER
SAFE
RUN
RESET
POWER
CLOCK
EMULATOR
PERFORMANCE
HIGH
SYSTEM
