M306H7T3-RPD-E User’s Manual 3. Usage (How to Use the Emulator Debugger)
REJ10J0964-0100 Rev.1.00 August 01, 2005 Page 50 of 88

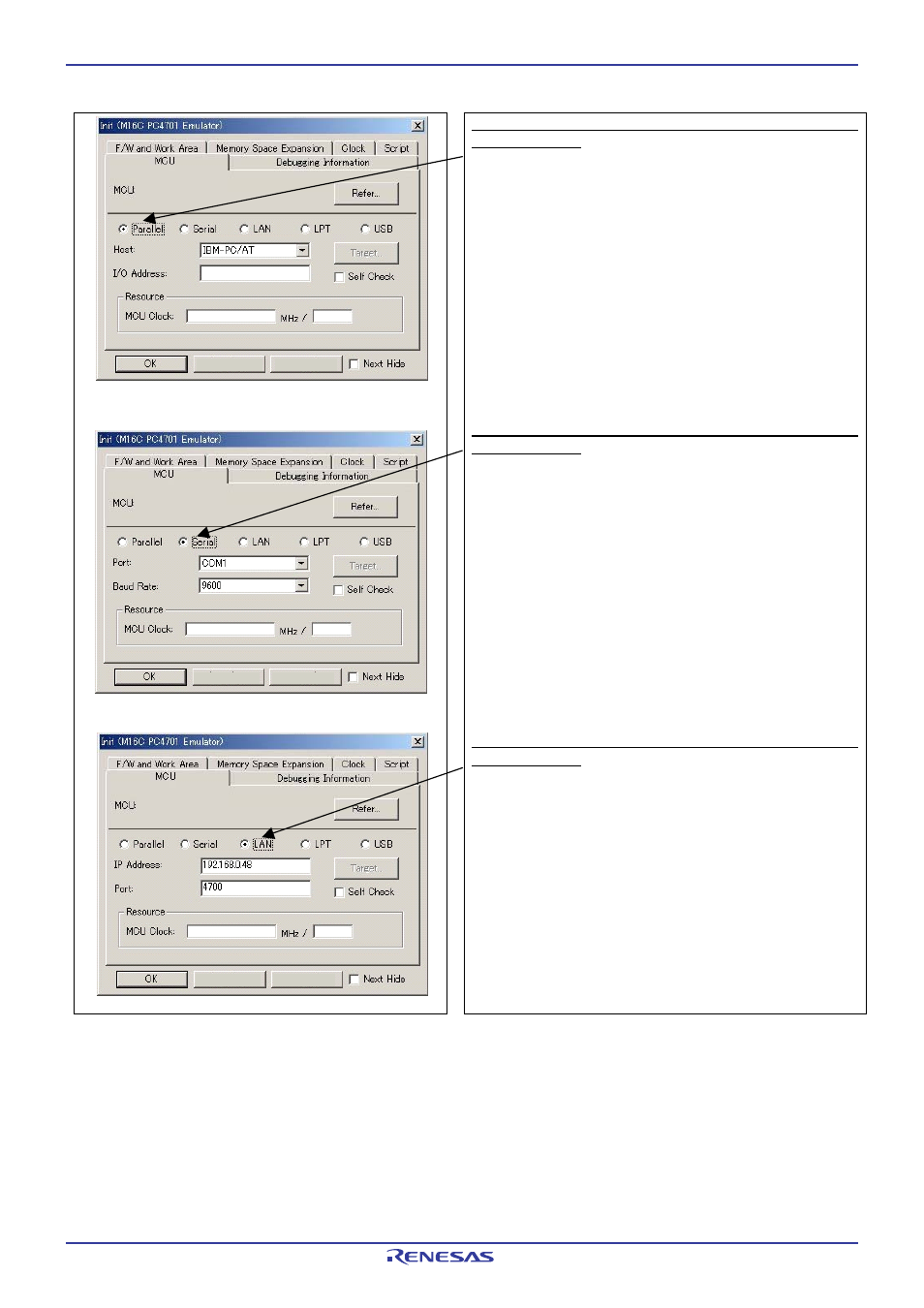

2) Specifying the communication interface
Specifying the communication interface (Parallel
communication)
- In case where the parallel communication is set up, click the radio button
“Parallel” of MCU tab.
- For the host area, only IBM-PC/AT can be designated.
- Set the I/O address value that was set up with the special interface board
PCA4202G02 to the I/O address area.
- Input the I/O address in hexadecimal
- For I/O address setting of PCA4202G02, refer to the “PCA4202G02
Instruction Manual”.
Specifying the communication interface (Serial
communication)
- For connection with serial communication, click the radio button “Serial”
of MCU tab.
- Specify the communication port of serial interface used to the port area
and the baud rate to the baud rate area.
Specifying the communication interface (LAN
communication)
- For selecting the LAN communication, click the radio button “LAN” of
the MCU tab.。
- Specify the IP address of the emulator to the IP address area.
- Specify the IP address of the emulator at the IP address area. Specify the
IP address by one byte of decimal number separating each four bytes with
a period.
- Specify the port number at the Port area.
