M306H7T3-RPD-E User’s Manual 2. Setup
REJ10J0964-0100 Rev.1.00 August 01, 2005 Page 30 of 88

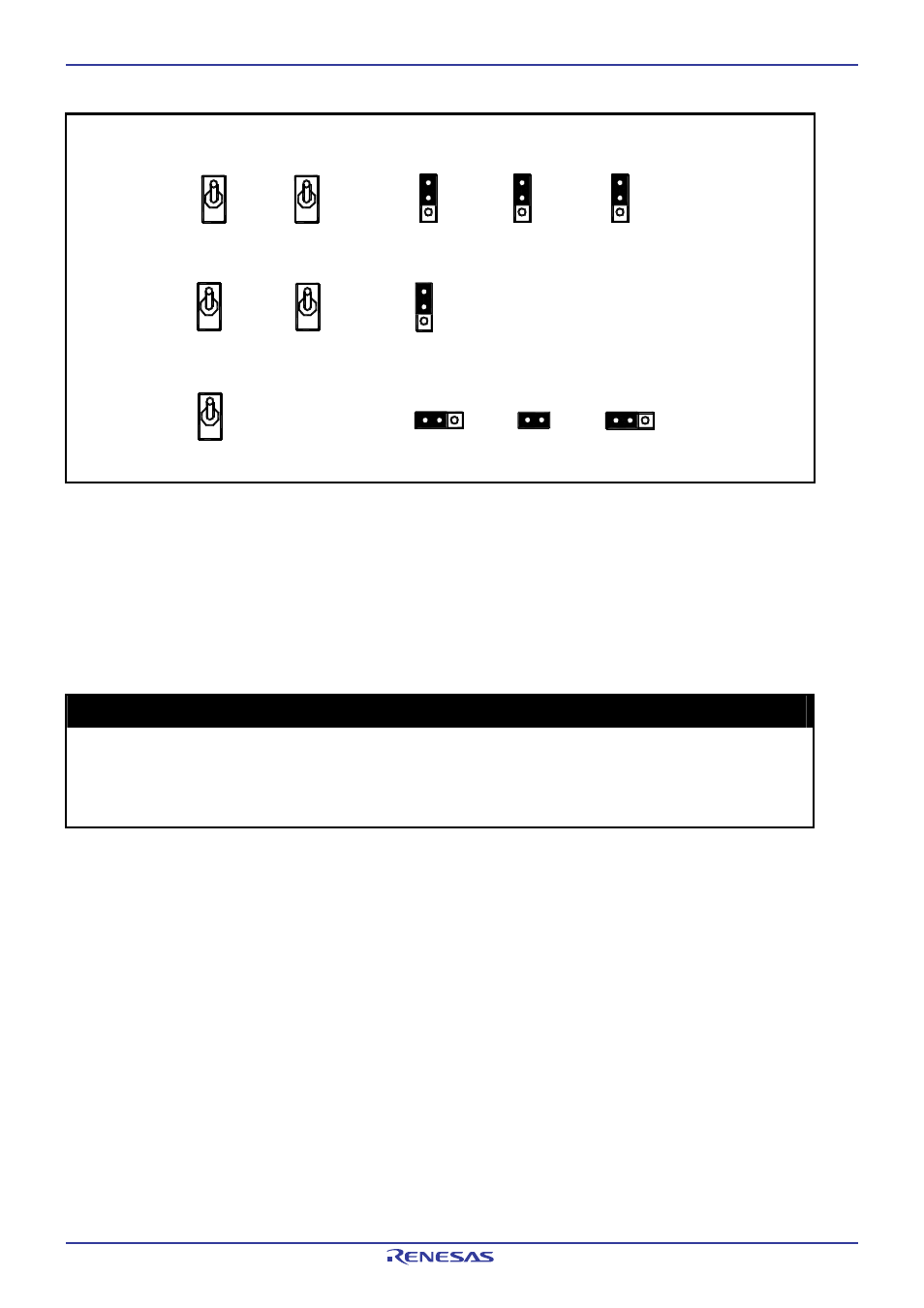

Figure 2.8 Switch settings for the self-check (factory-settings)
2.7.2 If an Error is Detected in the Self-check
If the self-check does not result normally (system status error or target status error in Figure 2.7), check the following.
Whether the emulation pod and PC4701 are connected properly
Whether the proper firmware has been downloaded
Whether the switch settings of this product are the factory-settings
IMPORTANT
Notes on Self-check:
Perform the self-check while not connecting the user system.
If the self-check does not result normally (excluding user system error), the emulation pod may be
damaged. Then contact your local distributor.
SW1 SW2
SW4 SW3
SW5
OPEN
L
H
OPEN
P87
Xcin
JC1_R
FLX
INT
VDD2 V50/TVDD V50 TVDD
FLX
INT
INT
FLX
INT
FLX
JP1 JP2 JP3
JP4
JP5 JP6 JP7
L
H
Xout
OPEN
OPEN
P86/
Xcout
