M306H7T3-RPD-E User’s Manual 2. Setup
REJ10J0964-0100 Rev.1.00 August 01, 2005 Page 32 of 88
2.8.1 Connecting to a 100-pin LCC socket
Figure 2.10 shows how to connect a 100-pin LCC socket (IC61-1004-051 of Yamaichi Electronics Co., Ltd.) on the user
system to the M30800T-PTC (included).
(1) Attach the 100-pin LCC socket to the user system.
(2) Attach the CN2 side of the M30800T-PTC to the CN2 side of the FLX160-PRB.
(3) Attach the M30800T-PTC to the 100-pin LCC socket.

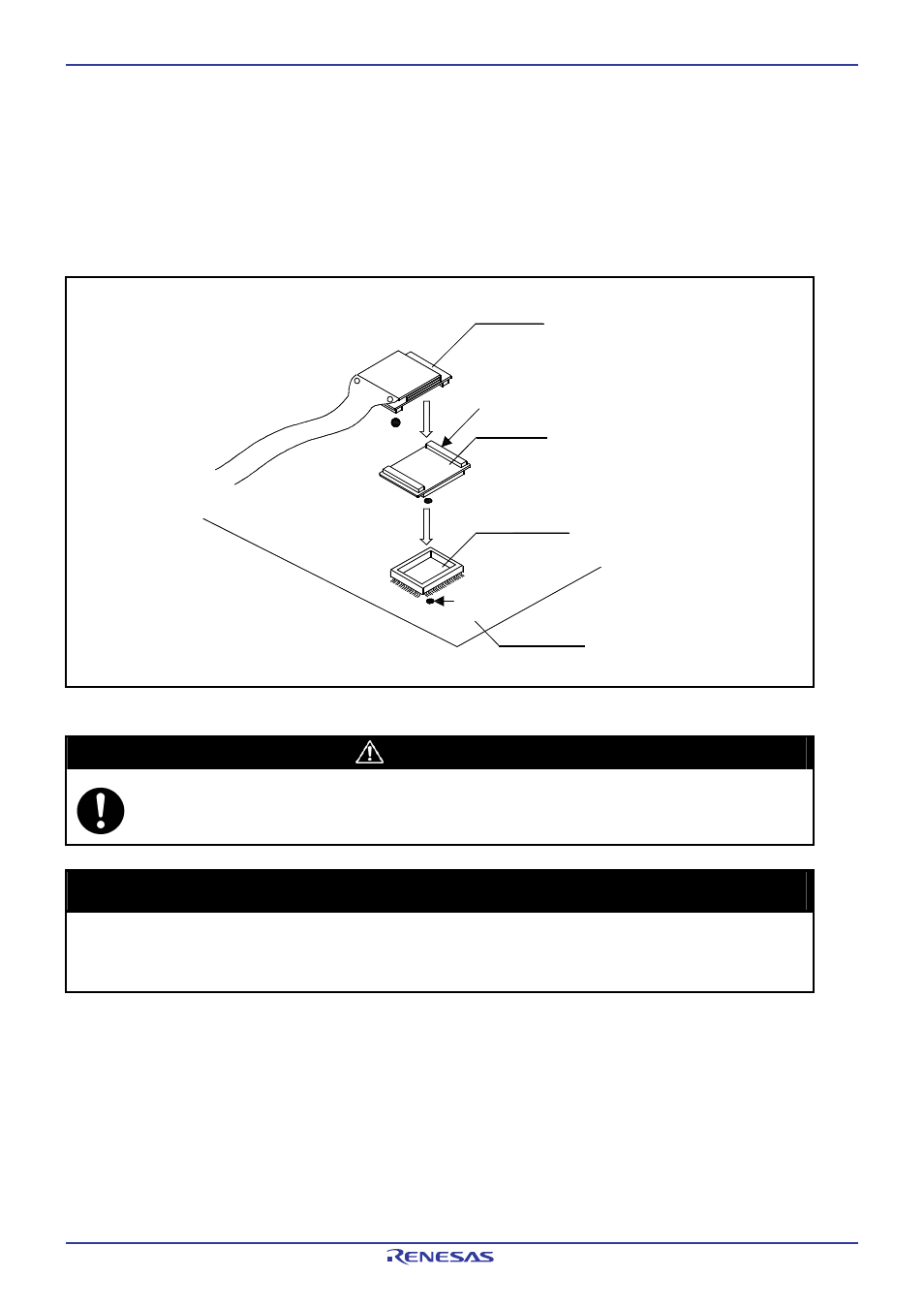

Figure 2.10 Connecting to a 100-pin LCC socket
CAUTION
Note on Connecting the User System:
Take care not to attach the converter board in a wrong direction. It may cause a fatal damage to the
emulator or user system.
IMPORTANT
Notes on Connectors of Converter Boards:
The connectors of the M30800T-PTC are guaranteed for only 50 insertion/removal iterations.
For purchasing the IC61-1004-051 or for technical information, contact Yamaichi Electronics Co., Ltd.
100-pin LCC socket
CN2 side
(1)
No.1 pin
(2)
M30800T-PTC
FLX160-PRB
User system
