M306H7T3-RPD-E User’s Manual 2. Setup
REJ10J0964-0100 Rev.1.00 August 01, 2005 Page 33 of 88
2.8.2 Connecting to a 100-pin 0.65-mm-pitch Foot Pattern (Part 1)
Figure 2.11 shows how to connect a 100-pin 0.65-mm-pitch foot pattern on the user system to the M3T-DIRECT100S (not
included), and here following is its procedure.
For details on the M3T-100LCC-DMS (not included) and M3T- DIRECT100S (not included), refer to each user's manual.
(1) Attach the M3T- DIRECT100S to the user system.
(2) Attach the M3T-100LCC-DMS to the M3T-DIRECT100S.
(3) Attach the CN2 side of the M30800T-PTC to the CN2 side of the FLX160-PRB.
(4) Attach the M30800T-PTC to the M3T-100LCC-DMS

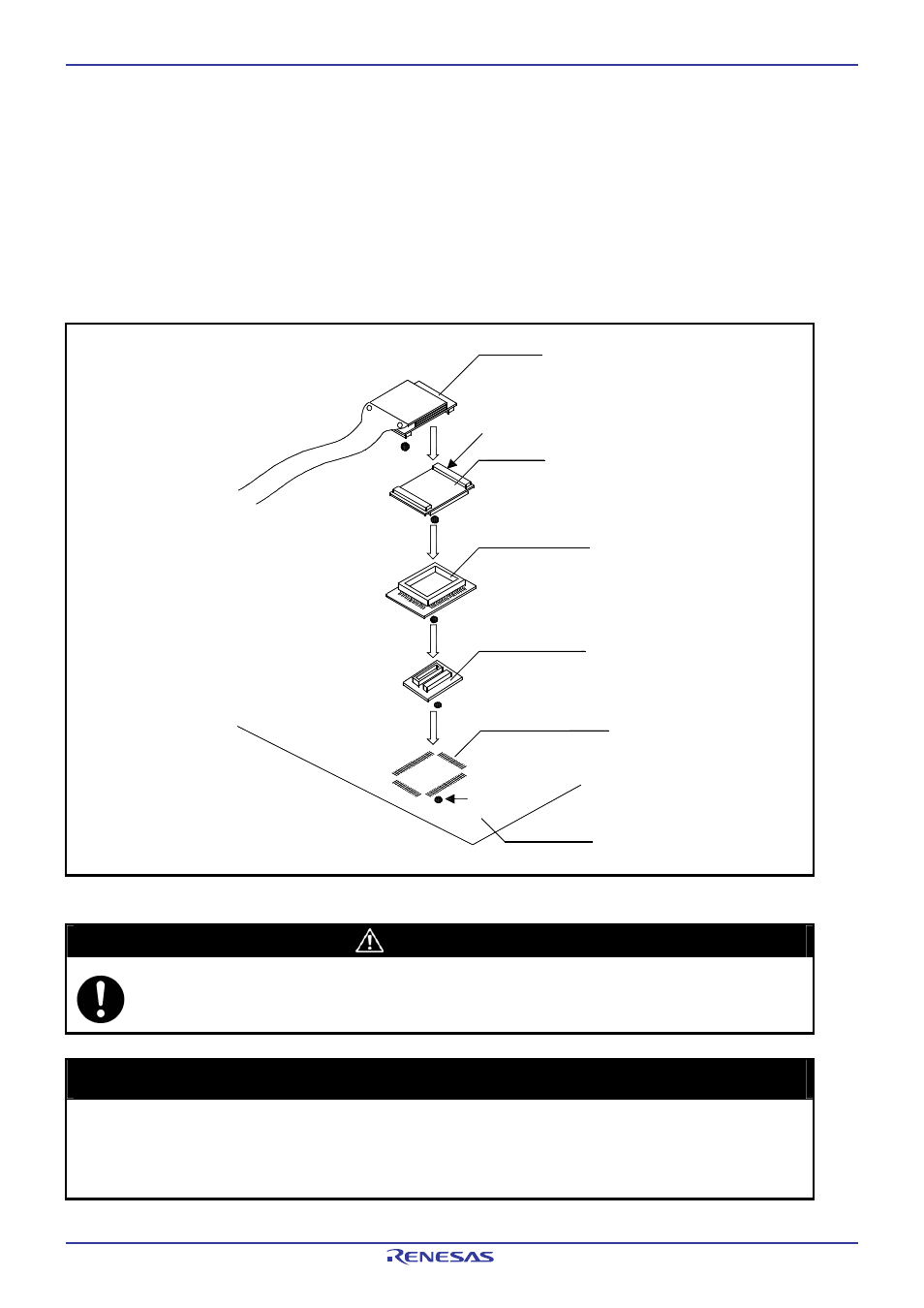

Figure 2.11 Connecting to a 100-pin 0.65-mm-pitch foot pattern (1/3)
CAUTION
Note on Connecting the User System:
Take care not to attach the converter board in a wrong direction. It may cause a fatal damage to the
emulator or user system.
IMPORTANT
Notes on Connectors of Converter Boards:
The connectors of the M30800T-PTC are guaranteed for only 50 insertion/removal iterations.
The connectors of the M3T-100LCC-DMS and M3T-DIRECT100S are guaranteed for only 20
insertion/removal iterations.
M3T-100LCC-DMS
(not inclueded)
CN2 side
(3)
(4)
M30800T-PTC
(2)
(1)
100-pin 0.65-mm-pitch
(PRQP0100JB-A) foot pattern
No.1 pin
M3T-DIRECT100S
(not inclueded)
FLX160-PRB
User system
