M306H7T3-RPD-E User’s Manual 2. Setup
REJ10J0964-0100 Rev.1.00 August 01, 2005 Page 31 of 88
2.8 Connecting the User System
Connect the emulation pod to the user system as shown in Figure 2.9.

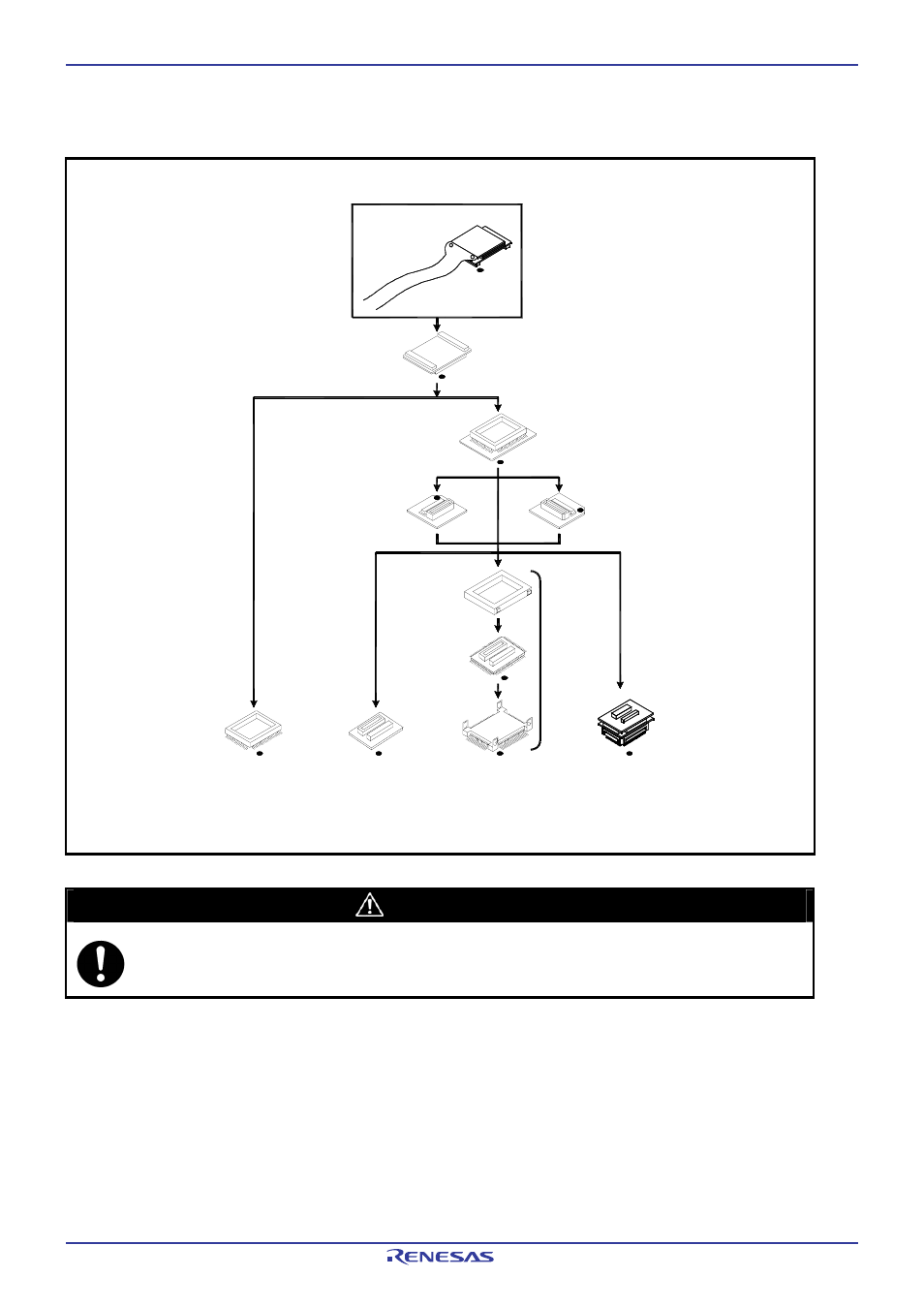

Figure 2.9 Connecting the user system
CAUTION
Note on Connecting the User System:
Take care not to attach the converter board in a wrong direction. It may cause a fatal damage to the
emulator or user system.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK and TQSOCKET are trademarks of Tokyo Eletech
Corporation.
M3T-100LCC-DMS
(not included)
M3T-FLX100-T
(not included)
M3T-FLX100-R
(not included)
●: No. 1 pin
* These three products are available in one package .
*1
LCC socket
100-pin LCC
(included)
M3T-DIRECT100S
100-pin QFP
(not included)
M3T-DUMMY100S
100-pin QFP
(not included)
M3T-FLX-100NRB
100-pin QFP
(not included)
(included)
M30800T-PTC
Tip of emulation pod probe
