M306H7T3-RPD-E User’s Manual 3. Usage (How to Use the Emulator Debugger)
REJ10J0964-0100 Rev.1.00 August 01, 2005 Page 68 of 88

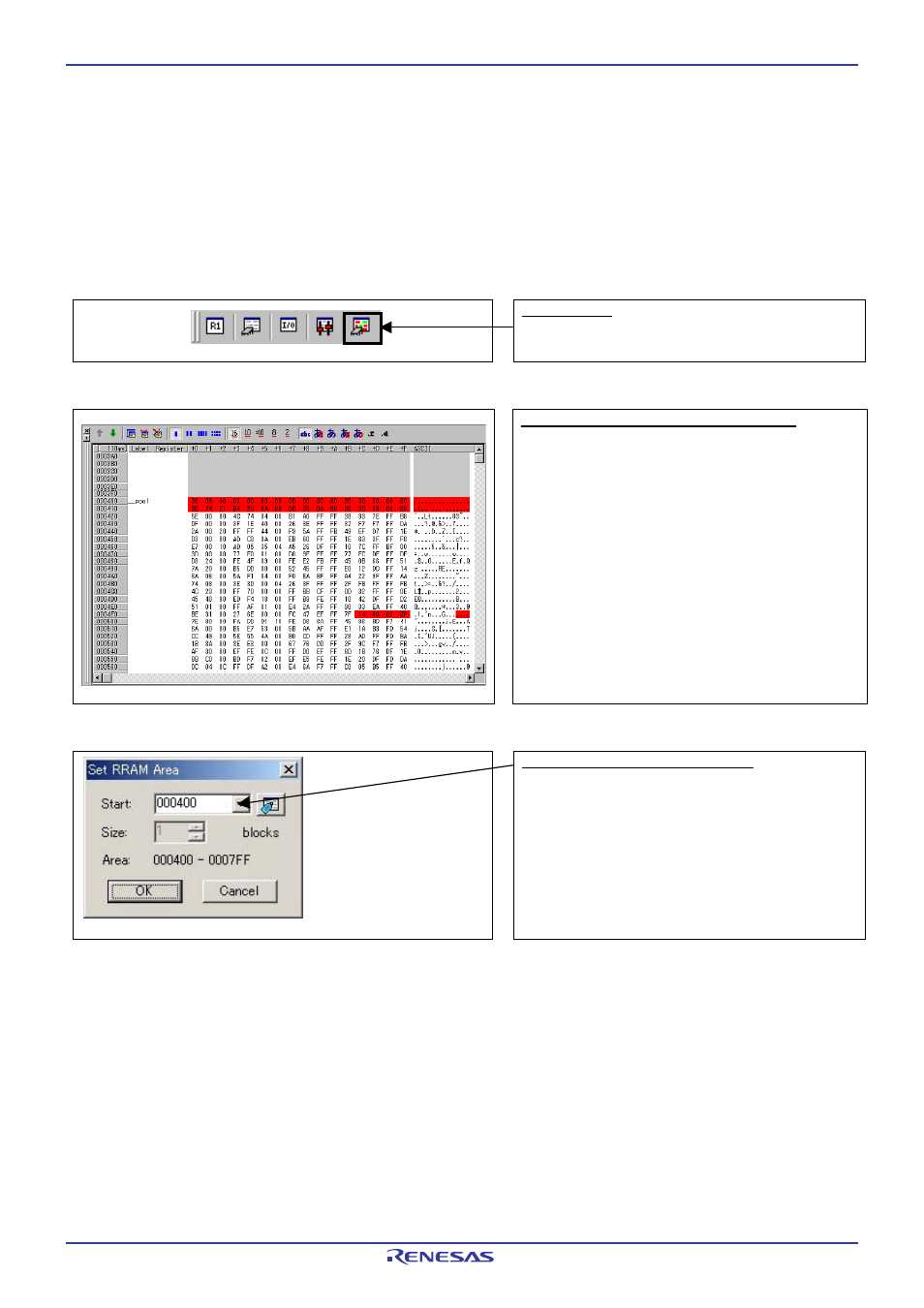

3.8 RAM Monitor Window
This function makes it possible to make reference to the changes in memory contents without impairing the real-time
performance for target program execution. The emulator PC4701 system is provided with the 1K-byte RAM monitoring area,
which can be arranged in the 1K-byte space from any continuous address.
(1) RAM monitor window
1) RAM monitor window
RAM monitor
Clicking this button opens the RAM monitor window.
2) RAM monitor display area
Changing the RAM monitor display area
This window shows changes of memory contents while the user
program is executed. This is accomplished by using the real-time
RAM monitor function, and the memory contents corresponding to
the RAM monitor area are displayed in dump form. The memory
contents displayed here are updated at given intervals (by default,
every 100 ms) during user program execution.
The background colors of the data display and the code display
sections change with the access attribute as described below.
- Green : Addresses accessed for read
- Red
: Addresses accessed for write
- White : Addresses not accessed
The background colors can be changed as necessary.
3) RAM monitor area setting dialog box
RAM monitor area setting window
You can set the start address of the RAM area to be monitored.
The 1 KB of the arbitrary continuous space form the specified start
address can be displayed.
