M306H7T3-RPD-E User’s Manual 3. Usage (How to Use the Emulator Debugger)
REJ10J0964-0100 Rev.1.00 August 01, 2005 Page 53 of 88

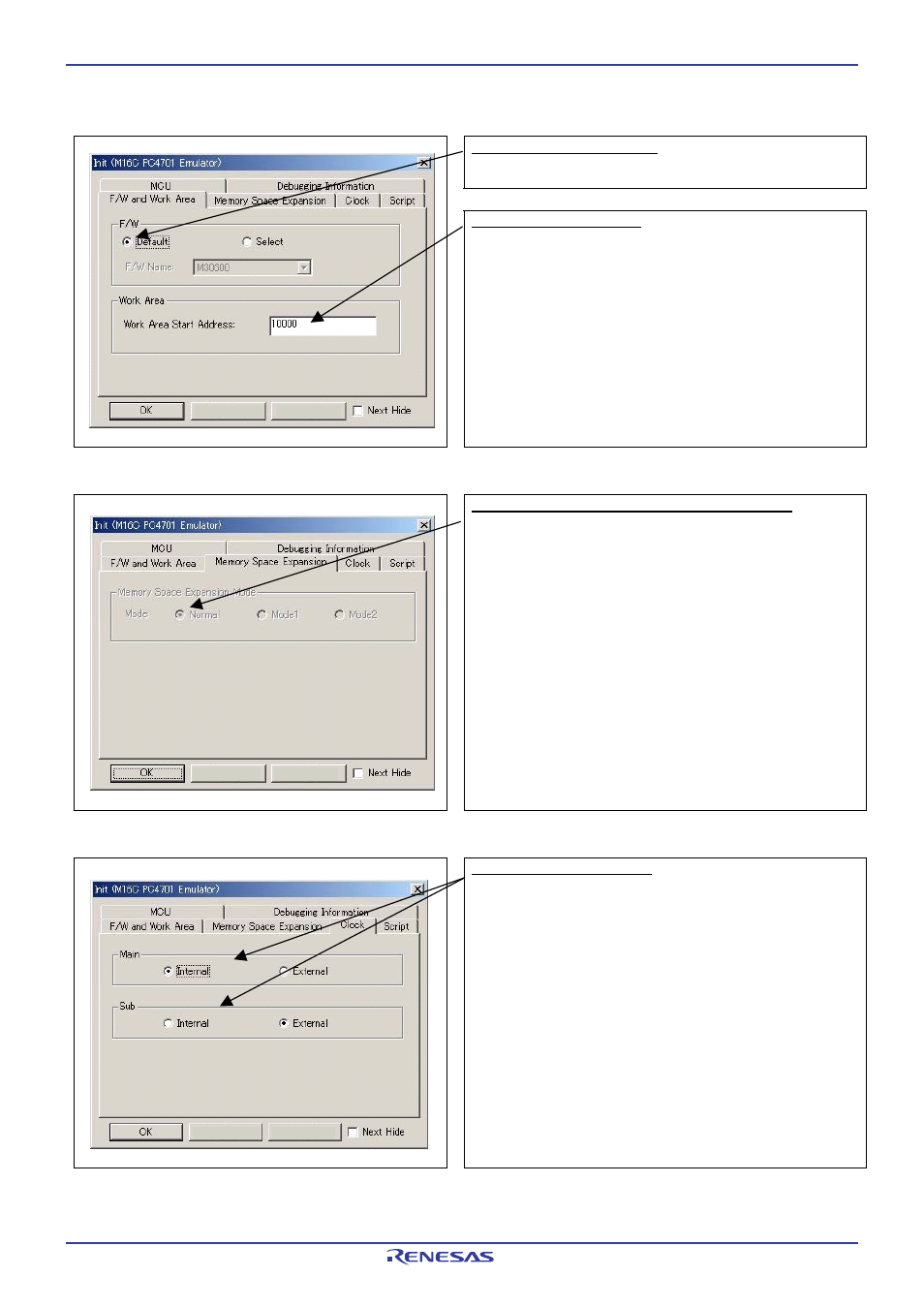

(3) Work area tab
1) Specifying the firmware
Specifying the firmware file
For the radio button of the firmware group box, be sure to click “Default”.
Specifying the work area
Specifies the top address which is used as a work area at the start address
area of the work area group box.
- With the M306H7T3-RPD-E, set the work area address at 10000h.
- The top address of the work area is set to 2C00h by default.
(4) Memory space expansion tab
Specifying the memory space expansion mode
Because the M306H7T3-RPD-E supports single-chip mode, only the radio
button “Normal” can be selected.
(5) Clock tab
Specifying the target clock
Specify the clock sources supplied to the MCU (main clock and sub clock).
Select the appropriate clock sources according to the clock used by your
target MCU.
Internal
Emulator’s internal clock
External
User system clock
